88 S130 Operation & Maintenance Manual
ATTACHMENTS (CONT’D)
Installing And Removing The Attachment (Hand
Lever Bob-Tach) (Cont’d)
Installing (Cont’d)

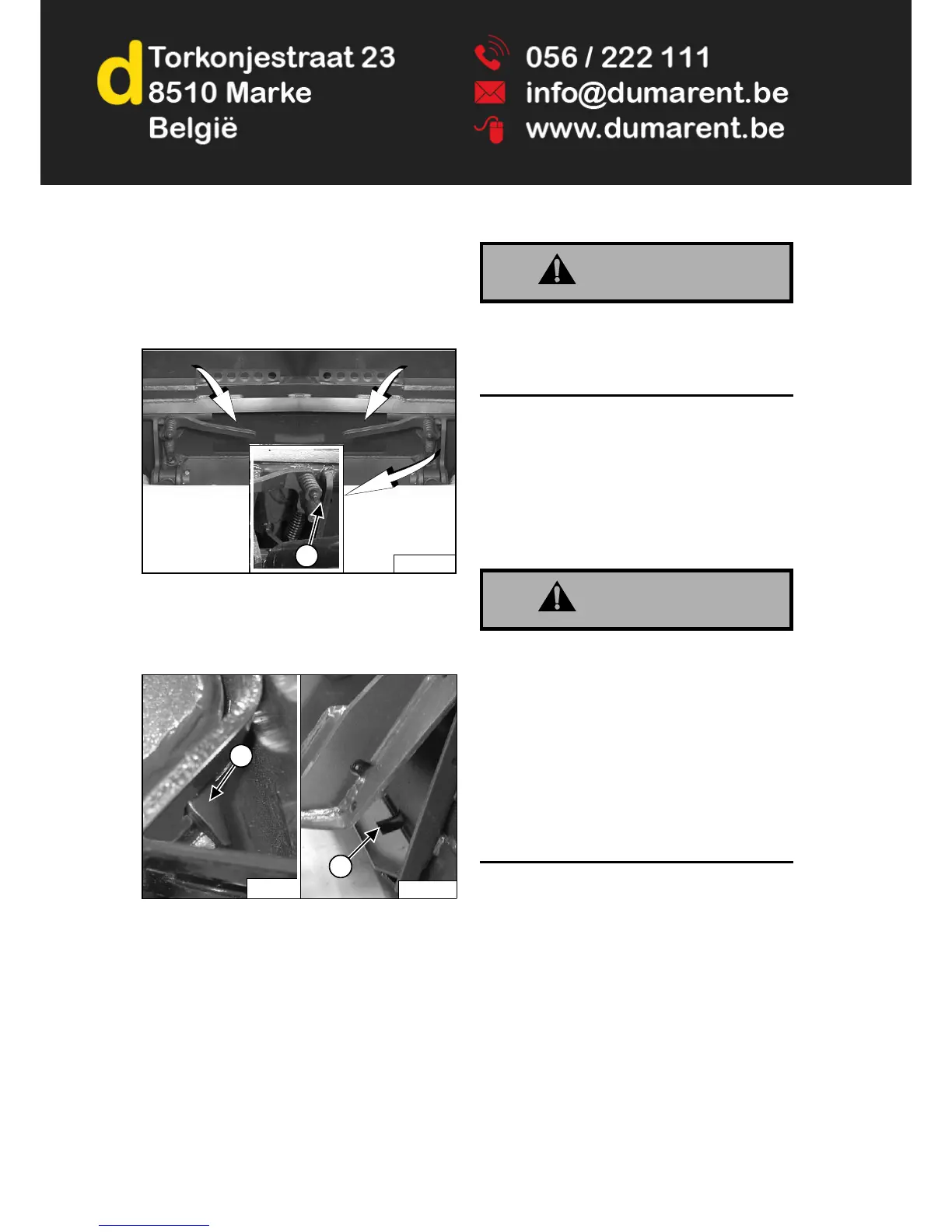

Figure 111
Push down on the Bob-Tach levers until they are fully
engaged in the locked position (Item 1) [Figure 111]
(wedges fully extended).
Figure 112
The wedges (Item 1) must extend through the holes (Item
2) [Figure 112] in the mounting frame of the bucket (or
other attachment), securely fastening the bucket to the
Bob-Tach.
AVOID INJURY OR DEATH
The Bob-Tach wedges must extend through the
holes in the attachment mounting frame. Levers
must be fully down and locked. Failure to secure
wedges can allow attachment to come off.
W-2715-0208
Removing
Lower the lift arms and put the attachment flat on the
ground. Lower or close any hydraulic equipment, if
applicable.
Stop the engine and exit the loader. (See STOPPING
THE ENGINE AND LEAVING THE LOADER on Page
84.)
AVOID INJURY OR DEATH
Before you leave the operator’s seat:
• Lower the lift arms and put the attachment flat on
the ground.
• Stop the engine.
• Engage the parking brake.
• Raise the seat bar.
• Move all controls to the NEUTRAL / LOCKED
position to make sure the lift, tilt and traction
drive functions are deactivated.
The seat bar system must deactivate these functions
when the seat bar is up. See your Bobcat dealer for
service if controls do not deactivate.
W-2463-1110
Disconnect attachment electrical harness, water line and
hydraulic lines, if applicable, from the loader. (See
Relieve Auxiliary Hydraulic Pressure (Loader And
Attachment) on Page 69.)
