Bob-Tach levers have spring tension. Hold lever
tightly and release slowly. Failure to obey warning
can cause injury.
W-2054-1285
Enter the loader.
Perform the PRE-STARTING PROCEDURE. (See PRE-
STARTING PROCEDURE on Page 73.)
Start the engine, press the PRESS TO OPERATE
LOADER button and release the parking brake.

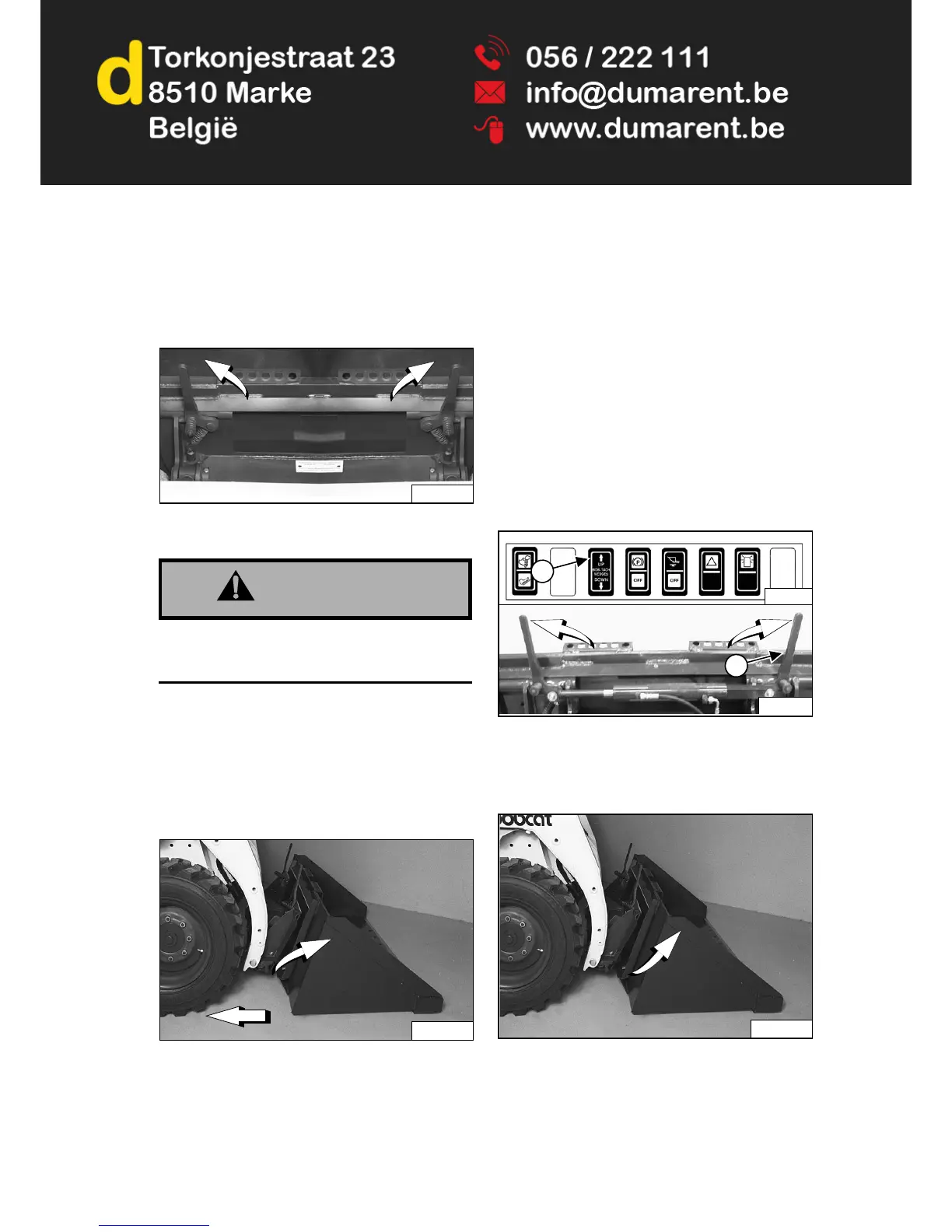

Figure 114
Tilt the Bob-Tach forward and move the loader backward,
away from the bucket or attachment [Figure 114].
Installing And Removing The Attachment (Power
Bob-Tach)
This machine can be equipped with a Power Bob-Tach.
Installing
The Bob-Tach is used for fast changing of buckets and
attachments. See the appropriate attachment Operation
& Maintenance Manual to install other attachments.
Perform the PRE-STARTING PROCEDURE. (See PRE-
STARTING PROCEDURE on Page 73.)
Start the engine, press the PRESS TO OPERATE
LOADER button and release the parking brake.
Lower the lift arms and tilt the Bob-Tach forward.
Figure 115
Push and hold BOB-TACH “WEDGES UP” switch (Item
1) (Front Panel) until levers (Item 2) [Figure 115] are in
unlocked position (wedges fully raised).
Figure 116
Drive the loader forward until the top edge of the Bob-
Tach is completely under the top flange of the bucket
[Figure 116] (or other attachment). Be sure the Bob-
Tach levers do not hit the bucket.
