94 S130 Operation & Maintenance Manual
OPERATING PROCEDURE (CONT’D)

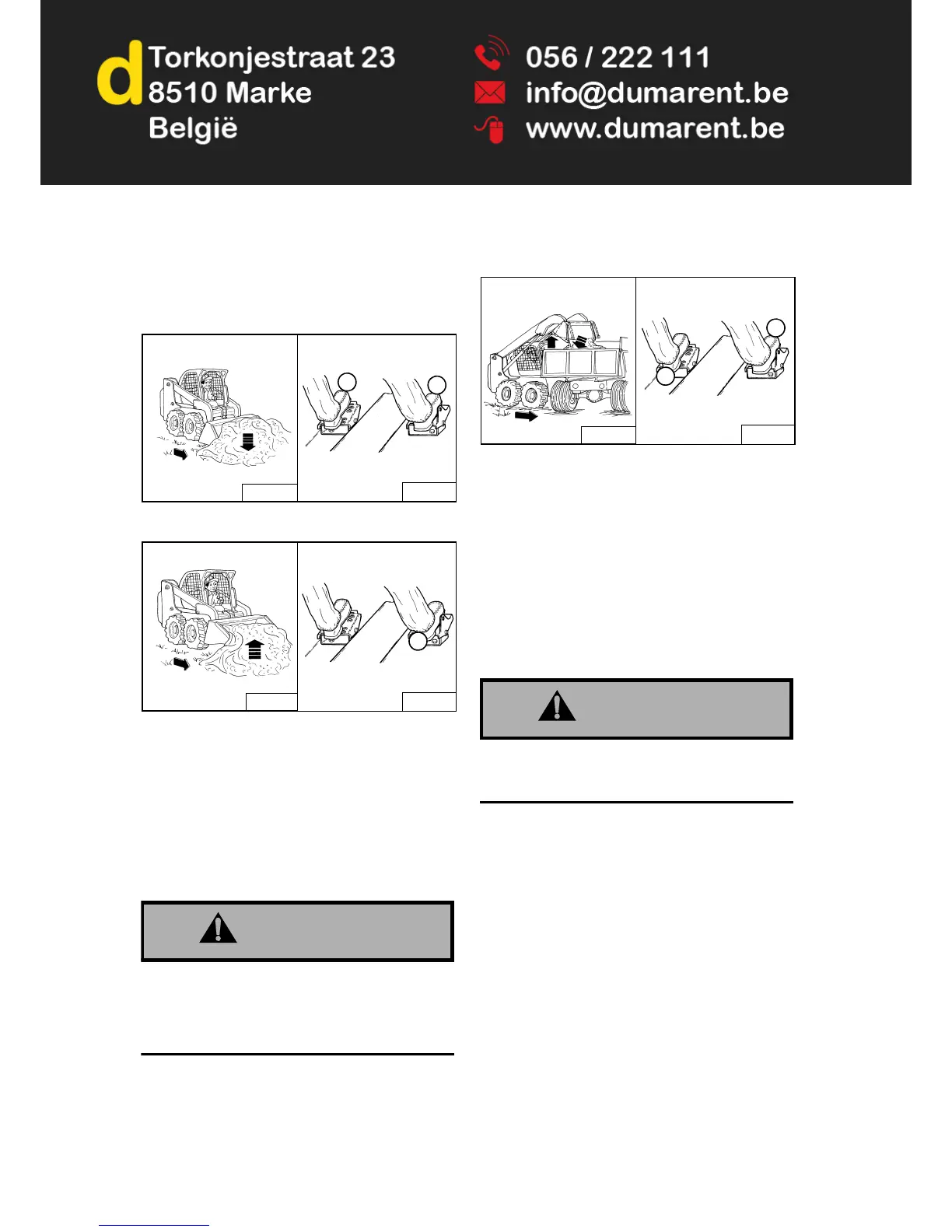

Filling And Emptying The Bucket (Foot Pedals)
Filling
Figure 125
Figure 126
Lower the lift arms all the way (Item 1) [Figure 125].
Tilt the bucket forward (Item 2) [Figure 125] until the
cutting edge of the bucket is on the ground.
Drive slowly forward into the material. Tilt the bucket
backward (Item 1) [Figure 126] all the way when the
bucket is full.
Drive backward away from the material.
Load, unload and turn on flat level ground. Do not
exceed Rated Operating Capacity (ROC) shown on
sign (decal) in cab. Failure to obey warnings can
cause the machine to tip or roll over and cause injury
or death.
W-2056-0903
Emptying
Figure 127
Keep the bucket low when moving to the area where you
want to empty the bucket.
Raise the lift arms (Item 1). Level the bucket (Item 2)
[Figure 127] while raising the lift arms to help prevent
material from falling off the back of the bucket.
Drive forward slowly until the bucket is over the top of the
truck box or bin.
Empty the bucket (Item 2) [Figure 127]. If all the material
is near the side of the truck or bin, use the bucket tilt to
move it to the other side.
Never dump over an obstruction, such as a post, that
can enter the operator cab. The machine could tip
forward and cause injury or death.
W-2057-0694
