95 S130 Operation & Maintenance Manual
OPERATING PROCEDURE (CONT’D)
Leveling The Ground Using Float (Foot Pedals)

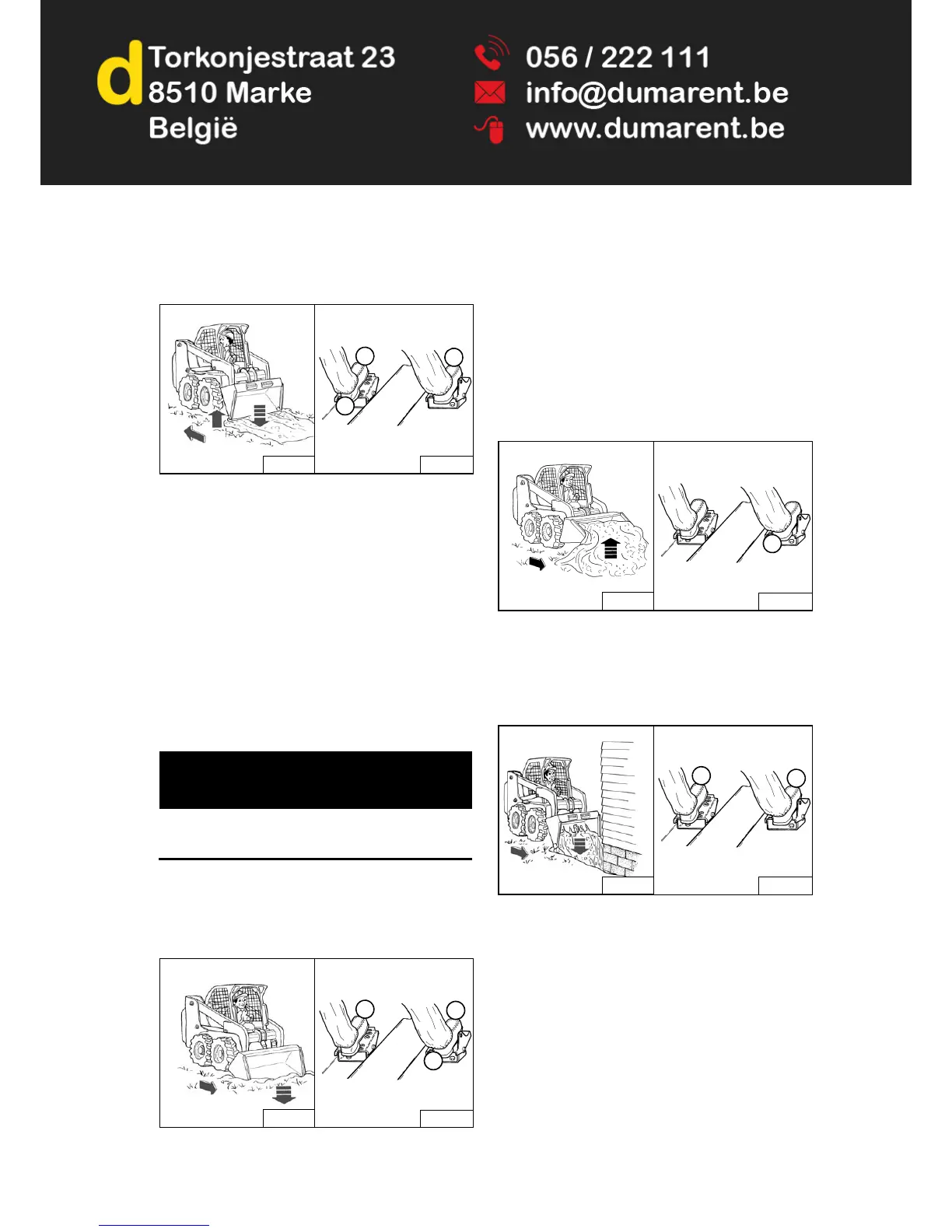

Figure 128
Put the lift arms in float position by pushing the pedal all
the way forward (Item 1) [Figure 128] until the pedal is
locked in the forward position.
Tilt the bucket forward (Item 2) [Figure 128] to change
the position of the cutting edge of the bucket.
With the bucket tilted farther forward, there is more force
on the cutting edge and more loose material can be
moved.
Drive backward to level loose material.
Push the bottom of the lift pedal (Item 3) [Figure 128] to
unlock the float position.
Never drive forward when the hydraulic control for
lift arms is in float position.
I-2005-1285
Digging And Filling A Hole (Foot Pedals)
Digging
Figure 129
Lower the lift arms all the way (Item 1). Put the cutting
edge of the bucket on the ground (Item 2) [Figure 129].
Drive forward slowly and continue to tilt the bucket down
(Item 2) [Figure 129] until it enters the ground.
Raise the cutting edge a small amount (Item 3) to
increase traction and keep an even digging depth.
Continue to drive forward until the bucket is full. When the
ground is hard, raise and lower the cutting edge of the
bucket (Items 2 and 3) [Figure 129] while driving forward
slowly.
Figure 130
Tilt the bucket backward (Item 1) [Figure 130] as far as it
will go when the bucket is full.
Filling
Figure 131
Lower the lift arms (Item 1) and put the cutting edge of
the bucket on the ground (Item 2) [Figure 131]. Drive
forward to the edge of the hole to push the material into
the hole.
Tilt the bucket forward (Item 2) [Figure 131] as soon as it
is past the edge of the hole.
If necessary, raise the lift arms to empty the bucket.
To Next Page
