S250 Bobcat Loader
PM-6 Operation & Maintenance Manual
LIFT ARM SUPPORT DEVICE
Installing The Lift Arm Support Device
WARNING
Never work on a machine with the lift arms up unless
the lift arms are secured by an approved lift arm
support device. Failure to use an approved lift arm
support device can allow the lift arms or attachment
to fall and cause injury or death.
W-2059-0598
WARNING
Service lift arm support device if damaged or if parts
are missing. Using a damaged lift arm support or
with missing parts can cause lift arms to drop
causing injury or death.
W-2271-1197

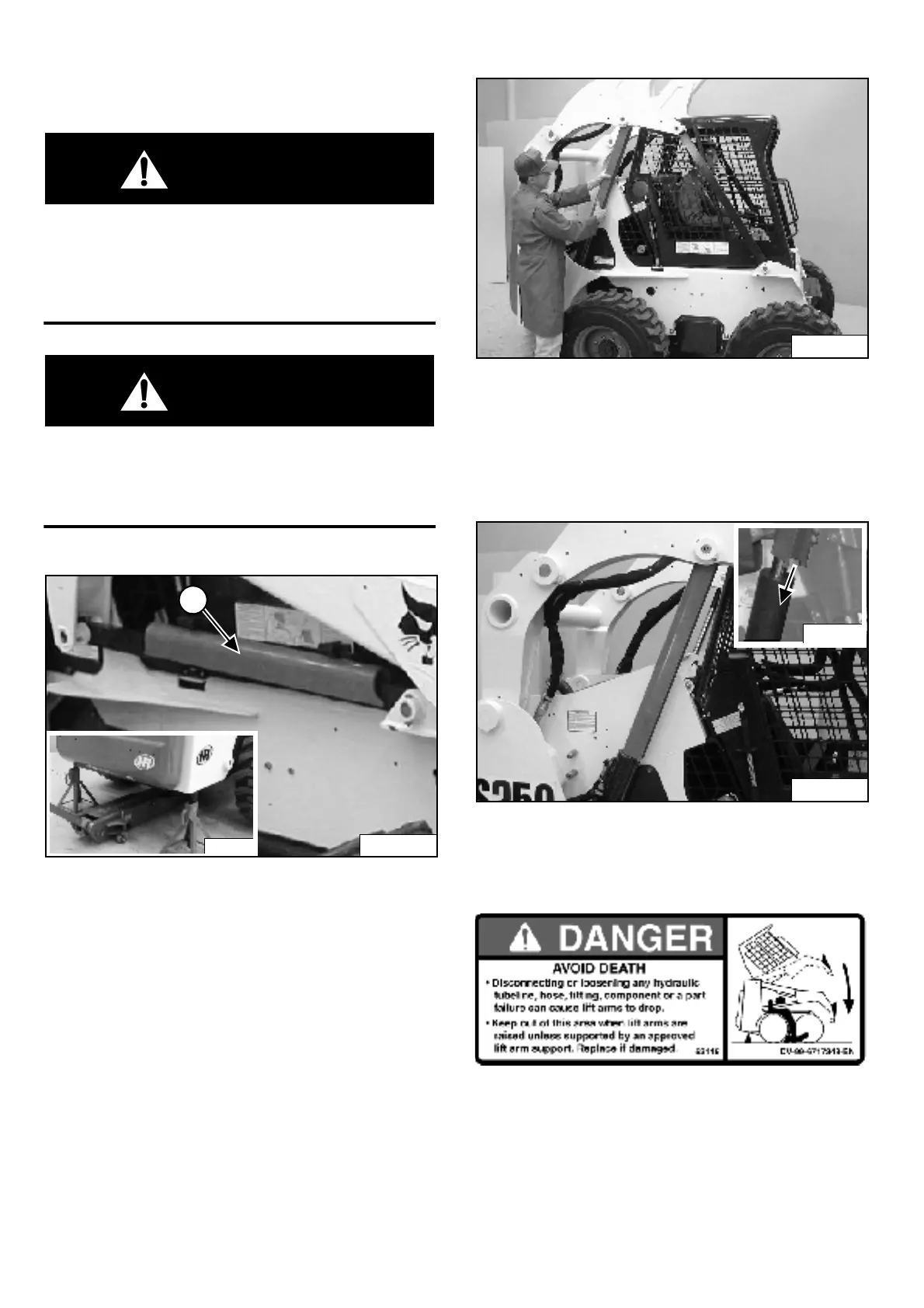

Figure PM-1
Put jackstands under the rear corners of the loader frame
(Inset) [Figure PM-1].
Remove the lift arm support device (Item 1)
[Figure PM-1] from the storage position.
The operator must stay in the operator seat with the seat
belt fastened and the seat bar lowered until the lift arm
support device is installed.
Start the engine and raise the lift arms all the way up.
Figure PM-2
Have a second person install the lift arm support device
over the rod of one of the lift cylinders [Figure PM-2].
The lift arm support device must be tight against the
cylinder rod.
Figure PM-3
Lower the lift arms slowly until the lift arm support device
is held between the lift arms and the lift cylinder
[Figure PM-3]. The tabs of the lift arm support device
must go under the cylinder (Inset) [Figure PM-3].
P-31266
P-31290
1
P-31264
P-31265
P-10136
