REAR DOOR

Opening And Closing The Rear Door

WARNING

AVOID INJURY OR DEATH

Never service or adjust the machine when the engine

is running unless instructed to do so in the manual.

W-2012-0497

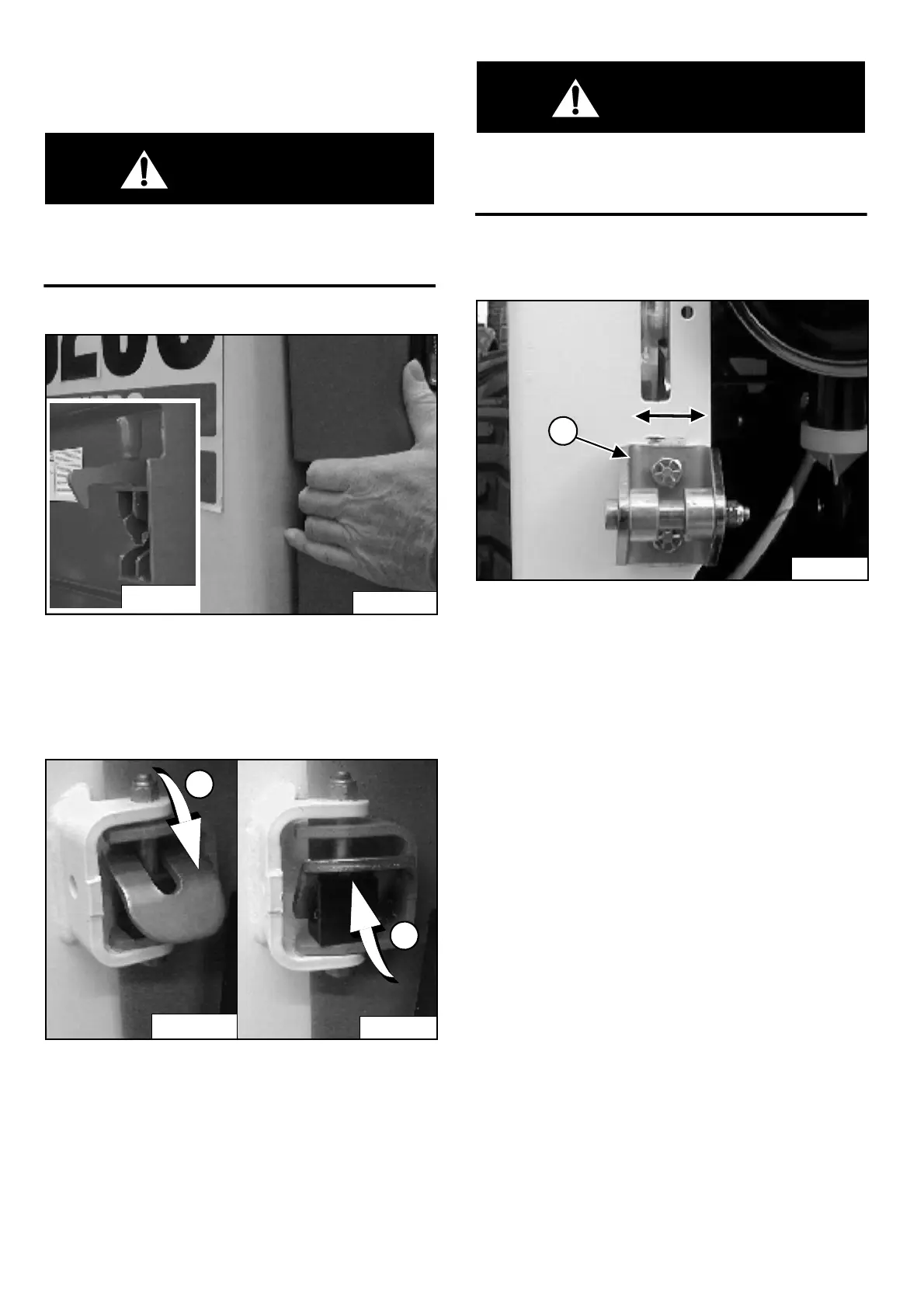

Figure PM-17

Reach into the slot in the rear door and pull the latch

handle [Figure PM-17].

Pull the rear door open.

Figure PM-18

Move the door stop into the engaged position (Item 1)

[Figure PM-18] to disengage the door stop and allow the

door to close.

Close the rear door.

WARNING

Keep the rear door closed when operating the

machine. Failure to do so could seriously injure a

bystander.

W-2020-1285

Adjusting The Rear Door

Figure PM-19

The door latch (Item 1) [Figure PM-19] can be adjusted

side to side for alignment with the door latch mechanism.

Close the rear door before operating the loader.
