110 S450 Operation & Maintenance Manual
ATTACHMENTS (CONT’D)
Installing And Removing The Attachment (Hand Lever Bob-Tach) (Cont’d)
Installing (Cont’d)

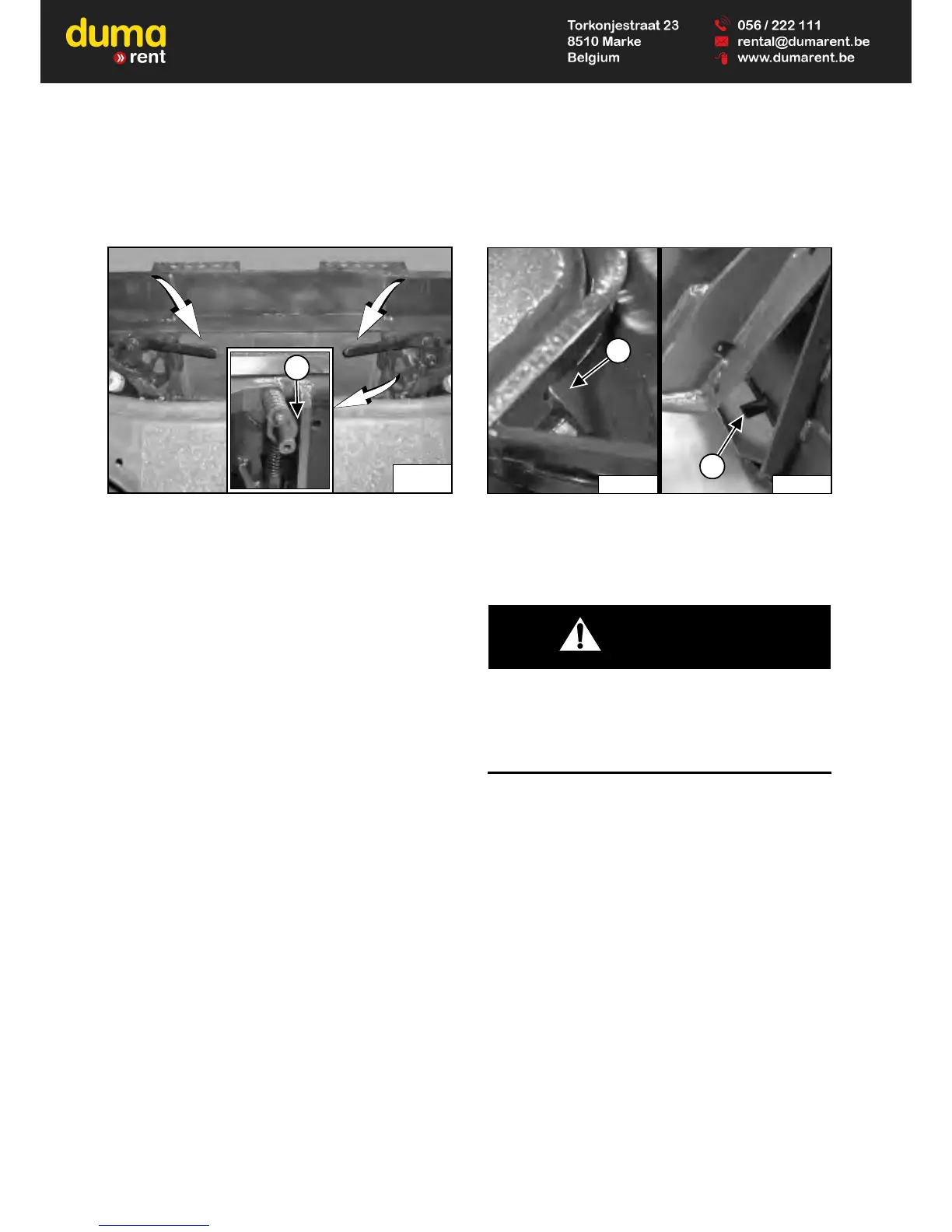

Figure 126
Push down on the Bob-Tach levers until they are fully
engaged in the locked position [Figure 126] (wedges
fully extended through the attachment mounting frame
holes).
Both levers must contact the frame as shown when
locked (Item 1) [Figure 126].
If both levers do not engage in the locked position, see
your Bobcat dealer for maintenance.
Figure 127
The wedges (Item 1) must extend through the holes (Item
2) [Figure 127] in the mounting frame of the bucket (or
other attachment), securely fastening the bucket to the
Bob-Tach.
AVOID INJURY OR DEATH
The Bob-Tach wedges must extend through the holes
in the attachment mounting frame. Levers must be
fully down and locked. Failure to secure wedges can
allow attachment to come off.
W-2715-0208
