Digging And Filling A Hole (SJC – ‘ISO’ Pattern)
Digging

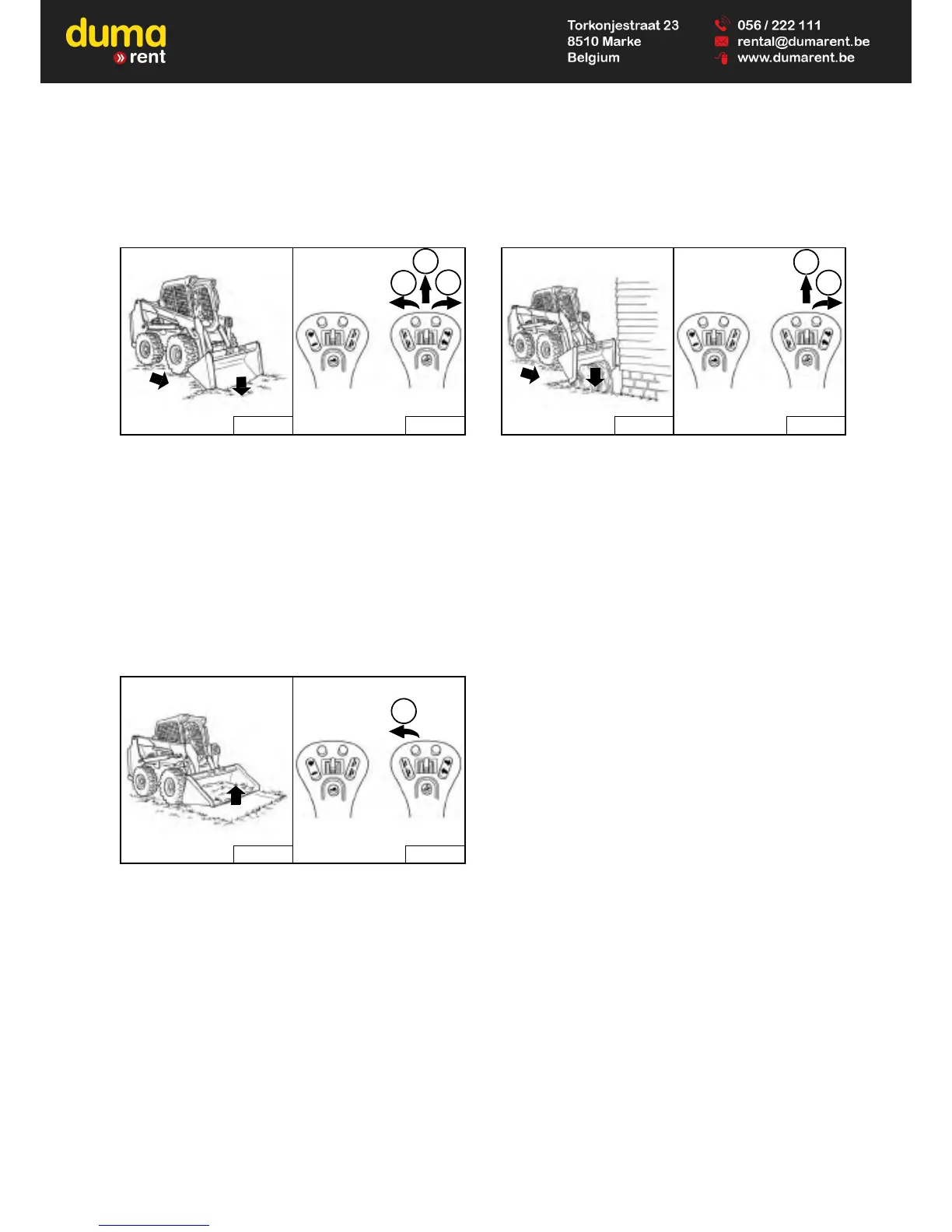

Figure 161
Lower the lift arms all the way (Item 1). Put the cutting
edge of the bucket on the ground (Item 2) [Figure 161].
Drive forward slowly and continue to tilt the bucket down
(Item 2) [Figure 161] until the bucket enters the ground.
Tilt the bucket backward a small amount (Item 3) to
increase traction and keep an even digging depth.
Continue to drive forward until the bucket is full. When the
ground is hard, raise and lower the cutting edge (Items 2
and 3) [Figure 161] while driving forward.
Figure 162
Tilt the bucket backward (Item 1) [Figure 162] fully when
the bucket is full.
Filling
Figure 163
Lower the lift arms (Item 1) and put the cutting edge of
the bucket on the ground (Item 2) [Figure 163]. Drive
forward to the edge of the hole to push the material into
the hole.
Tilt the bucket forward (Item 2) [Figure 163] as soon as
the bucket is past the edge of the hole.
If necessary, raise the lift arms to empty the bucket.
