195 S450 Operation & Maintenance Manual
LUBRICATING THE LOADER (CONT’D)
Lubrication Locations (Cont’d)

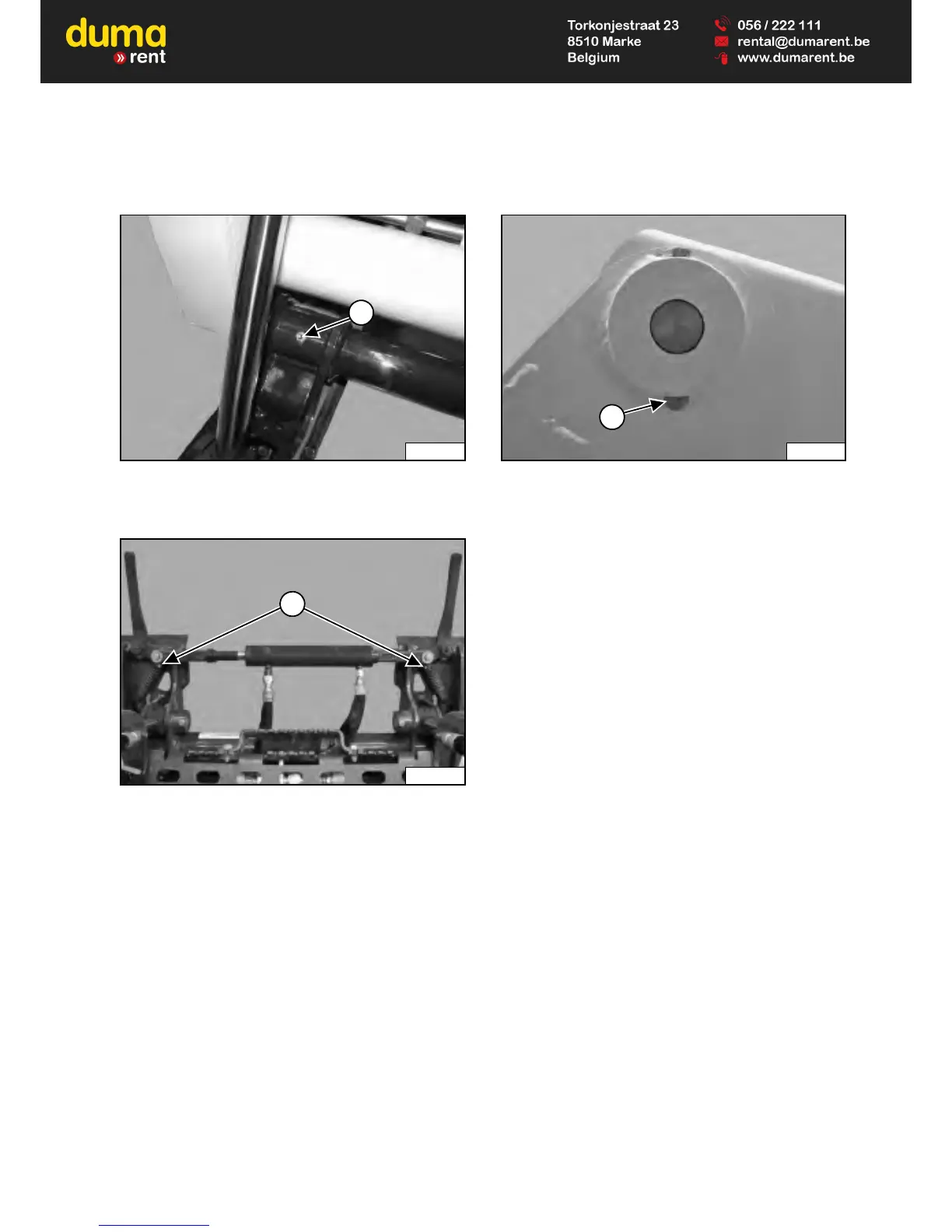

Figure 287
7. Bob-Tach Pivot Pin (Both Sides) (2) [Figure 287].
Figure 288
8. Power Bob-Tach Hydraulic Cylinder (if equipped) (2)
[Figure 288].
PIVOT PINS
Inspection And Maintenance
Figure 289
All lift arm and cylinder pivots have a large pin held in
position with a retainer bolt and locknut (Item 1)
[Figure 289].
Check that the locknuts are tightened to 48 – 54 N•m (35
– 40 ft-lb) torque.
