LUBRICATING THE LOADER (CONT’D)
Lubrication Locations (Cont’d)

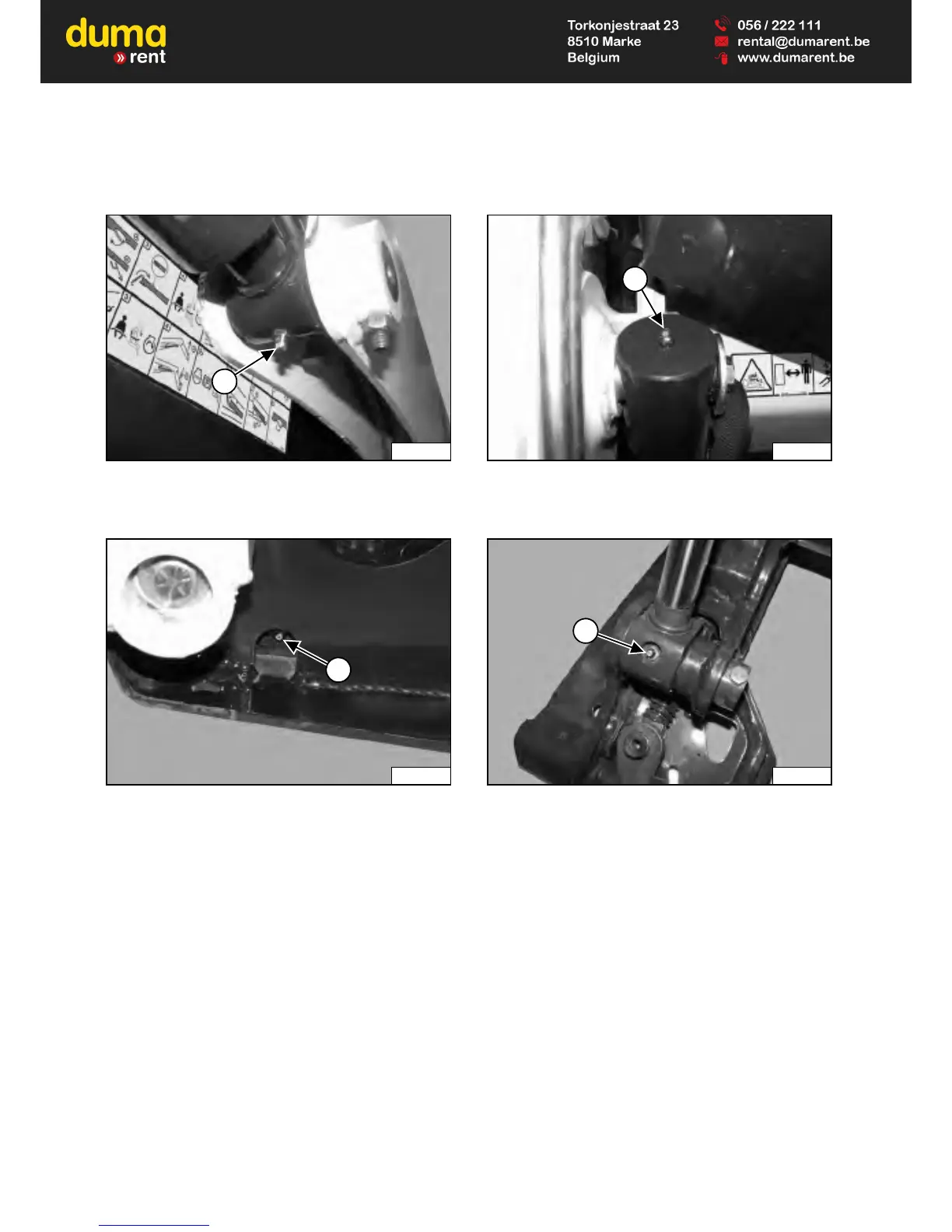

Figure 283
3. Rod End Lift Cylinder (Both Sides) (2) [Figure 283].
Figure 284
4. Bob-Tach Wedge (Both Sides) (2) [Figure 284].
Figure 285
5. Base End Tilt Cylinder (Both Sides) (2) [Figure 285].
Figure 286
6. Rod End Tilt Cylinder (Both Sides) (2) [Figure 286].
P115219A
3
P115164
4
P115165A
5
P115167
6
