46 S450 Operation & Maintenance Manual
INSTRUMENT PANEL IDENTIFICATION (CONT’D)

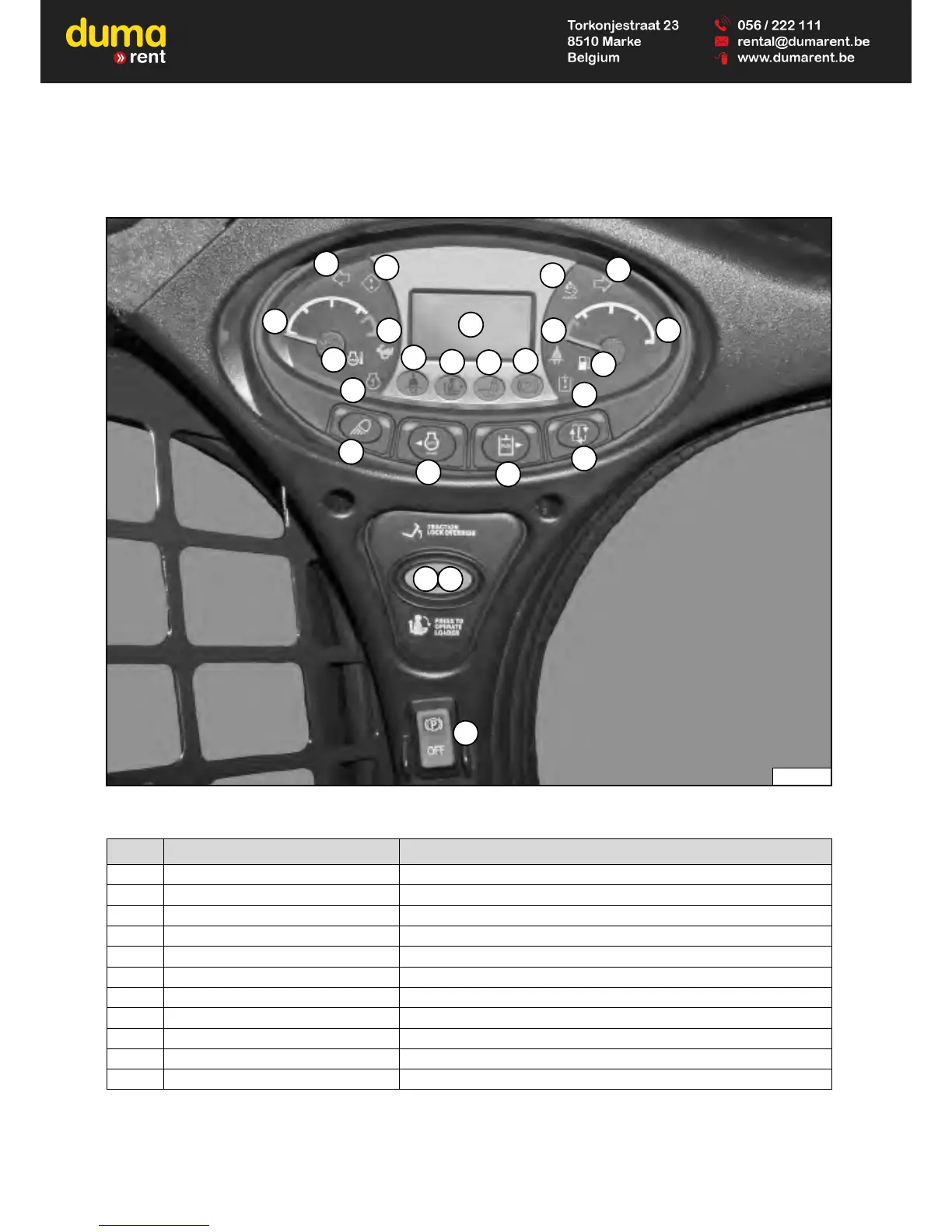

Left Panel
Figure 12
The left panel [Figure 12] is the same for all machines regardless of options and accessories.
ITEM DESCRIPTION FUNCTION / OPERATION
1 ENGINE TEMPERATURE GAUGE Shows the engine coolant temperature.
2 LEFT TURN SIGNAL (Option) Indicates left turn signals are ON.
3 GENERAL WARNING Malfunction with one or more machine functions. (See Service Codes*)
4 TWO-SPEED (Option) High range selected.
5 ENGINE MALFUNCTION Engine malfunction or failure. (See Service Codes*)
6 ENGINE COOLANT TEMPERATURE Engine coolant temperature high or sensor error.
7 DISPLAY SCREEN Displays information. (See Display Screen in this manual.)
8 SEAT BELT Instructs operator to fasten seat belt. Remains lit for 45 seconds.
9 SEAT BAR The light is on when the seat bar is UP.
10 LIFT AND TILT VALVE The light is on when the lift and tilt functions cannot be operated.
11 PARKING BRAKE The light is on when the loader cannot be driven.
