66 S450 Operation & Maintenance Manual
EMERGENCY EXIT
The front opening on the operator cab and rear window provide exits.

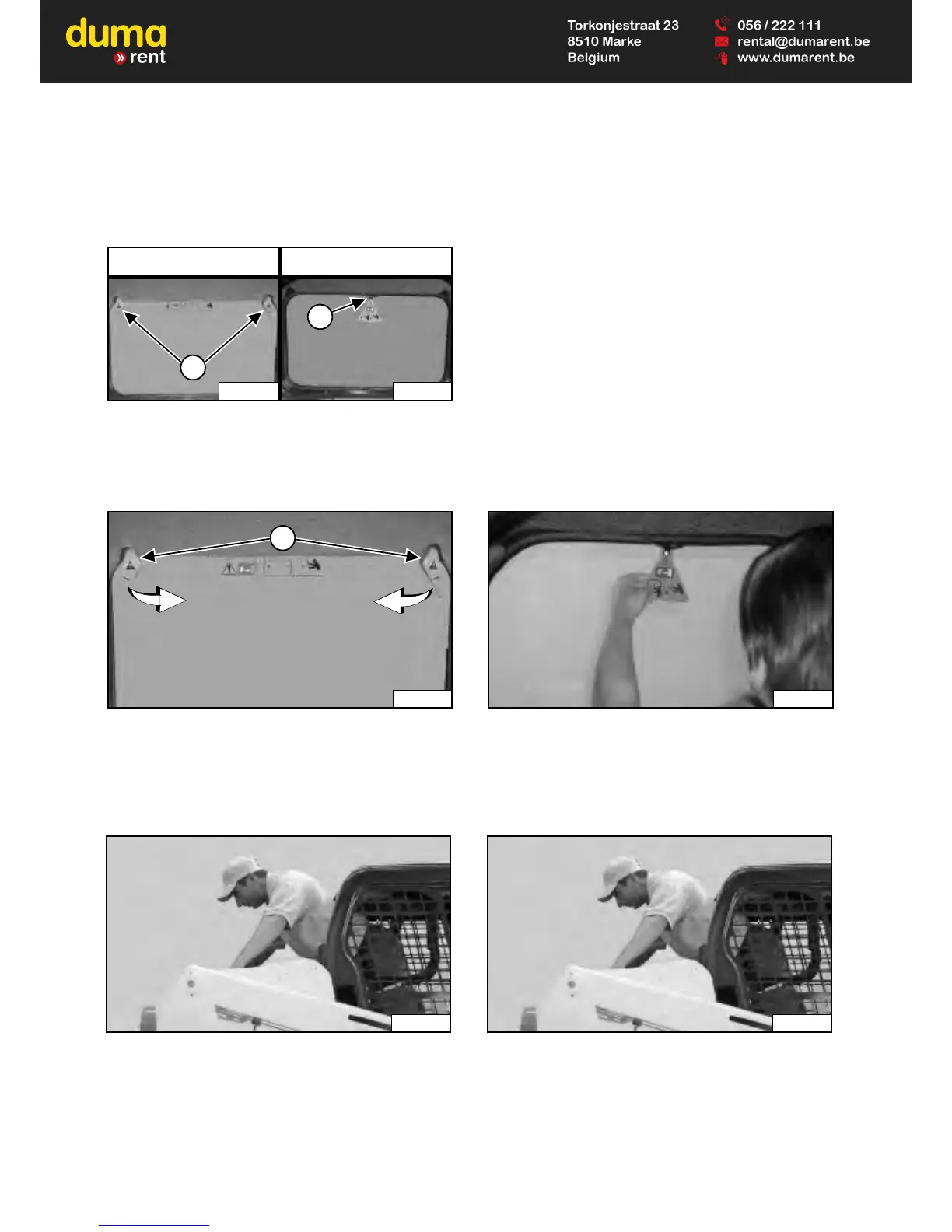

Rear Window Identification
Figure 40 There are two different procedures for removing the rear
window from your machine:
1. This window is equipped with latches [Figure 40].
2. This window is equipped with a rubber cord and tag
[Figure 40].
NOTE: Use these procedures to remove the rear
window only under emergency conditions.
Damage to machine may occur.
—————————————————————————————————————————————————————
Rear Window Removal (Latches)
Figure 41
Turn both latches (Item 1) [Figure 41] in until they
disengage from the window frame.
Push the rear window out of the rear of the operator cab.
Figure 42
Exit through the rear of the operator cab [Figure 42].
Rear Window Removal (Rubber Cord)
Figure 43
Pull on the tag on the top of the rear window to remove
the rubber cord [Figure 43].
Push the rear window out of the rear of the operator cab.
Figure 44
Exit through the rear of the operator cab [Figure 44].
