70 S450 Operation & Maintenance Manual
DRIVING AND STEERING THE LOADER
Available Control Configurations
This loader has three control configurations available:
• Standard Controls – Two steering levers control drive
and steering functions.
• Advanced Control System (ACS) (Option) – Two
steering levers control drive and steering functions.
• Selectable Joystick Controls (SJC) (Option):
(‘ISO’ Pattern) – Left joystick controls the drive and
steering functions.
(‘H’ Pattern) – Left and right joysticks control left and
right side drive and steering functions.
Operation (Standard And ACS)
AVOID INJURY OR DEATH
When operating the machine:
• Keep the seat belt fastened snugly.
• The seat bar must be lowered.
• Keep your feet on the pedal controls or footrests
and hands on the controls.
W-2261-0909

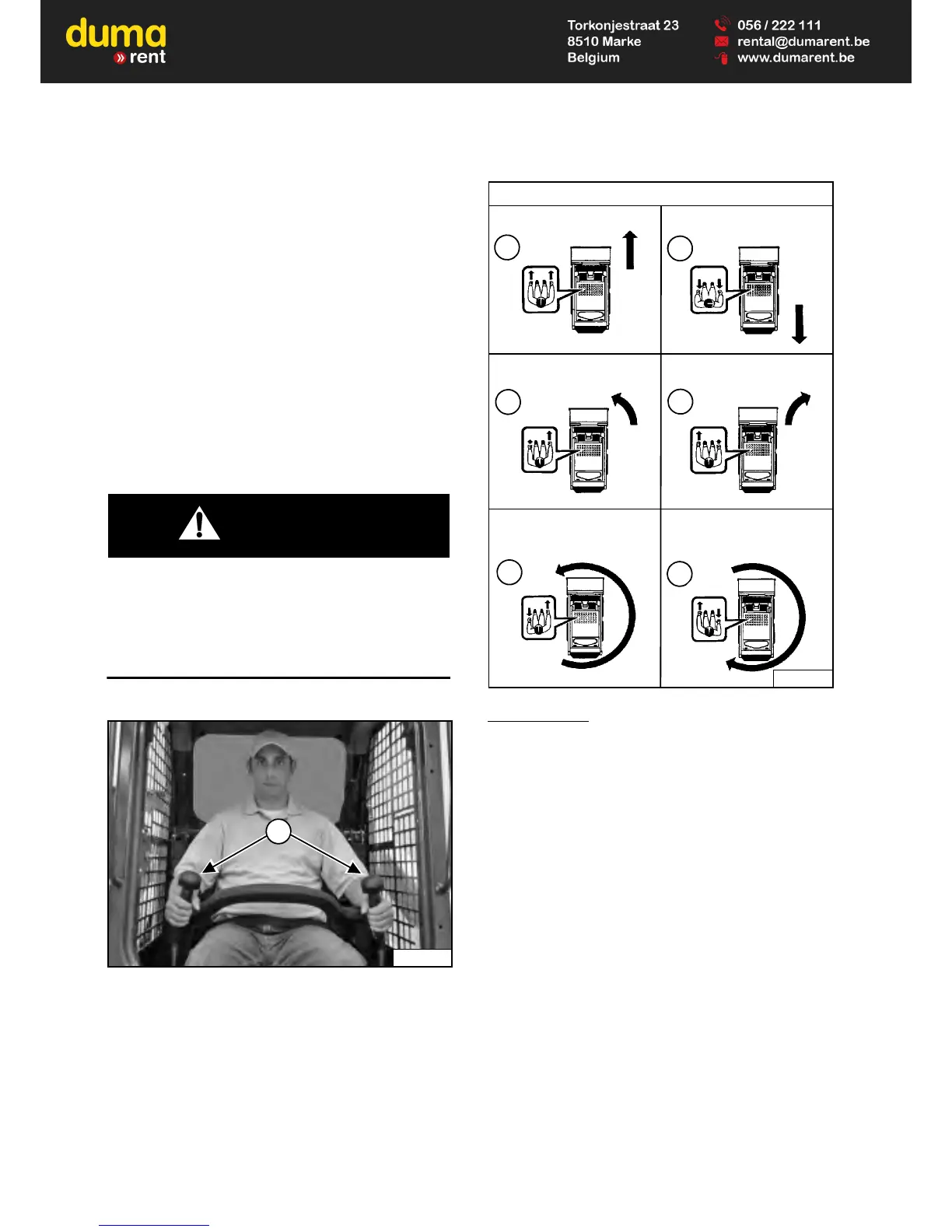

Figure 54
The steering levers (Item 1) [Figure 54] are on the left
and right side in front of the seat.
Move the levers smoothly. Avoid sudden starting and
stopping.
Figure 55
Steering Lever
Functions (Drive And Steering)
[Figure 55]:
1. Forward Travel – Push both levers forward.
2. Backward Travel – Pull both levers backward.
3. Left Turn – Move the right lever farther forward than
the left lever.
4. Right Turn – Move the left lever farther forward than
the right lever.
5. Left Fast Turn – Move the left lever backward and the
right lever forward.
6. Right Fast Turn – Move the right lever backward and
the left lever forward.
