DRIVING AND STEERING THE LOADER (CONT’D)
Operation (SJC) In ‘H’ Control Pattern

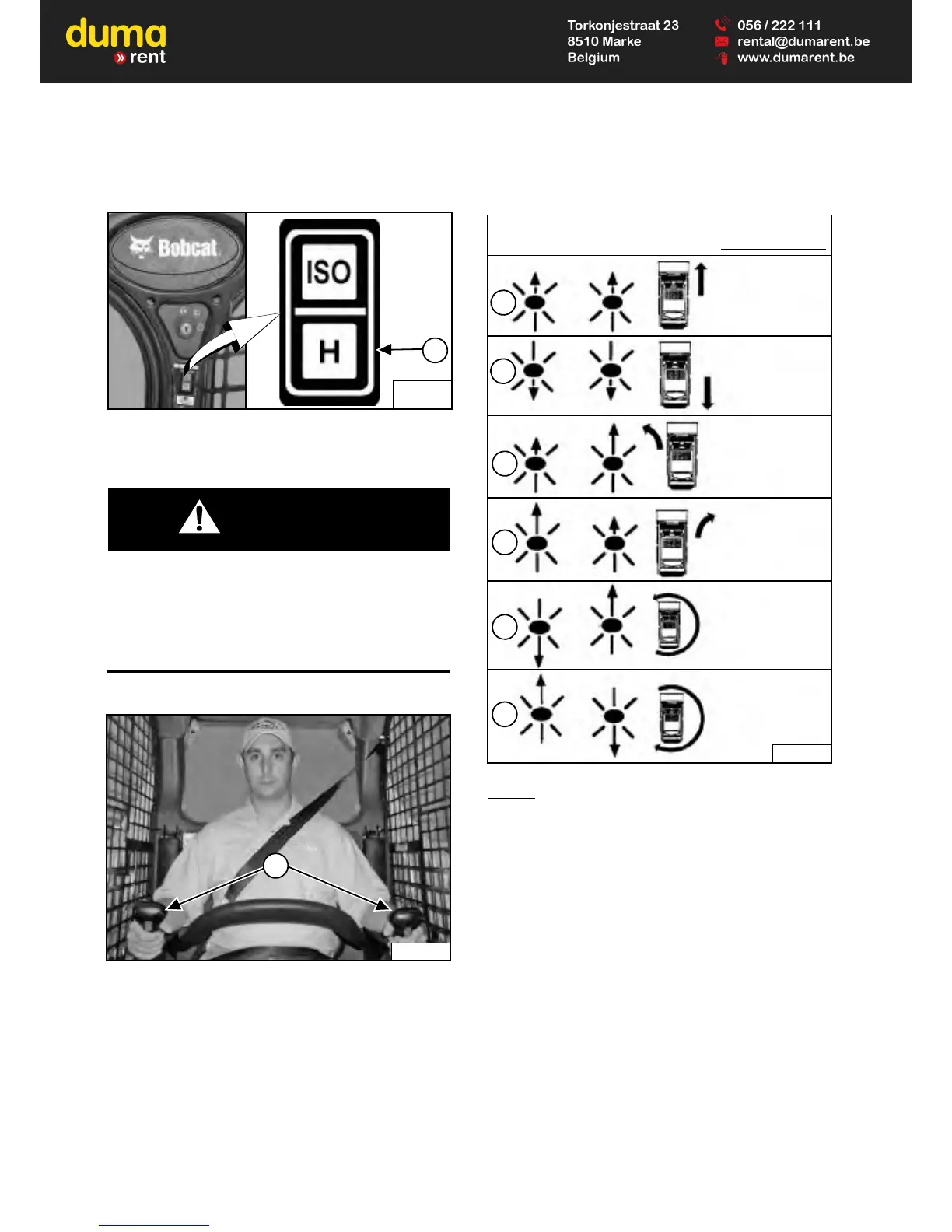

Figure 59
Select the ‘H’ control pattern by pressing the bottom of
the switch (Item 1) [Figure 59].
WARNING
AVOID INJURY OR DEATH
When operating the machine:
• Keep the seat belt fastened snugly.
• The seat bar must be lowered.
• Keep your feet on the foot rests and hands on
control levers.
W-2399-0501
Figure 60
Both joysticks control drive and steering and are located
on the left and right side in front of the seat (Item 1)
[Figure 60].
Move the joysticks smoothly. Avoid sudden starting and
stopping.
Figure 61
Joystick
Functions (Drive And Steering) [Figure 61]:
1. Forward Travel – Move both joysticks forward.
2. Backward Travel – Move both joysticks backward.
3. Forward Left Turn – Move the right joystick farther
forward than the left joystick.
4. Forward Right Turn – Move the left joystick farther
forward than the right joystick.
5. Left Fast Turn – Move the left joystick backward and
the right joystick forward.
6. Right Fast Turn – Move the left joystick forward and
the right joystick backward.
P-85307I
NA3049
1
P-90674E
1
NA3111
1
2
3
4
5
6
NN
NN
NN
N
N
N
N
N
N
SJC in ‘H’
Control Pattern
Left
Joystick
Right
Joystick
FORWARD
BACKWARD
LEFT TURN
RIGHT TURN
LEFT FAST
TURN
RIGHT FAST
TURN
