169 S650 Operation & Maintenance Manual
HYDRAULIC / HYDROSTATIC SYSTEM (CONT’D)
Removing And Replacing Hydraulic Charge Filter
(Cont’d)
WARNING
AVOID INJURY OR DEATH
Diesel fuel or hydraulic fluid under pressure can
penetrate skin or eyes, causing serious injury or
death. Fluid leaks under pressure may not be visible.
Use a piece of cardboard or wood to find leaks. Do
not use your bare hand. Wear safety goggles. If fluid
enters skin or eyes, get immediate medical attention
from a doctor familiar with this injury.
W-2072-EN-0909
Stop the engine and check for leaks at the filter.
Check the fluid level in the reservoir and add as needed.
(See Checking And Adding Fluid on Page 164.)
Breather Cap
See the SERVICE SCHEDULE for the correct
replacement interval. (See SERVICE SCHEDULE on
Page 131.)
Remove the rear grille. (See REAR GRILLE on Page
145.)

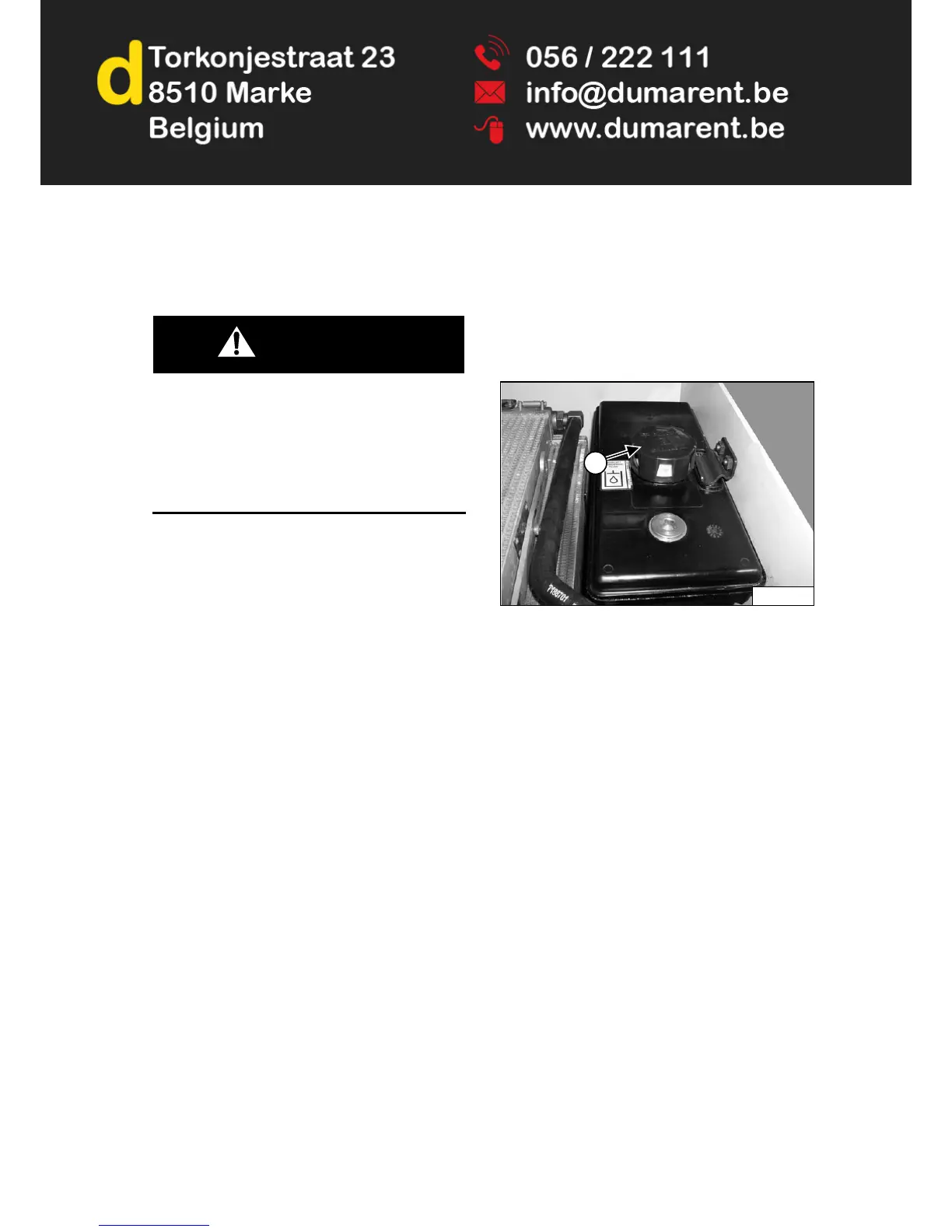

Figure 253
Remove the breather cap (Item 1) [Figure 253] and
discard.
Install new breather cap.
Install the rear grille.
P100055
1
