MACHINE SIGNS (DECALS) (CONT’D)
No-Text Safety Signs
Safety signs are used to alert the equipment operator or
maintenance person to hazards that may be encountered
in the use and maintenance of the equipment. The
location and description of the safety signs are detailed in
this section. Please become familiarized with all safety
signs installed on the machine / attachment.

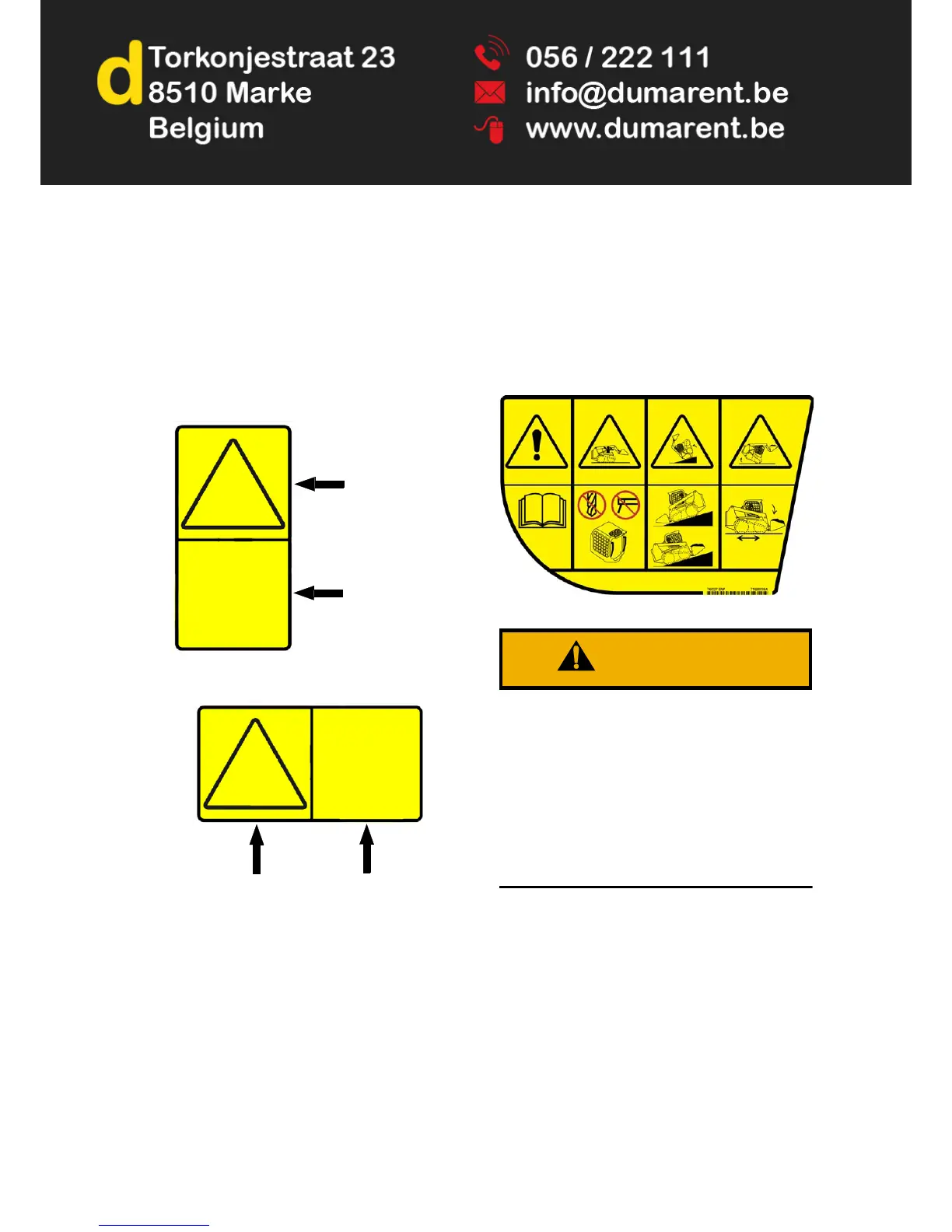

Vertical Configuration
Horizontal Configuration
The format consists of the hazard panel(s) and the
avoidance panel(s):
Hazard panels depict a potential hazard enclosed in a
safety alert triangle.
Avoidance panels depict actions required to avoid the
hazards.
A safety sign may contain more than one hazard panel
and more than one avoidance panel.
NOTE: See the numbered MACHINE SIGNS
(DECALS) on Page 24 and MACHINE SIGNS
(DECALS) (CONT’D) on Page 25 for the
machine location of each correspondingly
numbered no-text decal.
1. General Hazard Warning (7168038)
This safety sign is located in the operator cab in the lower
right hand corner.
WARNING
AVOID INJURY OR DEATH
Never use the loader without instructions. Read
Operation & Maintenance Manual and Handbook.
Never modify equipment or use attachments not
approved by Bobcat Company.
On slopes, keep heavy end of loader uphill.
Do not travel or turn with lift arms up. Load, unload
and turn on flat level ground. Do not exceed Rated
Operating Capacity (see sign on loader).
W-2837-0310
HAZARD
PAN EL
AVOIDANCE
PANEL
HAZARD
PAN EL
AVOIDANCE
PAN EL
