62 S650 Operation & Maintenance Manual
LIFT ARM BYPASS CONTROL
Operation

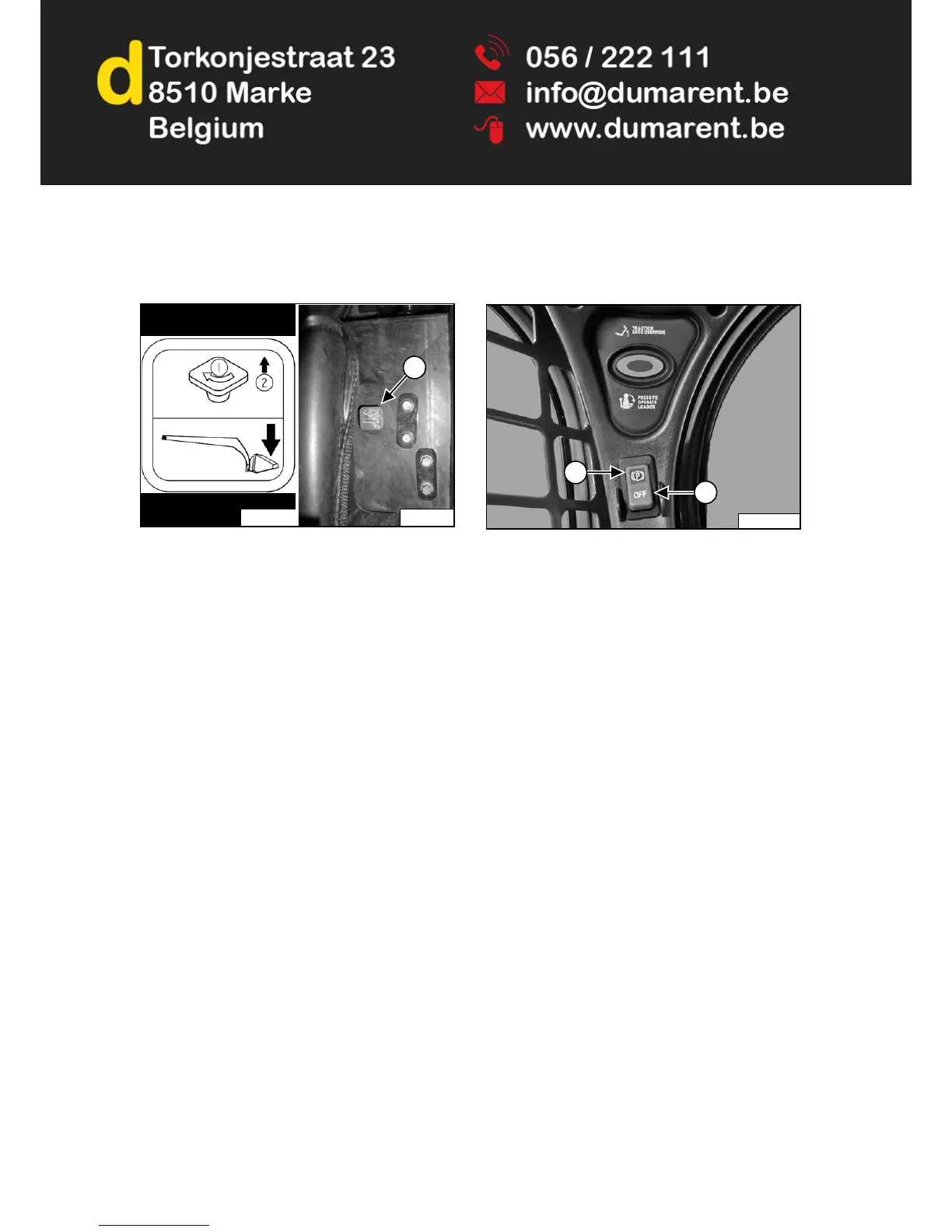

Figure 36
The Lift Arm Bypass Control (Item 1) [Figure 36], located
to the right of the operator’s seat, is used to lower the lift
arms if the lift arms cannot be lowered during normal
operations.
1. Sit in the operator's seat.
2. Fasten the seat belt and lower the seat bar.
3. Turn the knob (Item 1) [Figure 36] 90° clockwise.
4. Pull up and hold the knob until the lift arms lower.
PARKING BRAKE
Operation
Figure 37
Press the top of the switch (Item 1) [Figure 37] to
engage the parking brake. The red light in the switch will
turn on. The traction drive system will be locked.
Press the bottom of the switch (Item 2) [Figure 37] to
disengage the parking brake. The red light in the switch
will turn off. The traction drive system will be unlocked.
NOTE: The PARKING BRAKE light on the left
instrument panel will remain ON until the
engine is started, the PRESS TO OPERATE
LOADER button is pressed and the parking
brake is disengaged.
P-85290B
1
P-85290A
P-90681A
1
2
