08-08
Intermediate Update 12
ALTERNATOR BELT
Belt Adjustment
Stop the engine and open the rear door.

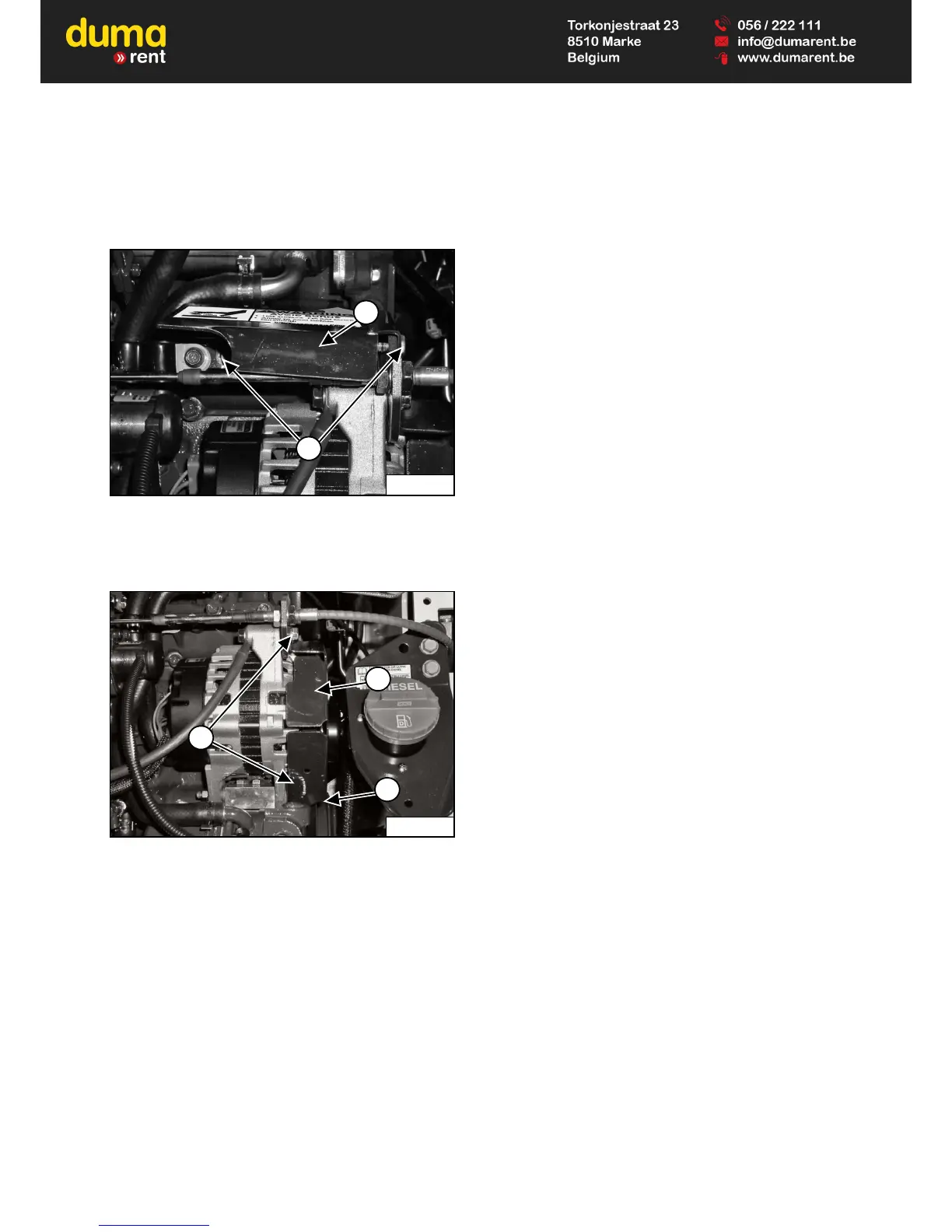

Figure 17
Loosen the alternator shield mounting bolts (1) and
remove the alternator shield (2) [Figure 17].
Figure 18
Loosen the alternator mounting and adjustment bolts (1)
[Figure 18].
Move the alternator to tighten the belt. The tension is
correct when there is 8,0 mm movement at the middle of
the belt span (2) [Figure 18] with 66 N of force.
Tighten the adjustment and mounting bolts (1)
[Figure 18].
Install the alternator shield and tighten mounting bolts.
Close the rear door before operating the loader.
Belt Replacement
Remove the air conditioning belt, if equipped. (See AIR
CONDITIONING BELT on Page 13.)
Loosen the alternator shield mounting bolts (1) and
remove the alternator shield (2) [Figure 17].
Loosen the alternator mounting and adjustment bolts (1)
and remove the alternator belt shield (3) [Figure 18].
Move the alternator forward as far as it will go.
Remove the belt from the pulleys and inspect the pulleys
for wear. Replace as needed.
Install new alternator belt.
Install alternator belt shield (3) [Figure 18].
Adjust the belt. (See Belt Adjustment on Page 12.)
Install the alternator shield and tighten mounting bolts.
Install the air conditioning belt, if equipped. (See AIR
CONDITIONING BELT on Page 13.)
Close the rear door before operating the loader.
P-76903
1
2
P-76904
1
2
3
