08-08
Intermediate Update 16
DRIVE BELT (CONT’D)
Belt Adjustment (Cont’d)

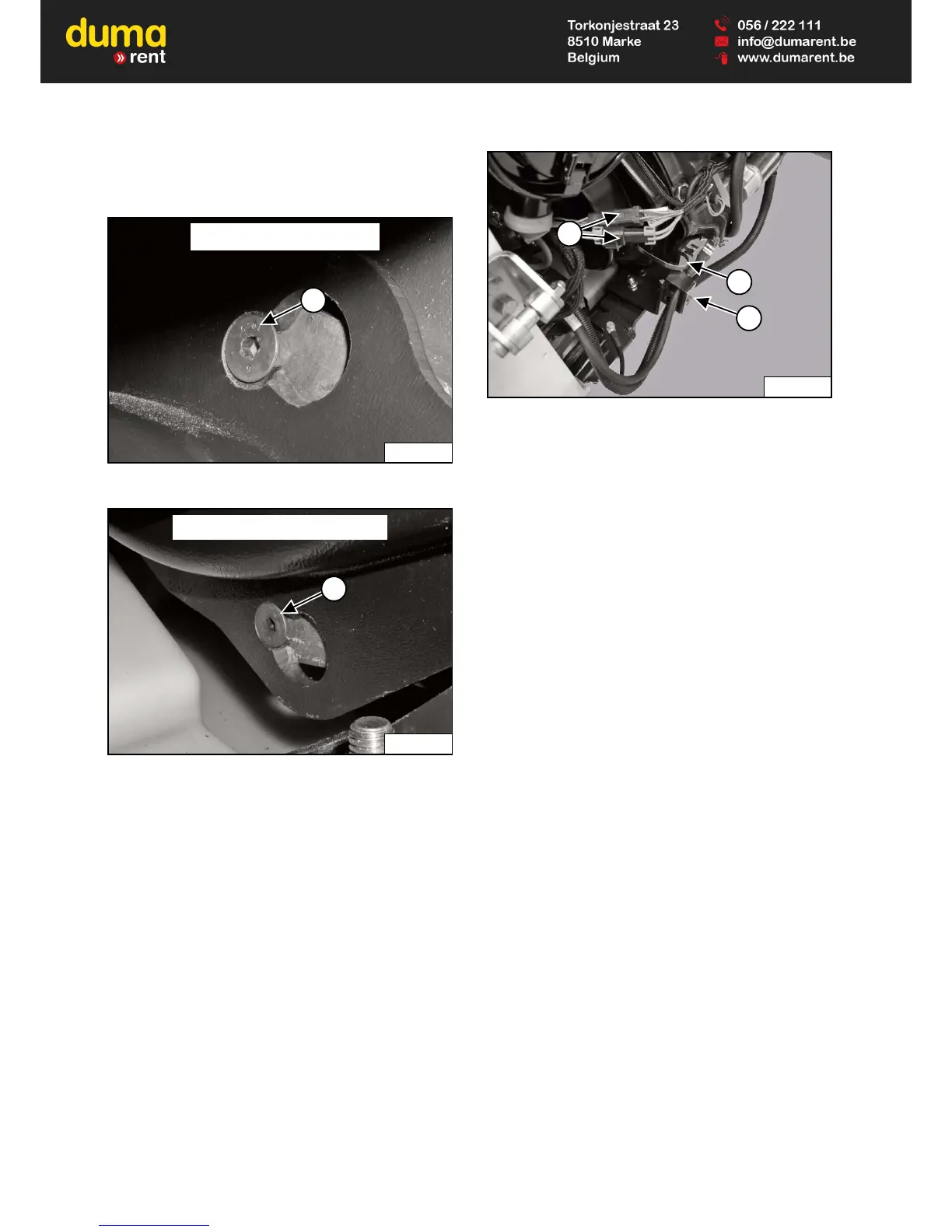

Figure 25
Figure 26
Position the drive belt shield over the drive belt housing
bolts and slide the drive belt shield toward the back of the
loader to fully seat the shield onto the top and bottom
drive belt housing bolts (1) [Figure 25] and [Figure 26].
Figure 27
Connect the two electrical connectors (1) [Figure 27].
Hook the drive belt shield clip (2) [Figure 27] in place.
Install the cable bracket and tighten the bolt and nut (3)
[Figure 27].
Connect the negative battery cable.
Close the rear door before operating the loader.
P-76917
1
TOP HOUSING BOLT
P-76919
1
BOTTOM HOUSING BOLT
P-76966
3
1
2
