17 Intermediate Update
DRIVE BELT (CONT’D)
Belt Replacement
Follow the procedure under drive belt adjustment to
loosen the spring loaded drive idler. (See Belt Adjustment
on Page 15.)

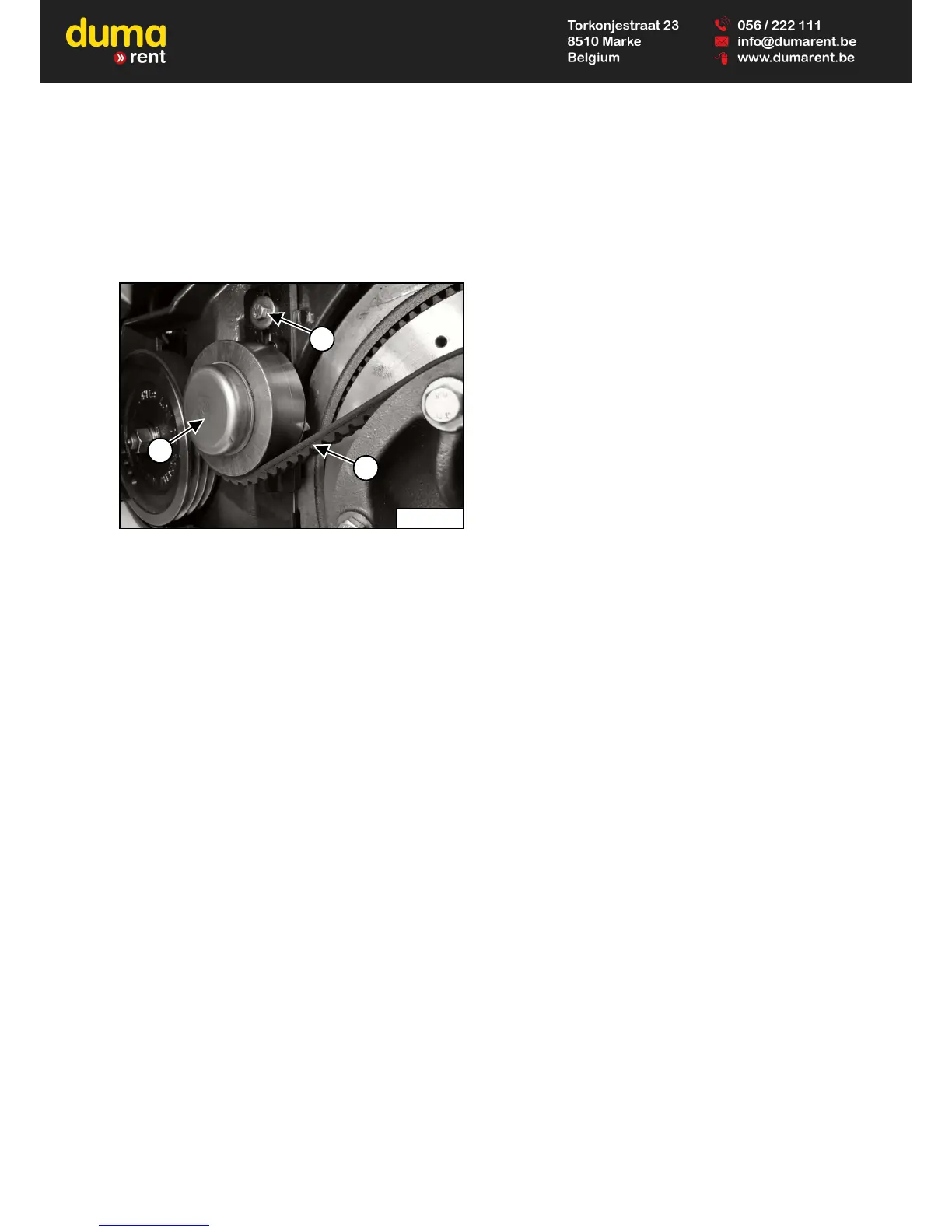

Figure 28
Remove the spring loaded drive idler mounting bolt (1)
and spring loaded drive idler (2) [Figure 28].
Remove the drive belt (3) [Figure 28] from the pump
pulley and flywheel and remove the belt from the loader.
Install new drive belt. Install the spring loaded drive idler.
Apply Loctite
®
242 to the mounting bolt (1) [Figure 28]
and install the mounting bolt and washer.
Continue the procedure under drive belt adjustment to
adjust the drive belt and complete installation of removed
and disconnected components. (See Belt Adjustment on
Page 15.)
Close the rear door before operating the loader.
P-76915
1
2
3
