03. ASSEMBLY INSTRUCTIONS
FITTING THE CARRIER ON THE BICYCLE

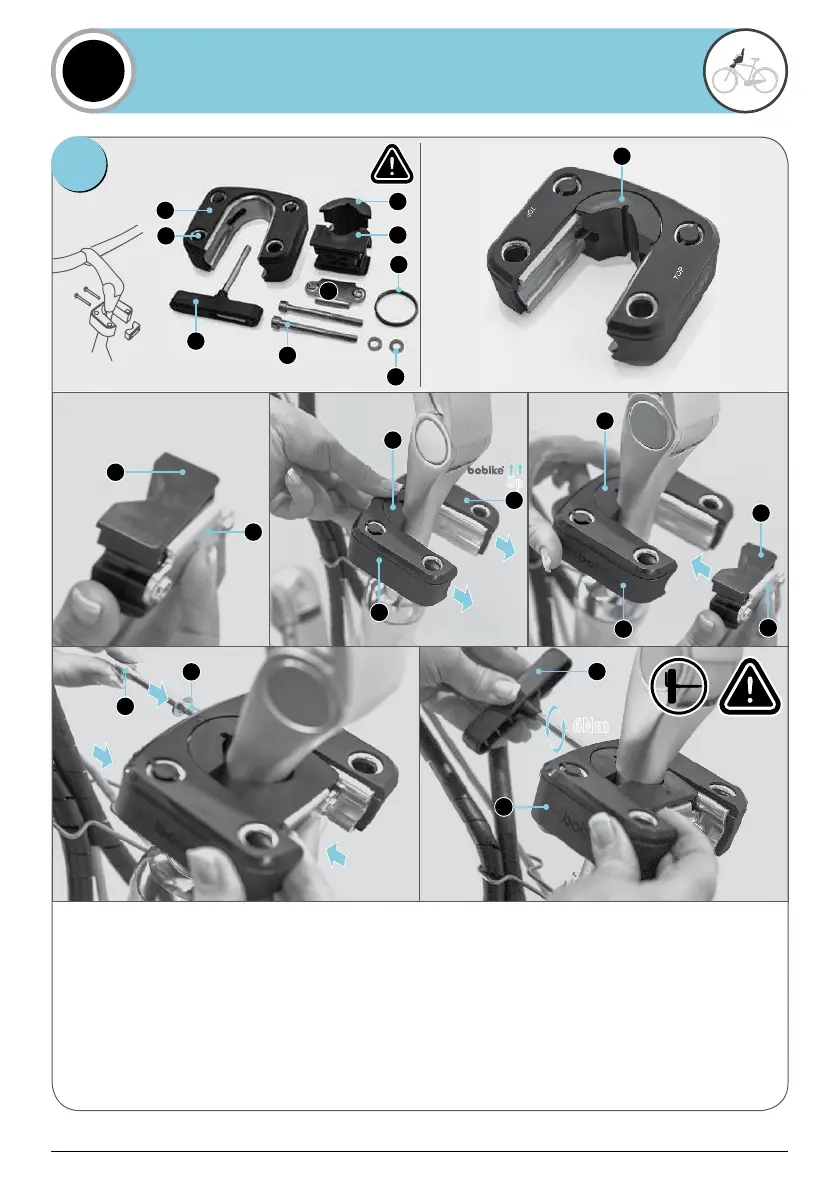

Place the steel fastening plate (E6.3) to the rear fastening part of the KIT (E6.2) as shown in the picture.
On this step, make sure that the frame holder body (E5) faces up - the word “TOP” must face up. Then make sure that the front
spacer of the KIT (E6.1) is correctly applied to the body of the frame holder body (E5) as shown. Then, place the set to the
steering tube.
Next place the rear part (E6.2 + E6.3) so that the frame holder surrounds the steering tube. Then insert the 2 bolts (E4) and
washers (E2) into the frame holder (E).
Finally tighten the bolts using the Allen key (E1). Make sure that the frame holder (E) is tightly fixed and does not move (we
recommend a torque of 6 N.m) - correct tightening is extremely important for the child’s safety.
