10 I Disassembly of the compressor
6
Removal of the baseplate
Position in
parts list
Parts list position: 20, 30, 40
Tools: Container for collection oil, spanner SW 13
Working course
40
20, 30

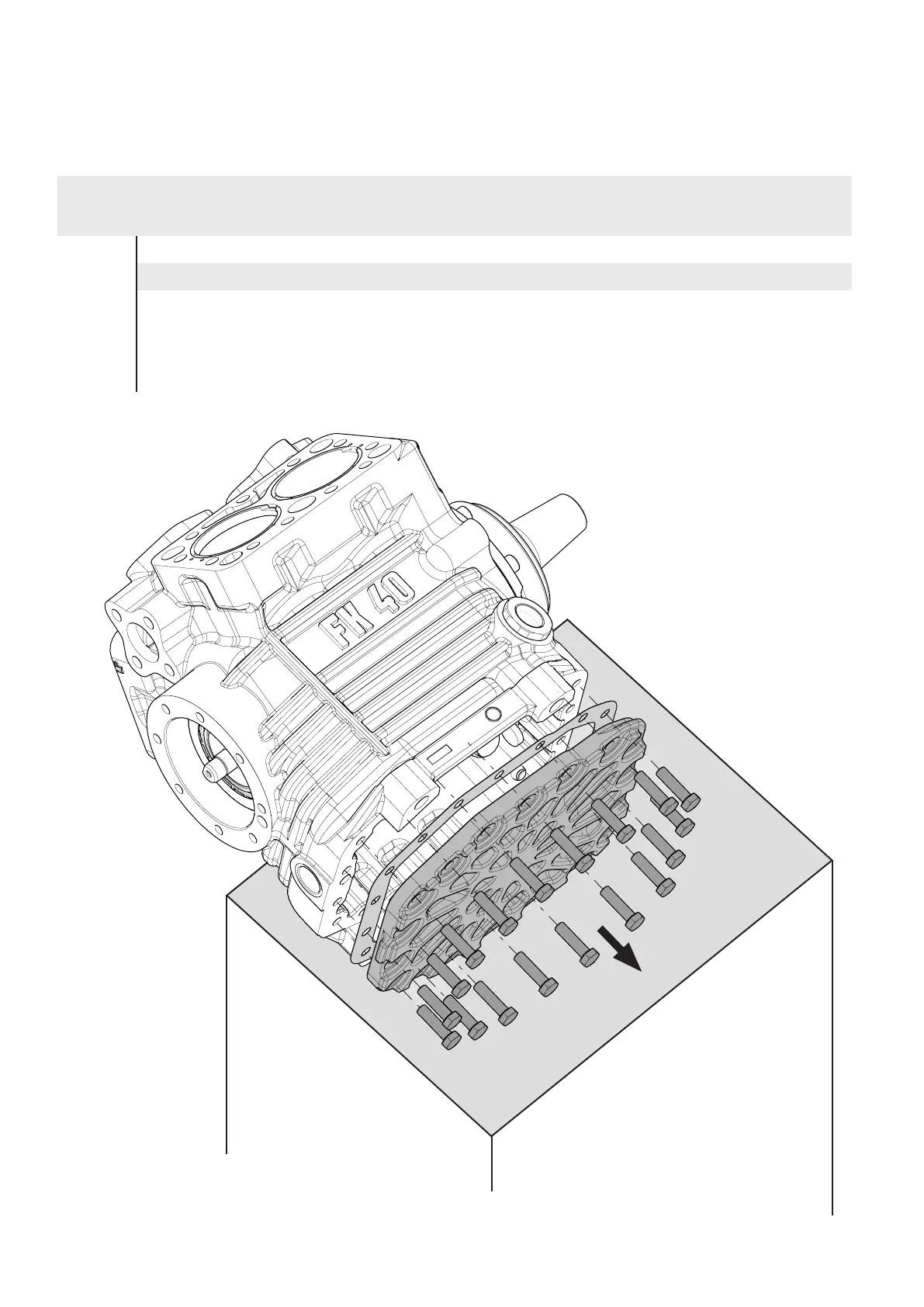

- Place the compressor into the oil collection pan and turn it sideways
- Unscrew the screws from the baseplate
- Remove the baseplate and the gasket
