BOCK FK40 - Installation of Shut-off Valves and Blind Flanges

54
09665-07.2021-Gb
13
Installation of all shut-off valves and blind anges
Position in
parts list
Parts list position: 2060, 2070, 232
Tools: Spanner SW 17, allen key 6 mm
Working course
230, 210
2060
233, 232,
231

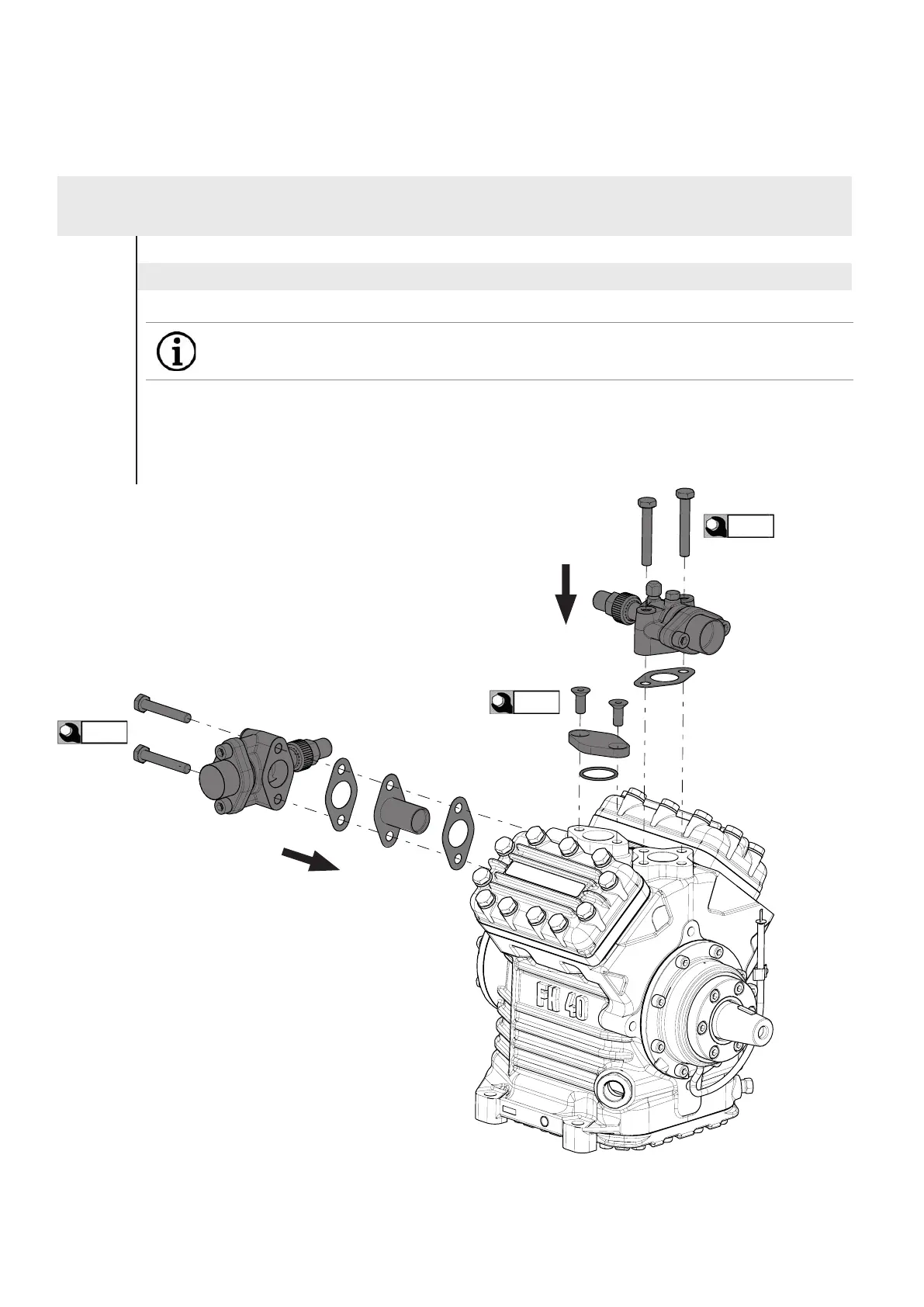

- Put in the suction lter with the gasket
- Install the shut-off valves (on the discharge and suction side) with gaskets and screws
- Install the blind ange with O-ring and screws
- Tighten all screws
12 I Assembly of compressor
INFO Observe tightening torques!
Use screws of correct length for the installation of the intermediate anges!
60 Nm
60 Nm
60 Nm
