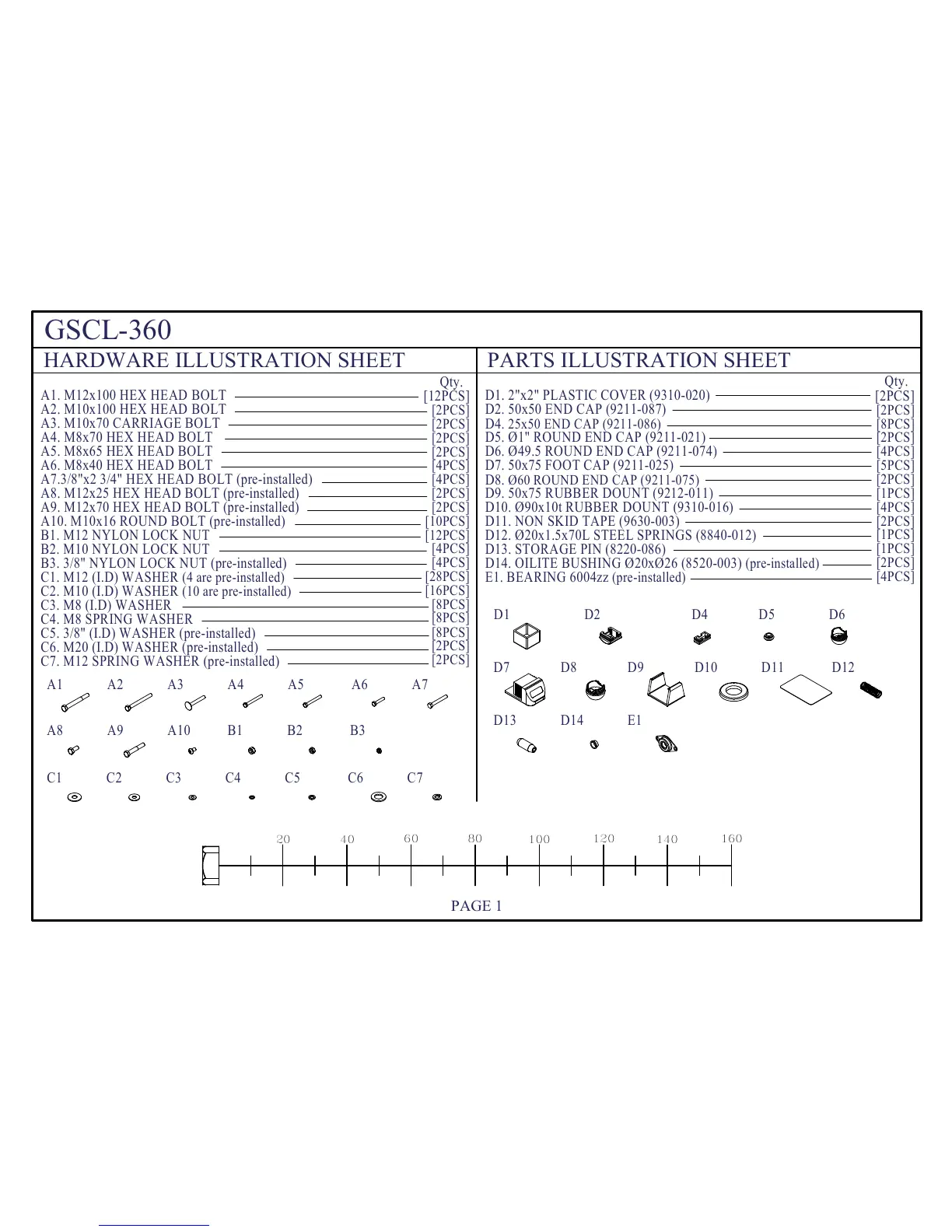

Body Solid GSCL-360 - Hardware Illustration Sheet; Parts Illustration Sheet

GSCL-360
PAGE 1
HARDWARE ILLUSTRATION SHEET
40
20
60 80
100 140
160120
PARTS ILLUSTRATION SHEET
A1. M12x100 HEX HEAD BOLT
A2. M10x100 HEX HEAD BOLT
A3. M10x70 CARRIAGE BOLT
A4. M8x70 HEX HEAD BOLT
A5. M8x65 HEX HEAD BOLT
A6. M8x40 HEX HEAD BOLT
A7.3/8"x2 3/4" HEX HEAD BOLT (pre-installed)
A8. M12x25 HEX HEAD BOLT (pre-installed)
A9. M12x70 HEX HEAD BOLT (pre-installed)
A10. M10x16 ROUND BOLT (pre-installed)
B1. M12 NYLON LOCK NUT
B2. M10 NYLON LOCK NUT
B3. 3/8" NYLON LOCK NUT (pre-installed)
C1. M12 (I.D) WASHER (4 are pre-installed)
C2. M10 (I.D) WASHER (10 are pre-installed)
C3. M8 (I.D) WASHER
C4. M8 SPRING WASHER
C5. 3/8" (I.D) WASHER (pre-installed)
C6. M20 (I.D) WASHER (pre-installed)
C7. M12 SPRING WASHER (pre-installed)
Qty.
[12PCS]
[2PCS]
[2PCS]
[2PCS]
[2PCS]
[4PCS]
[4PCS]
[2PCS]
[2PCS]
[10PCS]
[12PCS]
[4PCS]
[4PCS]
[28PCS]
[16PCS]
[8PCS]
[8PCS]
[8PCS]
[2PCS]
[2PCS]
D1. 2"x2" PLASTIC COVER (9310-020)
D2. 50x50 END CAP (9211-087)
D4. 25x50 END CAP (9211-086)
D5. Ø1" ROUND END CAP (9211-021)
D6. Ø49.5 ROUND END CAP (9211-074)
D7. 50x75 FOOT CAP (9211-025)
D8. Ø60 ROUND END CAP (9211-075)
D9. 50x75 RUBBER DOUNT (9212-011)
D10. Ø90x10t RUBBER DOUNT (9310-016)
D11. NON SKID TAPE (9630-003)
D12. Ø20x1.5x70L STEEL SPRINGS (8840-012)
D13. STORAGE PIN (8220-086)
D14. OILITE BUSHING Ø20xØ26 (8520-003) (pre-installed)
E1. BEARING 6004zz (pre-installed)
Qty.
[2PCS]
[2PCS]
[8PCS]
[2PCS]
[4PCS]
[5PCS]
[2PCS]
[1PCS]
[4PCS]
[2PCS]
[1PCS]
[1PCS]
[2PCS]
[4PCS]
C1 C2 C3 C4 C5 C6 C7
A1 A2 A3 A4 A5 A6 A7
A8 A9 A10 B1 B2 B3
D1 D2 D4 D5 D6
D7 D8 D9 D10 D11 D12
D13 D14 E1
