Body Solid SFID325 - Step 1 Assembly; Attach Rear Leg to Mainframe; Attach End Caps to Back Pad Support; Attach End Caps to Seat Support

2
1
S T E P
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end
of step 2.
S T E P
1
* Do not tighten bolts until the end of Step 4.
A. Apply Non-Slid Tape (D1) to Right Leg Frame (A) and Left Leg Frame (B
Be careful to assemble all components
in the sequence they are presented.

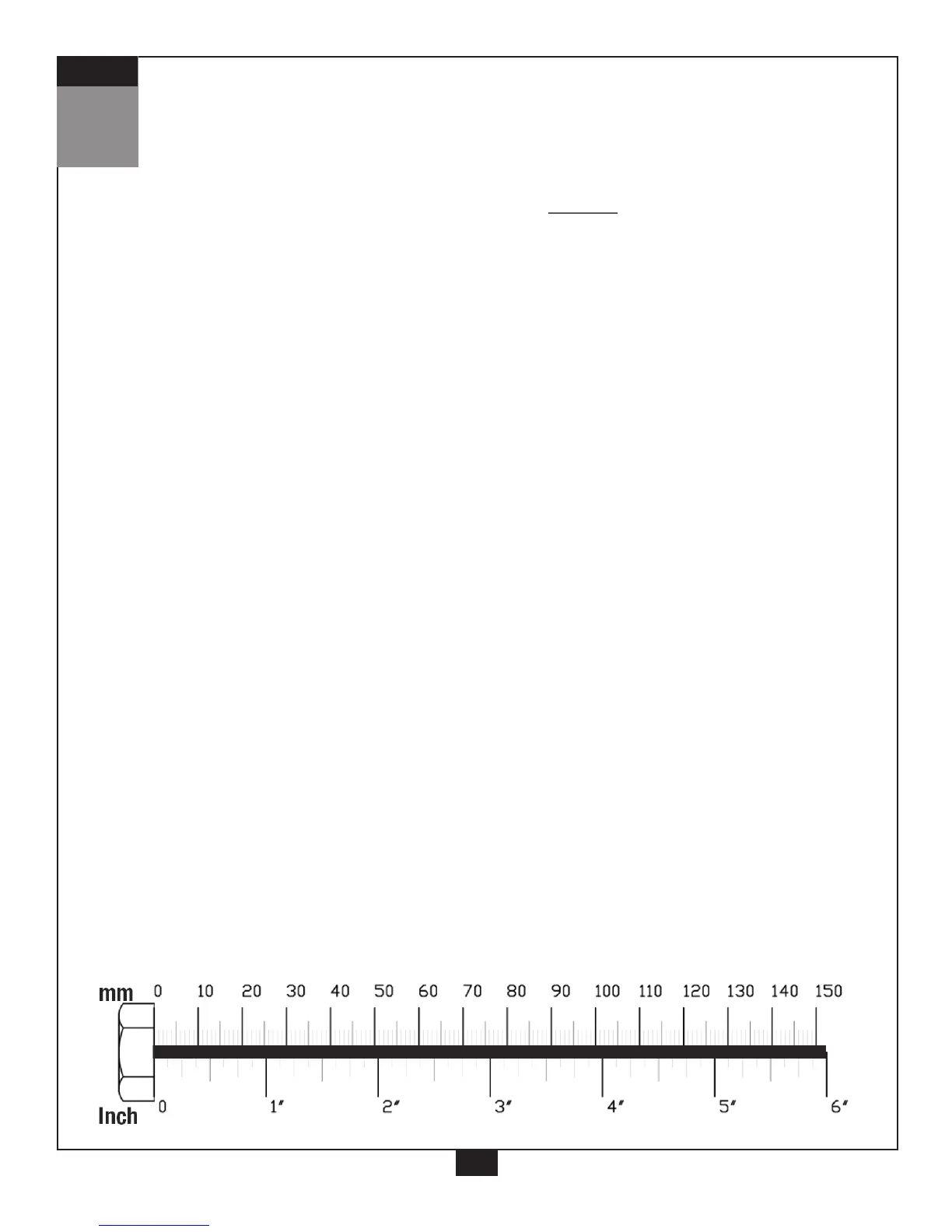

5
mm
Inch
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1" 2" 3" 4" 5" 6"
A. Attach rear leg (C) to mainframe (A) as shown using:
two 18 (Hex Bolt M12 X 105mm)
four 23 (Flat Washer 12mm)
two 27 (Nylon Lock Nut M12)
B. Attach two End Cap (16) to Back Pad Support structure (B) handle as shown using:
two 16 (End Cap Ø25)
two 29 (spring washer 6mm)
C. Attach two End Cap (16) to Seat Support Structure (D) handle as shown using:
two 16 (End Cap Ø25)
two 29 (spring washer 6mm)
D. Attach two End Cap (17) to mainframe (A) front handle as shown using:
one 17 (End Cap Ø30)
one 26 (spring washer 8mm)
