18

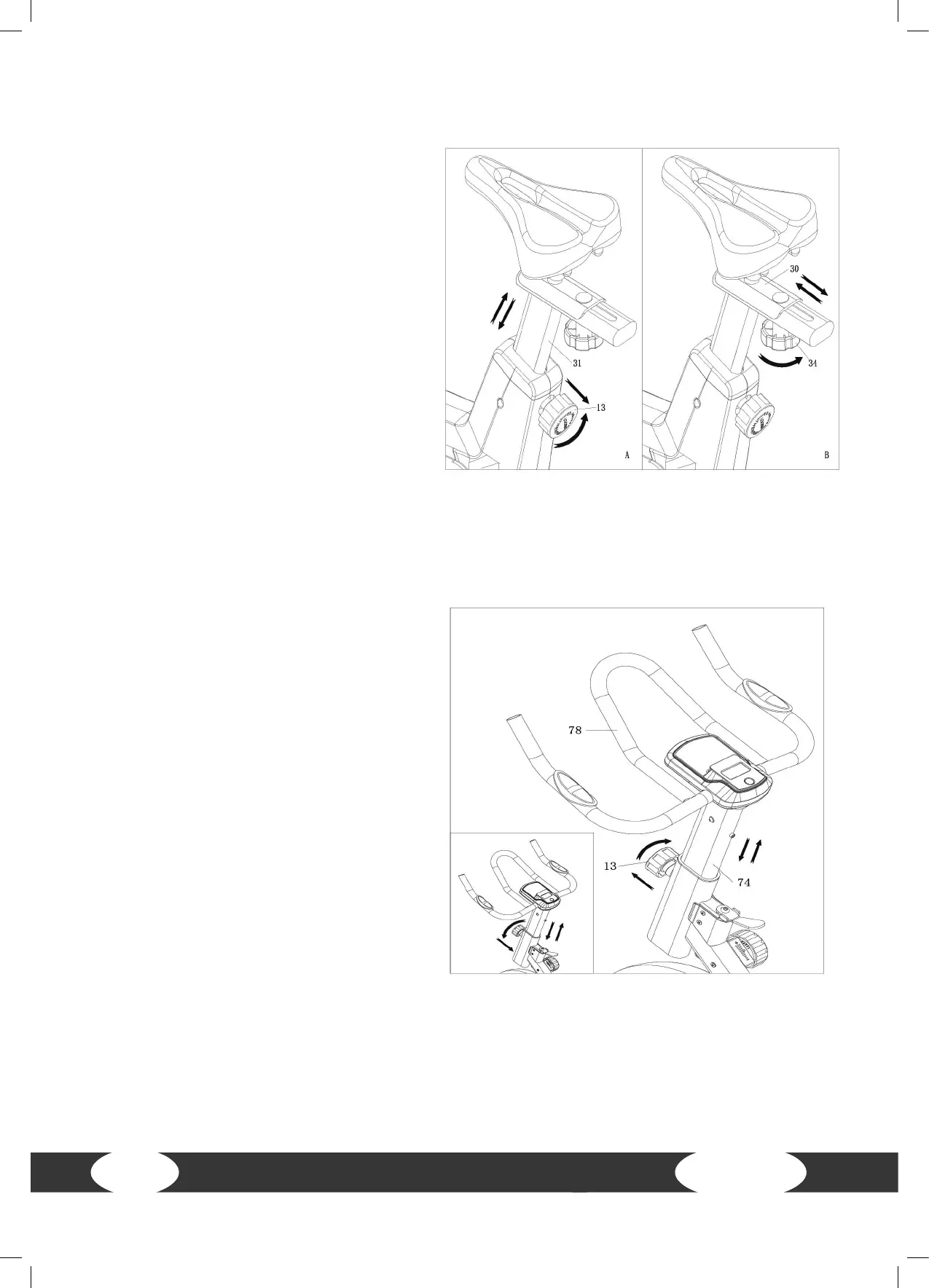

2.4.4 Saddle adjustment
The seat of this indoor cycle is adjustable
horizontally and vertically.
+ To adjust the saddle vertically, release
and pull out the knob (13) on the seat
frame (31) and lift or lower the saddle
to the desired height. After adjustment,
reinsert the knob (13) and tighten it
again (Fig. A).
+ To adjust the saddle horizontally, turn
the knob (34) on the seat slider (30) out
and then slide the seat slider (30) into
the desired position. After positioning,
tighten the knob (34) again (Fig. B).
2.4.5 Adjusting the handlebars
The height of the handlebar of the indoor
cycle is is adjustable
+ To adjust the height of the
handlebar(78), loosen and pull out the
knob (13) on the handlebar post (74)
and then push the handlebar post(74)
up or down to the desired height. After
adjustment, tighten the knob (13)
again.
