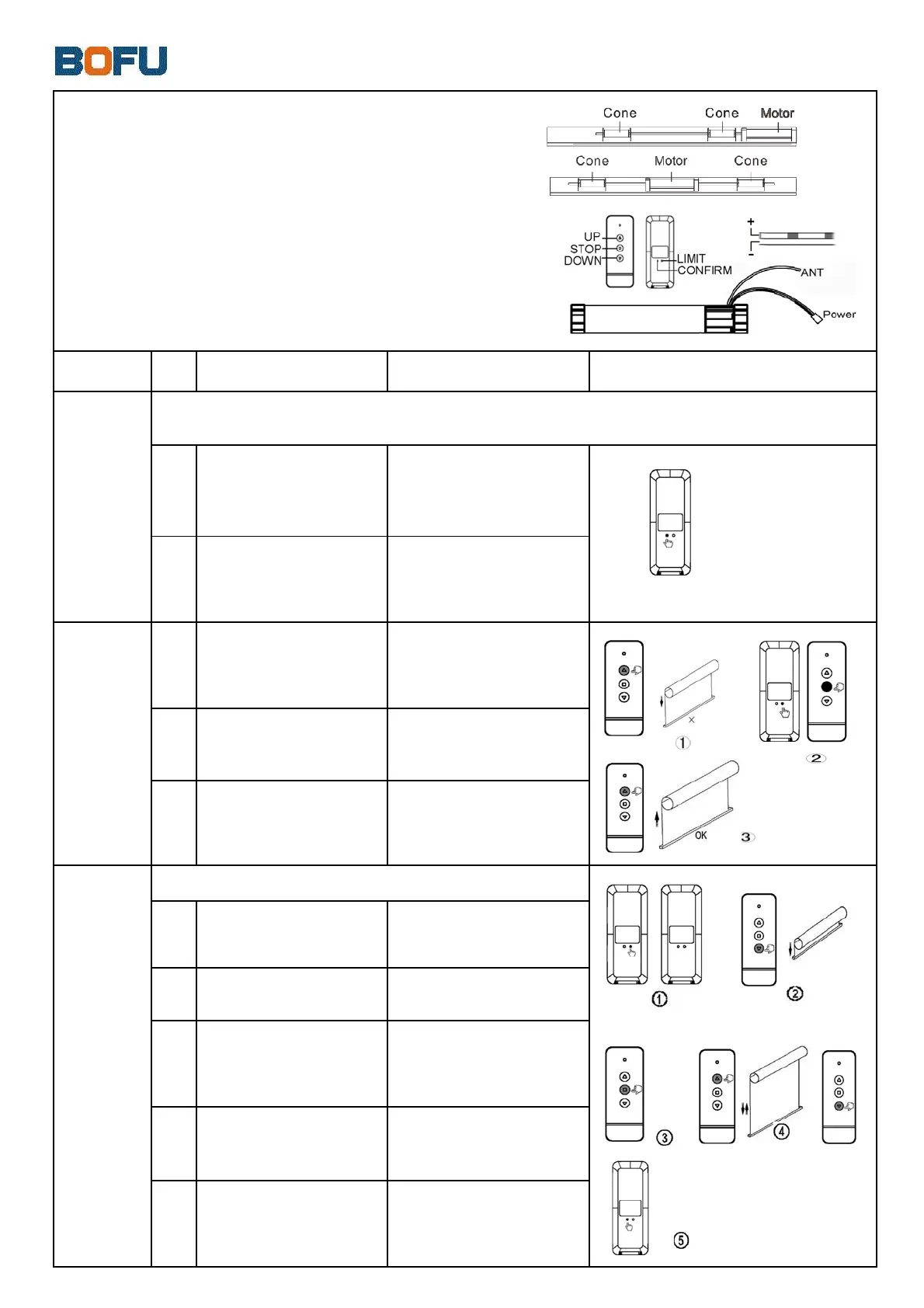

BOFU BRB23 - Motor and Transmitter Operation; Technical Specifications; Initial Transmitter Programming; Motor Rotation Direction

042.BRB237D01
Operation
Item
Item Operation Result Illustration
1
Connect motor with battery
pack
2
Within 60 seconds press
CONFIRM button on
Motor jogs, the program
has been done
Technical data
Motor Load Torque: 0.7Nm/34rpm, 1.1Nm/28rpm
Battery Specification: Li-ion Batter, 2000mAH, 7.4V.
Notify:
●Motor antenna should be as straight as
possible in the position far away from metal objects. Directly contact
metal objects is prohibited; otherwise, the receivindistance will be influenced seriously.
●Please charge the battery when the motor alarm or work faltering
Program the
first
transmitter
with motor
BRB23/BRB23D Rechargeable Battery Motor Instruction
● Please skip the step and go to next If manufacturer has programmed a transmitter with motor
before delivery
transmitter
has
been
done
.
1
Press UP button
If motor goes up, please do
nothing, If motor goes down,
please do next step
2
Press and hold LIMIT button
then press STOP button
Release both buttons when
motor jogs
3
Press UP button
Motor goes up, the motor
rotation direction has been
revised
1
Keep pressing LIMIT
button on any
programmed transmitter
Rleasethis button when
motor jogs
2
Press DOWN button on
transmitter
Motor runs down
3
Press STOP button When
motor running close to the
end-point of bottom limit
Motor stops
4
Press either UP or DOWN
button
Motor runs step by step to
adjust bottom limit
accurately
Setup
bottom limit
Change
motor rotate
direction
The whole limit setting must be finished at one times
5
Press CONFIRM button on
transmitter
Motor jogs, down way
setting has been done.
