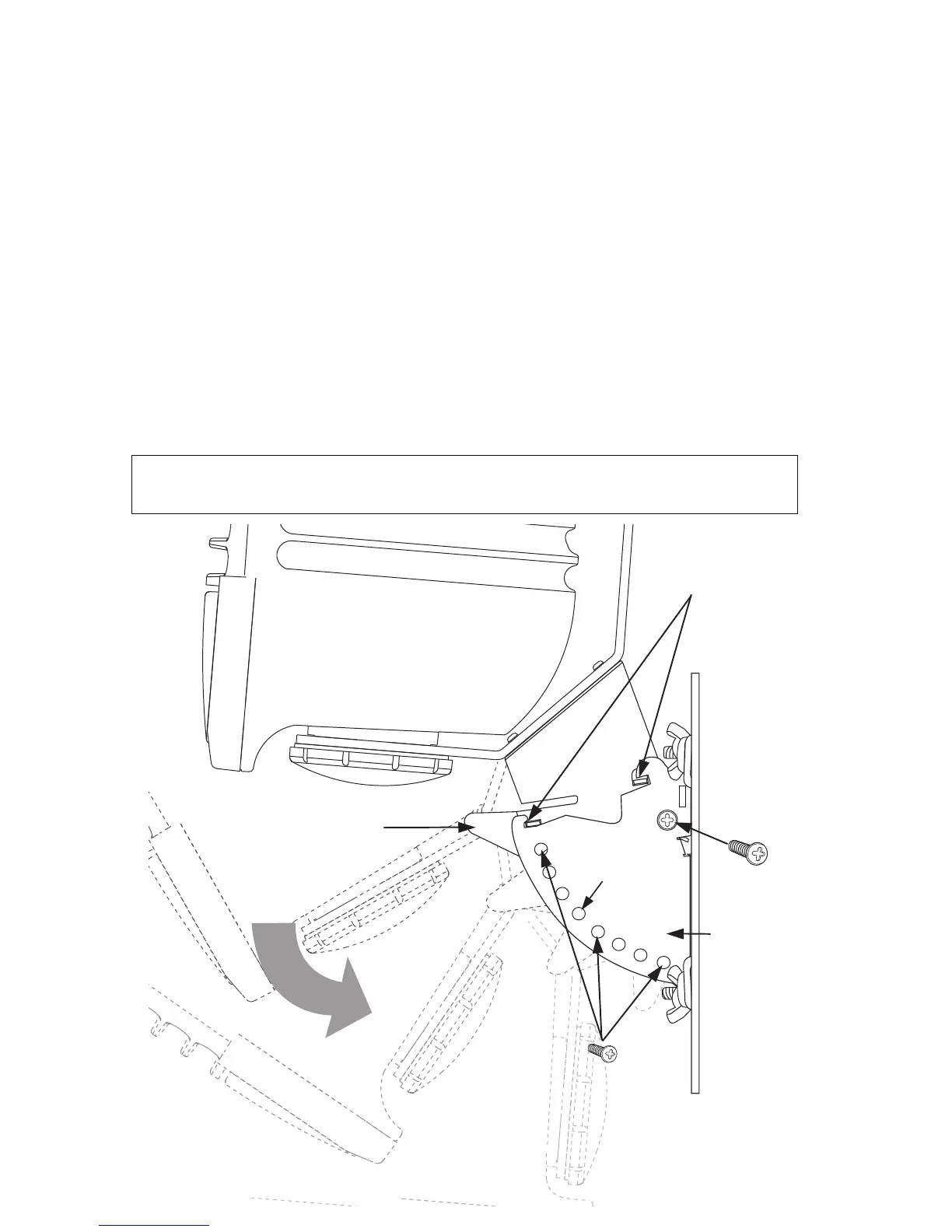

ENGAGED TABS
& CATCH SLOTS
#10 AXLE
SCREW
#10 ADJUST
SCREW
ANGLE
ADJUSTMENT
WINGS
ADJUST ANGLE
HOLES
A8/A12
SPEAKER
ASSEMBLY
STATIONARY
MOUNTING
ASSEMBLY
5
Speaker Assembly Angle Adjustment
and Locking Procedure
A) Add a drop of THREAD LOCKING COMPOUND to the 2 (#10) AXLE SCREWS
and loosely insert them in both sides of Stationary Mounting Bracket and into the
Speaker Assembly Bracket. This will provide safe retention of Speaker Assembly.
B) Pinch inward both sides of the ANGLE ADJUSTMENT WINGS on the Mounting
Bracket to rotate the Speaker Assembly to desired angle. Front Tabs on each
side will then engage ADJUST ANGLE HOLES on the Mounting Assembly.
C) Once angle is selected, apply Thread Locking Compound and insert 2 (#10) ADJUST
SCREWS into Adjustment Angle Holes directly below the Tab/Holes selected.
D) Finally, tighten all four Screws SECURELY.
IMPORTANT: ALL FOUR (2 AXLE & 2 ADJUST) SCREWS MUST BE IN PLACE
AND FULLY TIGHTENED FOR ASSEMBLY TO BE SAFELY SECURED.
