Bogen TMA812 User Manual

4

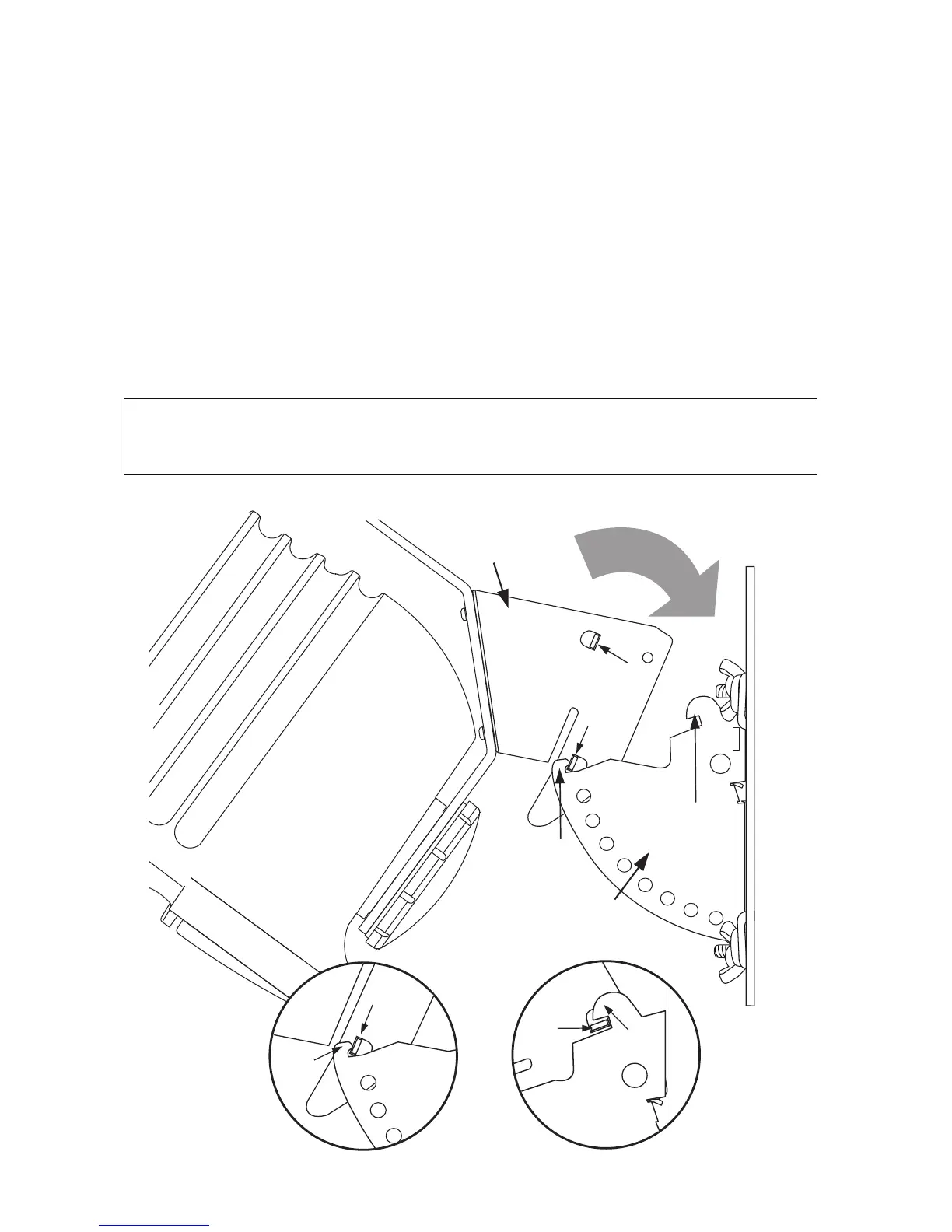

Attach Speaker Mounting Assembly
to Stationary Mounting Bracket
STATIONARY
MOUNTING
ASSEMBLY
ADJUSTABLE
MOUNTING
BRACKET
A8/A12
SPEAKER
ASSEMBLY
FRONT
TAB
A) Place Speaker Mounting Assembly on the Stationary Mounting Assembly by putting
the FRONT TABS of Speaker Assembly into the two FRONT CATCH slots of the
Mounting Assembly (see INSET 1).
B) With both Front Tabs hooked securely into both Front Catch slots, gently rotate Speaker
Assembly back until both REAR TABS “snap” into both REAR CATCH slots (see INSET 2).
When properly engaged, this will provide TEMPORARY support for the Speaker Assembly.
DO NOT LEAVE SPEAKER IN THIS POSITION WITHOUT COMPLETING THE
INSTALL PROCEDURES SHOWN WITHIN SECTION 5.
IMPORTANT: BE SURE THAT ALL TABS AND CATCH SLOTS ARE PROPERLY
ENGAGED BEFORE LETTING GO OF THE SPEAKER ASSEMBLY. SERIOUS
INJURY COULD RESULT WITH IMPROPER CONNECTIONS.
FRONT
CATCH
FRONT
TAB
INSET 1
INSET 2
REAR
TAB
FRONT
CATCH
REAR
CATCH
REAR
CATCH
REAR
TAB
