Bohn BMA - Dimensional Data

12

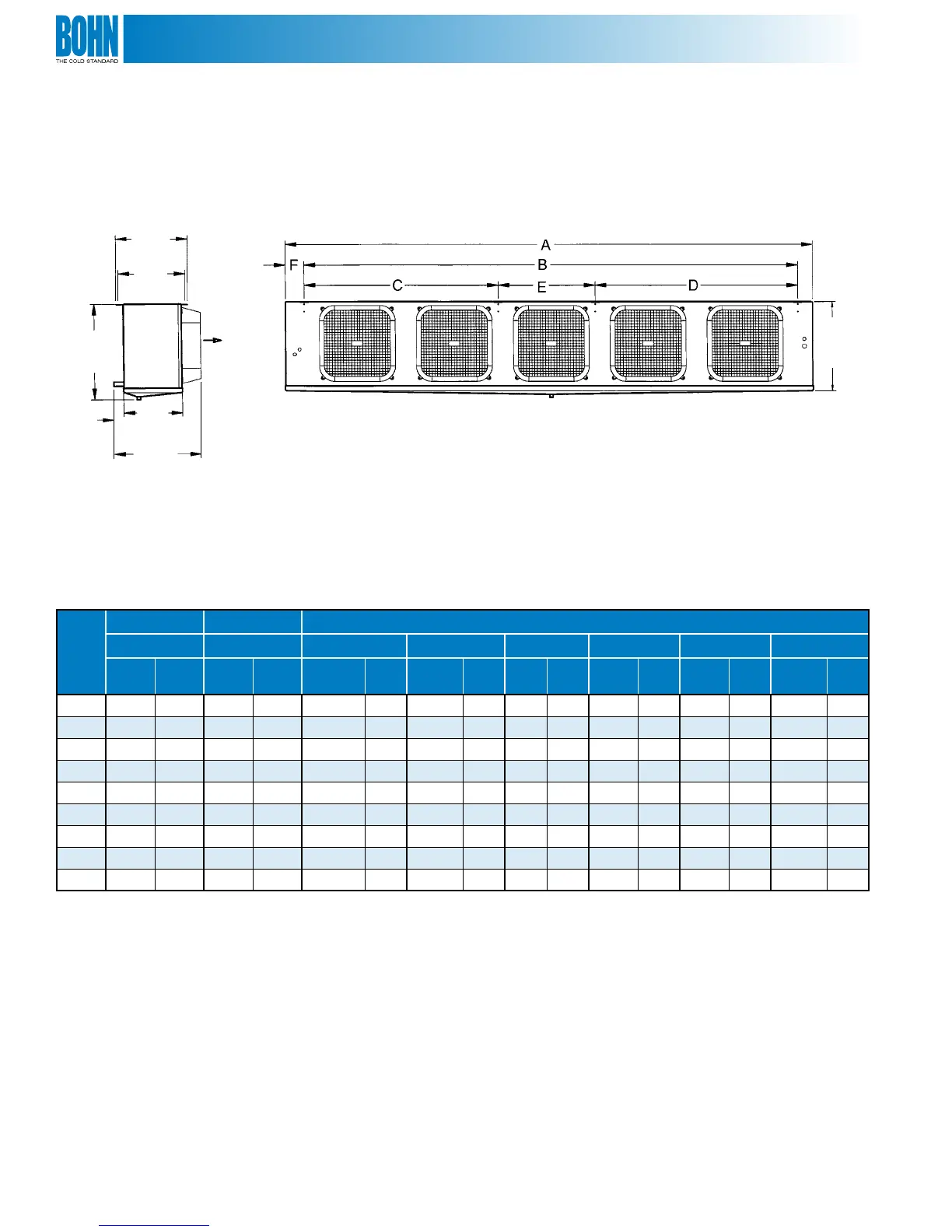

Dimensional Data
All Models Dimensions
Model
6 FPI Models 4 FPI Models Dimensions
Defrosts Defrosts A B C D E F
Elec.
Hot
Gas
Elec.
Hot
Gas
in. mm in. mm in. mm in. mm in. mm in. mm
BMA130 BME101 - - - 39-5/16 1,000 30-1/4 770 - - - - - - 4-15/16 125
BMA155 BME140 - BML100 - 39-5/16 1,000 30-1/4 770 - - - - - - 4-15/16 125
BMA245 BME190 BMG190 BML165 BMF165 67-5/16 1,710 58-1/4 1,480 - - - - - - 4-15/16 125
BMA300 BME260 BMG260 BML220 BMF220 67-5/16 1,710 58-1/4 1,480 - - - - - - 4-15/16 125
BMA365 BME310 BMG310 BML250 BMF250 95-5/16 2,420 86-1/4 2,190 - - - - - - 4-15/16 125
BMA450 BME390 BMG390 BML330 BMF330 95-5/16 2,420 86-1/4 2,190 - - - - - - 4-15/16 125
BMA510 BME430 BMG430 BML370 BMF370 123-5/16 3,130 114-1/4 2,900 56 1,420 58-1/4 1,480 - - 4-15/16 125
BMA600 BME520 BMG520 BML440 BMF440 123-5/16 3,130 114-1/4 2,900 56 1,420 58-1/4 1,480 - - 4-15/16 125
BMA710 BME620 - BML530 - 138-13/16 3,530 129-3/4 3,300 51 1,300 53-1/4 1,350 25-1/2 650 4-15/16 125
NOTE: Evaporator mounting brackets accept up to 1/2" hanger rod
All Models Dimensional Data
22-3/4"
578 mm
15-1/2"
390 mm
23 -1/4"
590 mm
2-1/2"
64 mm
24"
608 mm
18-7/8"
480 mm
17-1/2"
444 mm
Electrical
Connection
End
Refrigerant
Connection
End
Air
Flow
