BOLD SX Series - Insert and Secure New Cylinder; Adjust Cylinder Length for Door Fitting; Reattach Outside Button

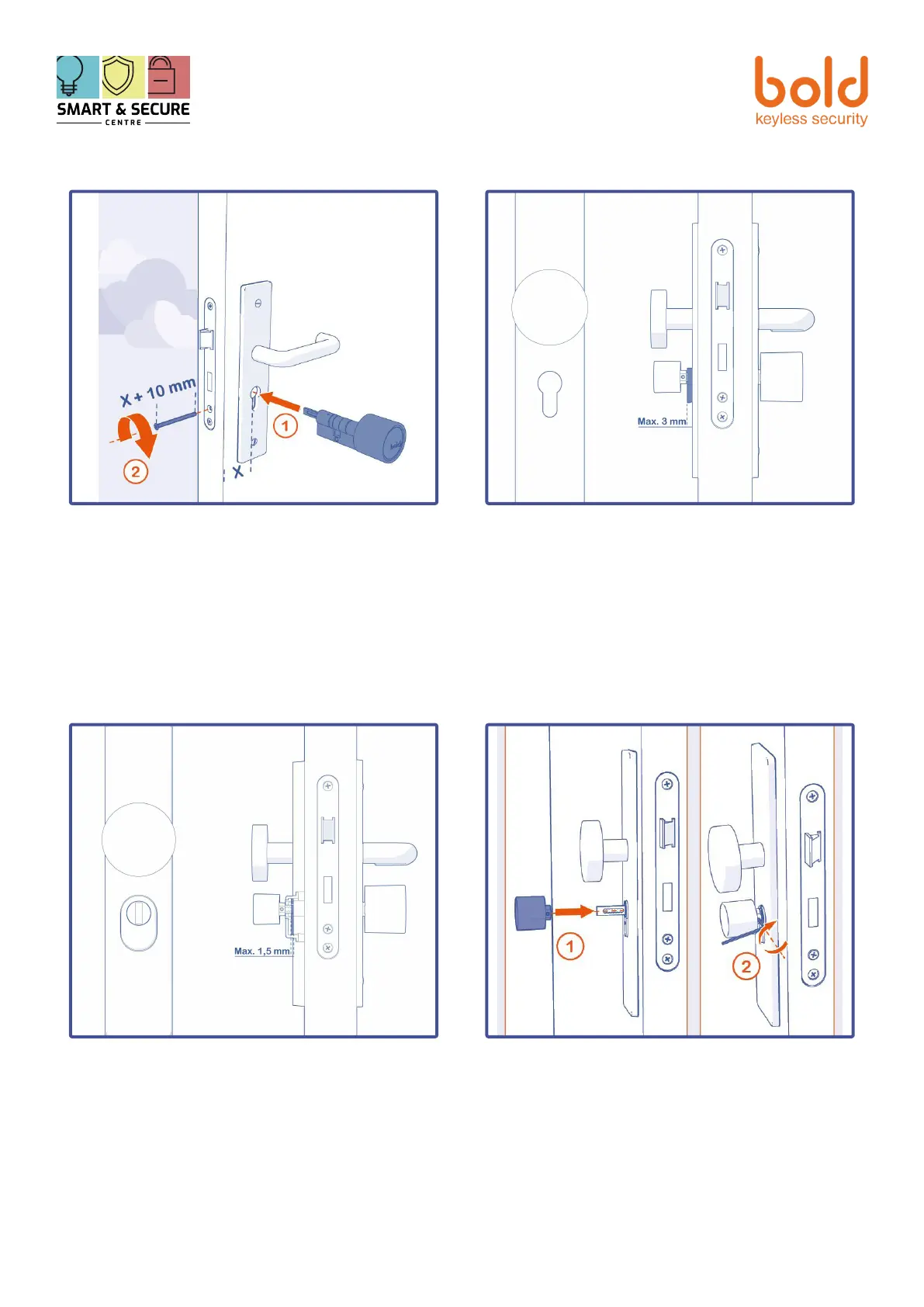

5. Insert the lock into the cylinder opening.
6. Use a screwdriver to tighten the cylinder
locking bolt of the lock.
7. Do not over-tighten the cylinder locking
bolt. This may adversely aect the function
of the lock.
For a door element with anti-core pulling
fittings there is a maximum overrun of the
cylinder of 1.5 mm. Use one of the supplied
adapters to adjust the length of the lock.
Always consult the manual of the anti-corrosion
fitting before fitting the lock.
For a door element with a normal fitting, a
maximum overrun of the cylinder of 3 mm
applies. Use one of the supplied adapters to
adjust the length of the lock.
8. Put the outside button back on the lock.
9. Use the included inbus key to secure the
lock’s inbus bolt.
