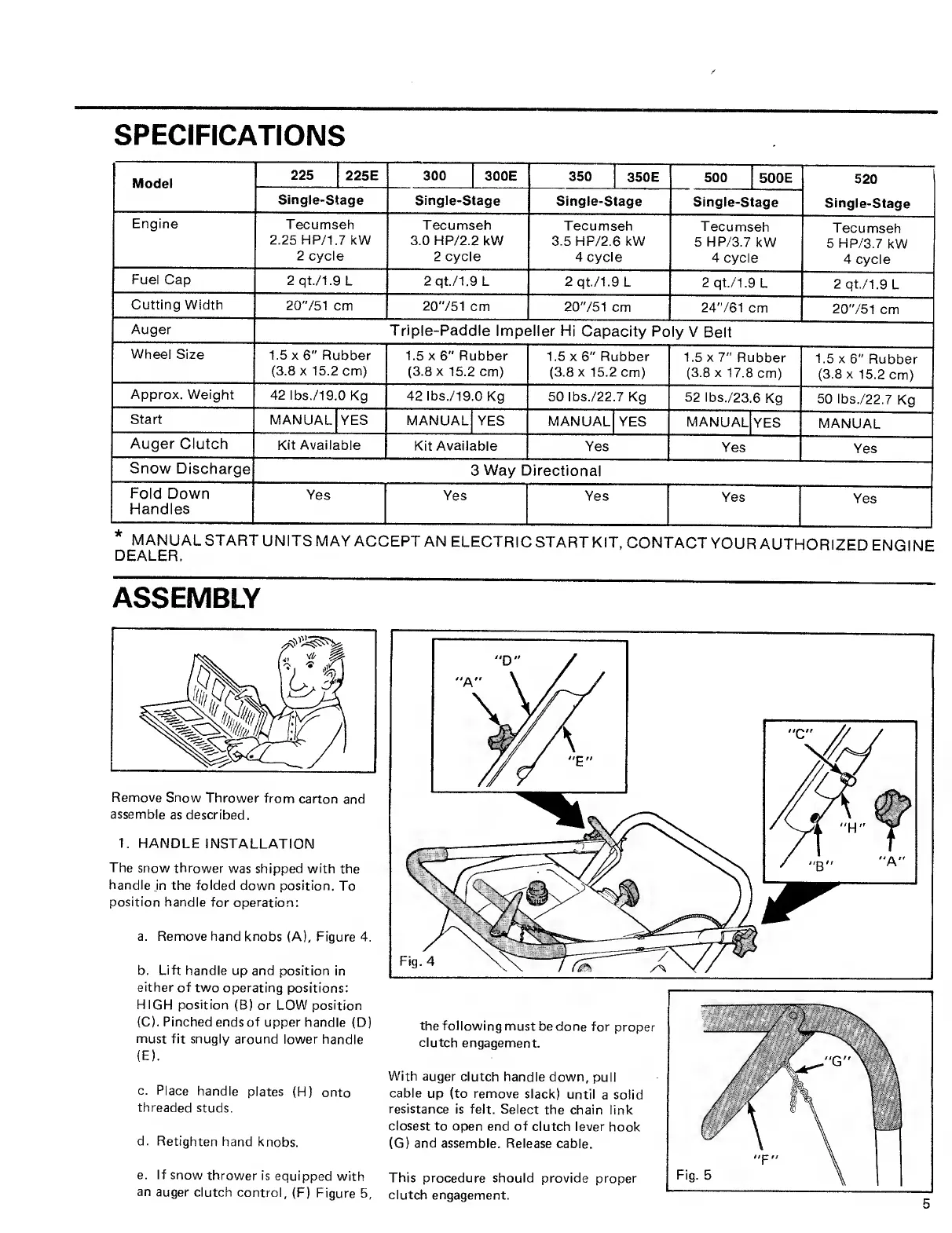

SPECIFICATIONS
Model
225
225E
|
300
300E
350
350E
500
500E
520
Single-Stage
Single-Stage
Single-Stage
Single-Stage
Single-Stage
Engine
Tecumseh
2.25
HP/1.7
kW
2
cycle
Tecumseh
3.0
HP/2.2
kW
2
cycle
Tecumseh
3.5
HP/2.6
kW
4
cycle
Tecumseh
5
HP/3.7
kW
4
cycle
Tecumseh
5
HP/3.7
kW
4
cycle
Fuel
Cap
2
qt./1.9
L
2
qt./1.9
L
2
qt./l
.9
L
2
qt./l
.9
L
2
qt./l.9
L
Cutting
Width
20"/51
cm
20"/51
cm
20"/51
cm
24'V61
cm
20"/51
cm
Auger
Triple-Paddle
Impeller
Hi
Capacity
Poly
V
Belt
Wheel
Size
1.5
x
6"
Rubber
(3.8
x
15.2
cm)
1.5
x
6"
Rubber
(3.8
x
15.2
cm)
1.5
x
6"
Rubber
(3.8
x
15.2
cm)
1.5
x
7
"
Rubber
(3.8
x
17.8
cm)
1.5
x
6"
Rubber
(3.8
x
15.2
cm)
Approx.
Weight
42
lbs./19.0
Kg
42
lbs./19.0
Kg
50
lbs./22.7
Kg
52
lbs./23.6
Kg
50
lbs./22.7
Kg
Start
MANUAL
YES
MANUAL
YES
MANUAL
YES
MANUAL
YES
MANUAL
Auger
Clutch
Kit
Available
Kit
Available
Yes
Yes
Yes
Snow
Discharge
3
Way
Directional
Fold
Down
Handles
Yes
Yes
Yes
Yes
Yes
*
MANUAL
START
UNITS
MAY
ACCEPT
AN
ELECTRIC
START
KIT,
CONTACT
YOUR
AUTHORIZED
ENGINE
DEALER.
ASSEMBLY
Remove
Snow
Thrower
from
carton
and
assemble
as
described.
1.
HANDLE
INSTALLATION
The
snow
thrower
was
shipped
with
the
handle
in
the
folded
down
position.
To
position
handle
for
operation:
a.
Remove
hand
knobs
(A),
Figure
4.
b.
Lift
handle
up
and
position
in
either
of
two
operating
positions:
HIGH
position
(B)
or
LOW
position
(C).
Pinched
ends
of
upper
handle
(D)
must
fit
snugly
around
lower
handle
(E).
c.
Place
handle
plates
(H)
onto
threaded
studs.
d.
Retighten
hand
knobs.
e.
If
snow
thrower
is
equipped
with
an
auger
clutch
control,
(F)
Figure
5,
the
following
must
be
done
for
proper
clutch
engagement.
With
auger
clutch
handle
down,
pull
cable
up
(to
remove
slack)
until
a
solid
resistance
is
felt.
Select
the
chain
link
closest
to
open
end
of
clutch
lever
hook
(G)
and
assemble.
Release
cable.
This
procedure
should
provide
proper
clutch
engagement.
