3
1
2
- 2 pcs
- 1 pcs
- 1 pcs
- 1 pcs
A - 2 pcs
- 2 pcs
- 4 pcs
- 4 pcs
5mm - 1 pcs
4mm - 1 pcs

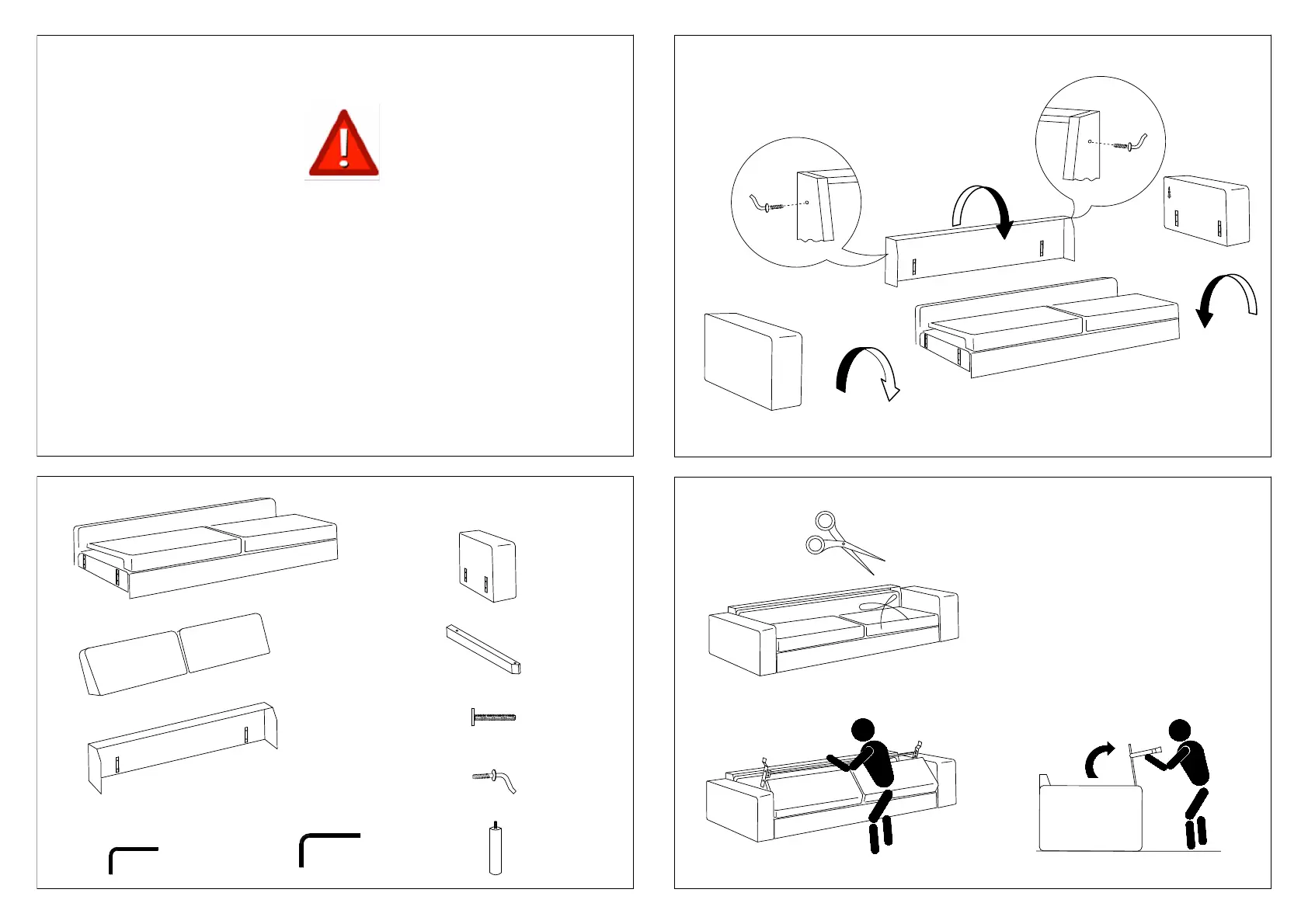

STEP 1: mount the hooks on the back and
mount the back on the sofa
STEP 2: mount the armrests
STEP 3: cut off the twine
WARNING!!!
Never fully open the sleeping mechanism before complete sofa assembly!
Never use the lift-up wheels if you want to open the sleeping mechanism.
It is not possible for technical reasons and injuries may occur!
When using the sleeping mechanism the sofabed must stand firmly
on the legs!
Assembly of this sofa is the task for two people!
LEFT
RIGHT
STEP 4: open the mechanism max. 90°
C
B
B
STOP
To Next Page
