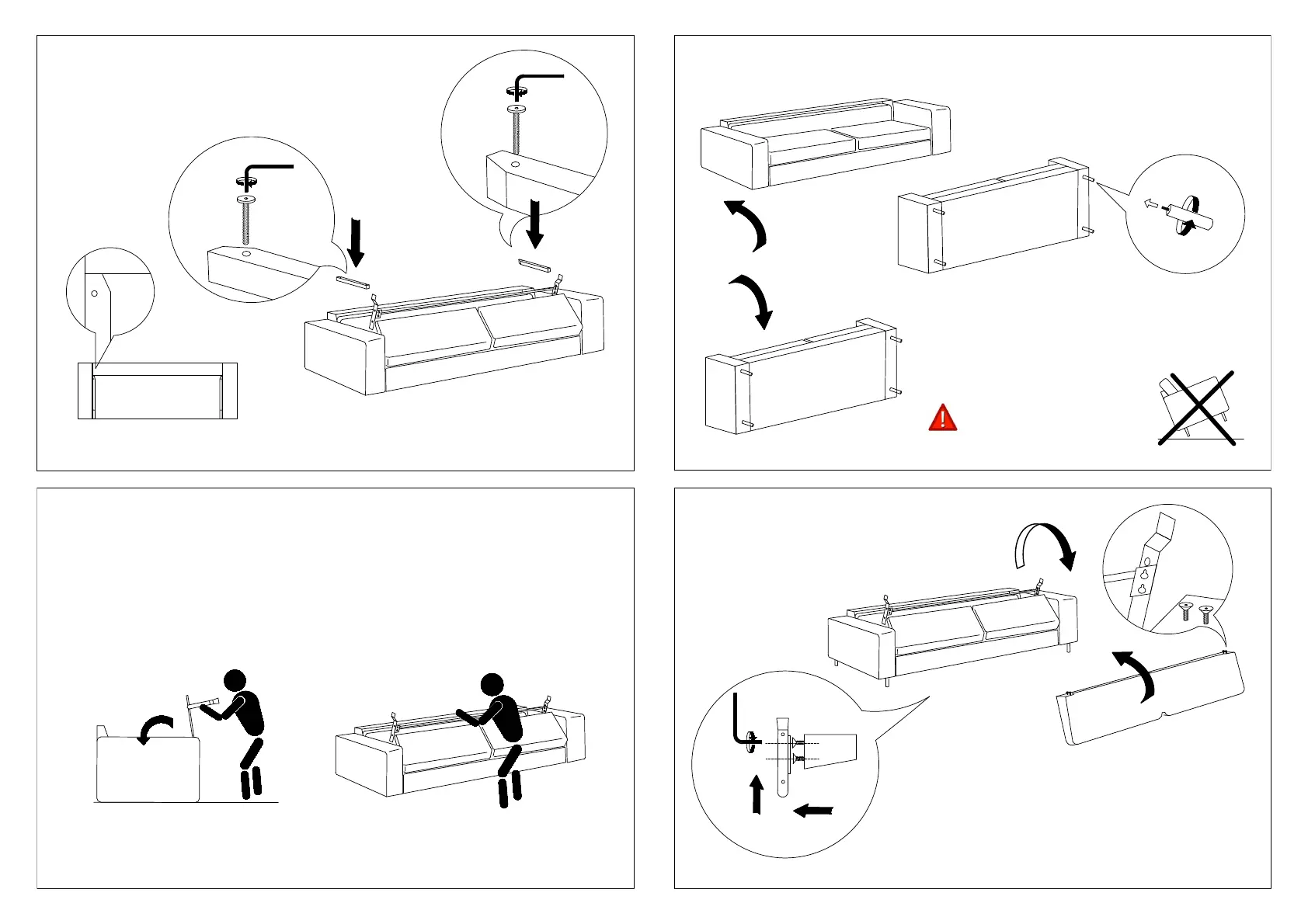

STEP 5: mount the wooden struts with the screws
4mm
STEP 11
STEP 12
STEP 13
6
7
Bitte ziehen Sie die Schrauben/Beine
nach 4-5 Wochen an-und bitte alle
4-5 Monate wiederholen.
Please retighten the screws/legs after
4-5 weeks of use and then
subsequently every 4-5 month.
5mm
STEP 7: turn the sofa on the back
STEP 8: mount all legs
STEP 10: open the mechanism max. 90°
the same way as in step 4
STEP 9: turn the sofa back to standing position
carefully, that the legs are not broken
STEP 11,12,13: fix the back to the mechanism
5
STEP 6: close the mechanism
STEP 14: close the mechanism
Detail
C
LEFT
Top view
4mm
RIGHT
