Bomet S239 - Page 30

- 28 -

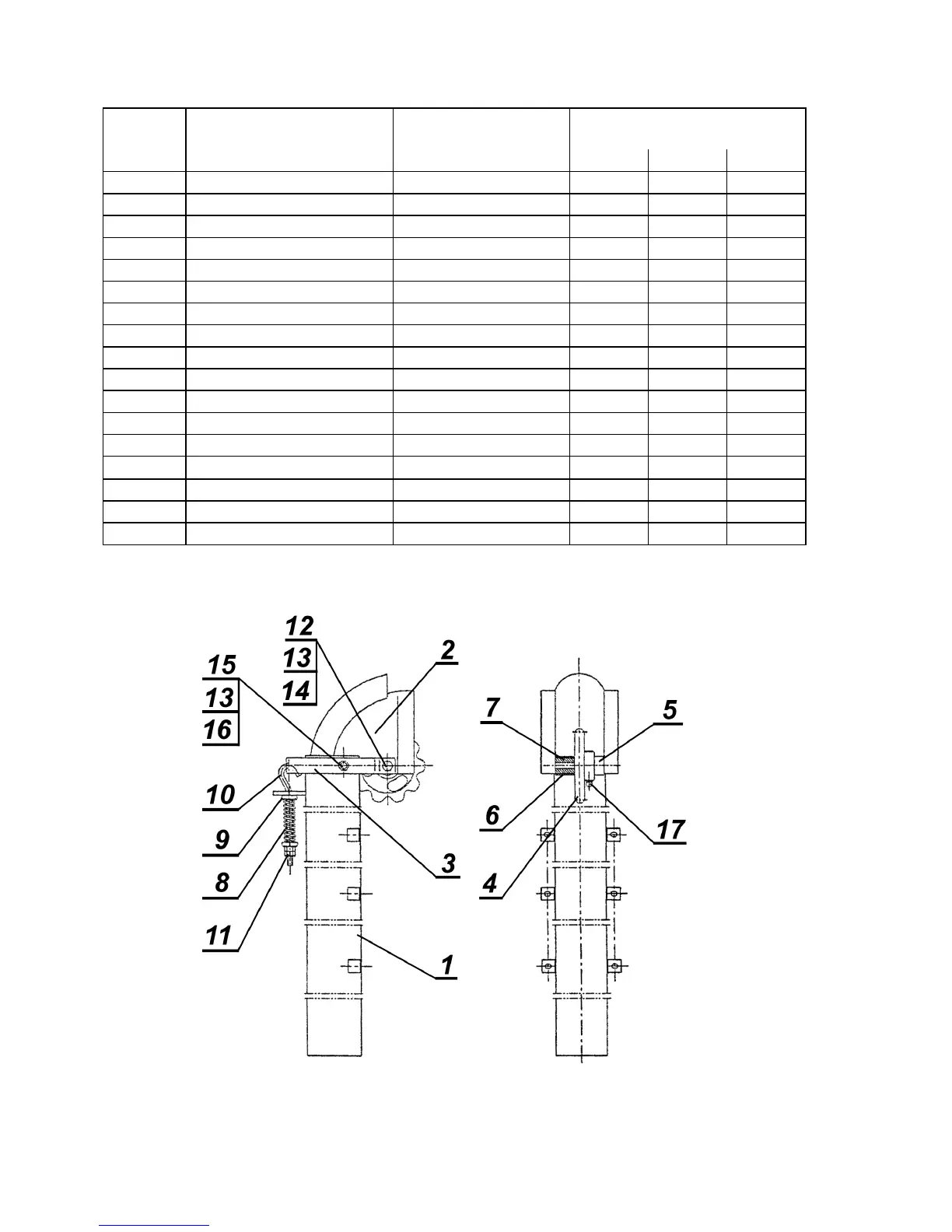

Table 3. Tightening and chuting assembly
Pos.
in the figure
Part name
KTM symbol
or norm number
Number of items
S239
S239/1
S239/2
1
Chute tube
3239-00-03-01
2
2
1
2
Head body
3239-00-03-02
2
2
1
3
Clamp
3239-00-03-03
2
2
1
4
Guide wheel
3239-00-03-04
2
2
1
5
Short distance bushing
3239-00-03-05
2
2
1
6
Long distance bushing
3239-00-03-06
2
2
1
7
Pivot
3239-00-03-07
2
2
1
8
Tensioner spring
3239-00-03-08
2
2
1
9
Washer under the spring
3239-00-03-09
4
4
2
10
Screw of the tensioner
3239-00-03-10
2
2
1
11
Nut M10 4-B
PN-86/M-82144
4
4
2
12
Screw M12x130 3,6-B
PN-85/M-82101
2
2
1
13
Nut M12 4-C
PN-86/M-82144
10
10
5
14
Spring washer 12.2
PN-77/M-82008
2
2
1
15
Screw M12x45 3,6-III
PN-74/M-82209
4
4
2
16
Washer 13
PN-78/M-82005
4
4
2
17
Grease nipple
PN-76/M-86002
2
2
1
