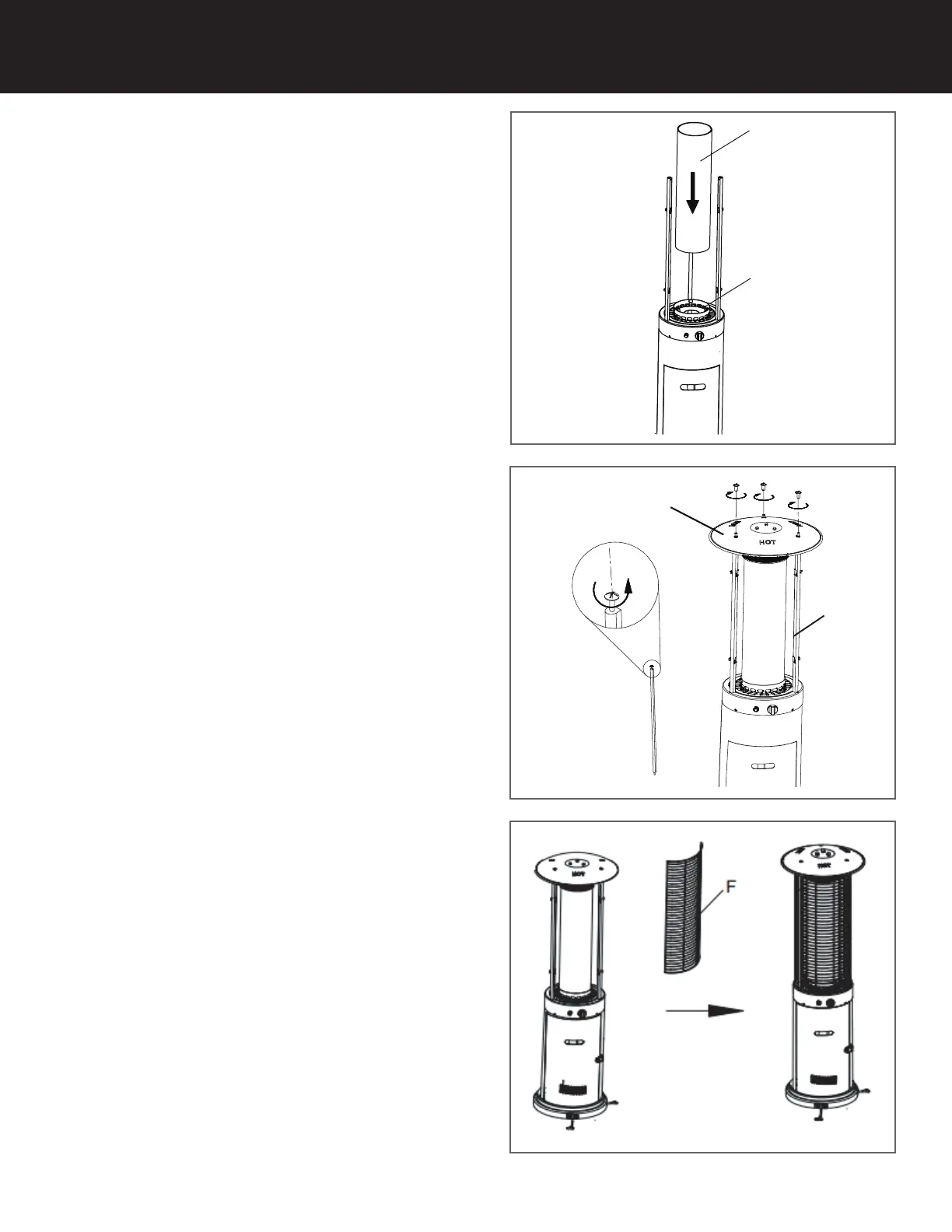

7. Place the glass tube (E) into the top of the glass
tube ring (B).
8. Remove the 3 preassembled screws from the
upper supporters (I). Place the upper reector (A)
onto the top of the upper supporters (I). Replace
the 3 screws removed at the beginning of this
step to secure the upper combination (A) to the
upper supporters (I). Be sure to fully tighten.
9. Attach the 3 mesh guards (F) onto the hooks at
the top of the upper supporters (I).
E
B
I
A
