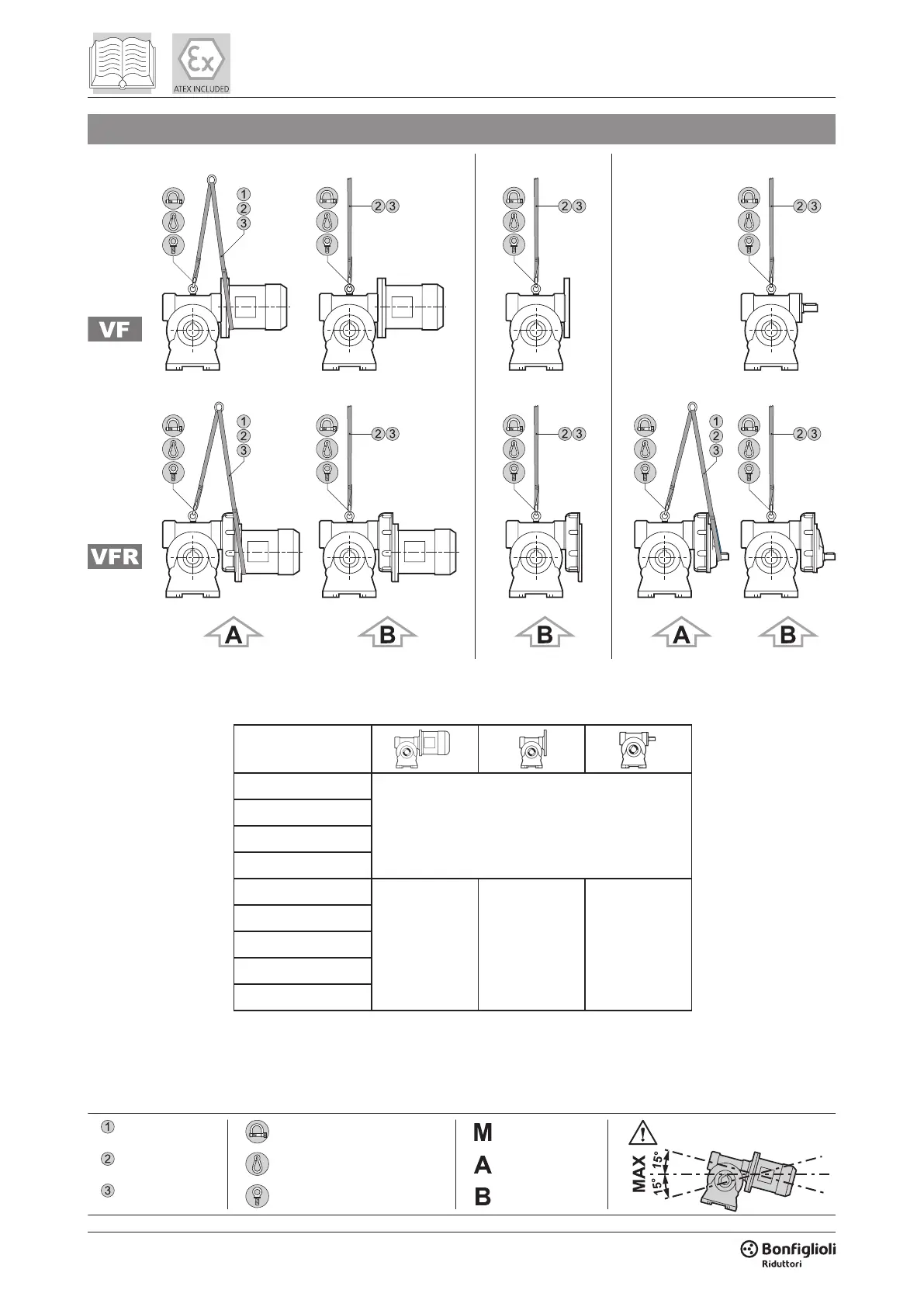

Strap and ring
Rope and hooks
Open strap
and eye-bolts
Shackle
(for use with strap)
Safety hook
(for use with rope)
Eye-bolt (already present
on
VF130...VF250 gearboxes)
Lift manually
(weight ≤ 15 kg)
Lift according
to drawing A
Lift according
to drawing B
Maximum tilt permitted during
movement: 15°
VF Series
VF 27
M
VF 30
VF 44 VFR 44
VF 49 VFR 49
VF 130 VFR 130
A - B B A - B
VF 150 VFR 150
VF 185 VFR 185
VF 210 VFR 210
VF 250 VFR 250
