28 / 64
IOM Manual VF-W_ATEX_gb - Translation of original instructions in Italian - Rev 03_0 - 30/09/16
Do not mix oils of different makes or specications. Make sure also that the oil is highly resistant
to foaming and is EP (Extreme Pressure) rated.
If you do not have the same type of oil, completely drain the gearbox and ush it out thoroughly with the
new oil to remove all traces of the old oil and any contaminants from inside the casing before lling the
gearbox with the new oil.
Oil level can be checked by removing the oil level check plug and checking that the oil spills from the
bottom edge of the hole.
Only use recommended oils to ll and top up the gearbox.

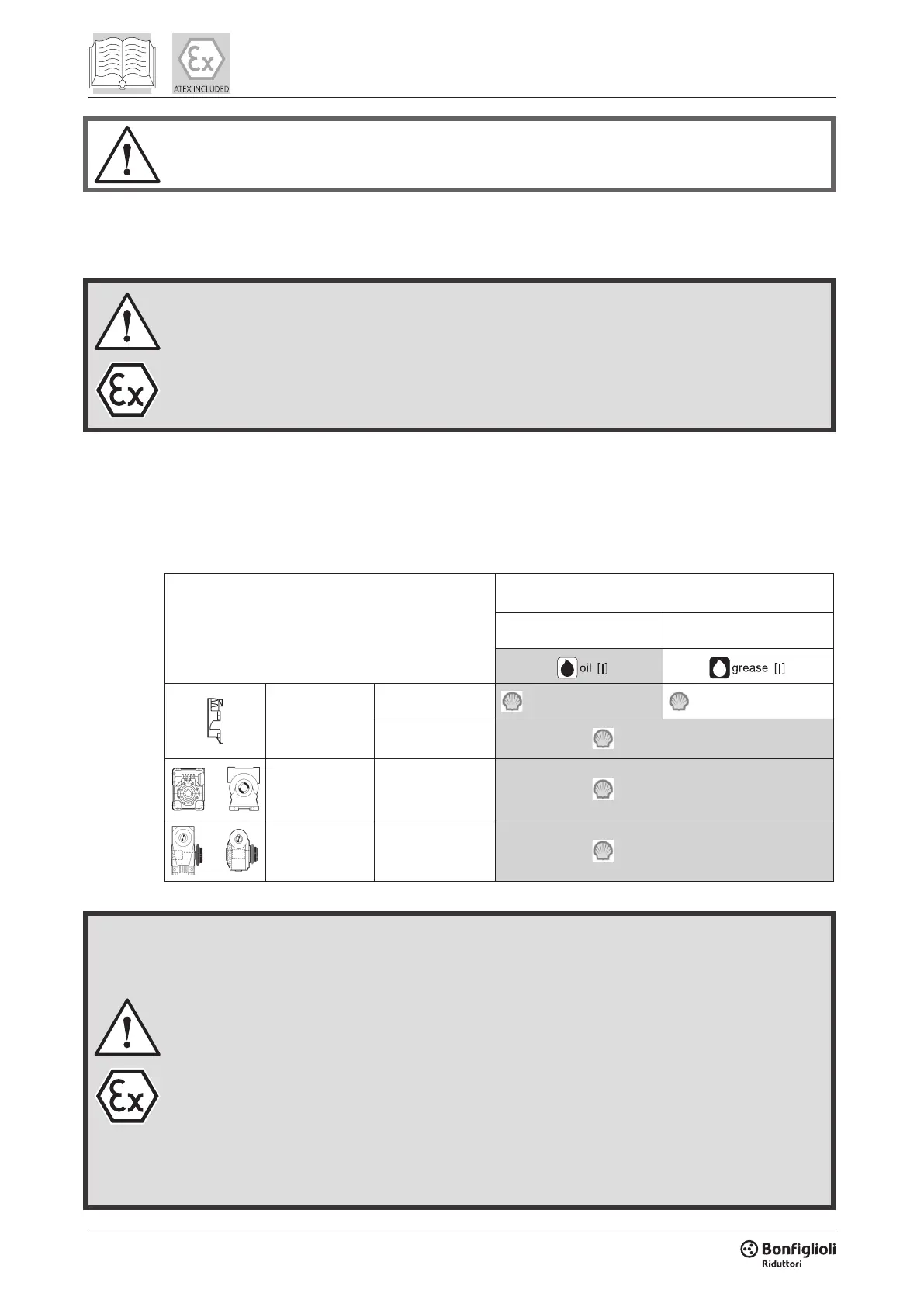

5.9.1 Recommended / permitted lubricants
When using a lubricant other than the recommended SHELL
lubricant, be sure it is a synthetic lubricant
with equivalent viscosity and composition and added with adequate anti-foaming agents.
Lubricants for ATEX-specied gearboxes
Greases:
• Klüber Asonic GHY 72 (for bearings)
• Klüber Klüberquiet BQ 72-72 (for bearings)
• Klüberpaste 46 MR 401 (for easy engagement of cylindrical couplings)
• ITP Fluorocarbon gel 880 (for lubricating sliding seals)
Oils (alternatives to Shell Omala S4 WE 320 - standard supply):
• Shell: Tivela Oil S320
• Klüber: Klübersynth GH 6 320
• Total: Carter SY 320
• Mobil: Glygoyle 320
• Castrol Alphasyn PG 320
B3 - B6 - B7 - B8 - V5 V6
WR 63...WR 86
OMALA S4 WE 320 GADUS S5 V142W 00
VFR 44...VFR 250
WR 110
OMALA S4 WE 320
W 63...W 110
VF 44...VF 250
OMALA S4 WE 320
W 63...W 110
VF 44...VF 49
OMALA S4 WE 460
mounting position
Helical
reduction
Worm gear unit
Worm gear unit
c/w torque
limiter
