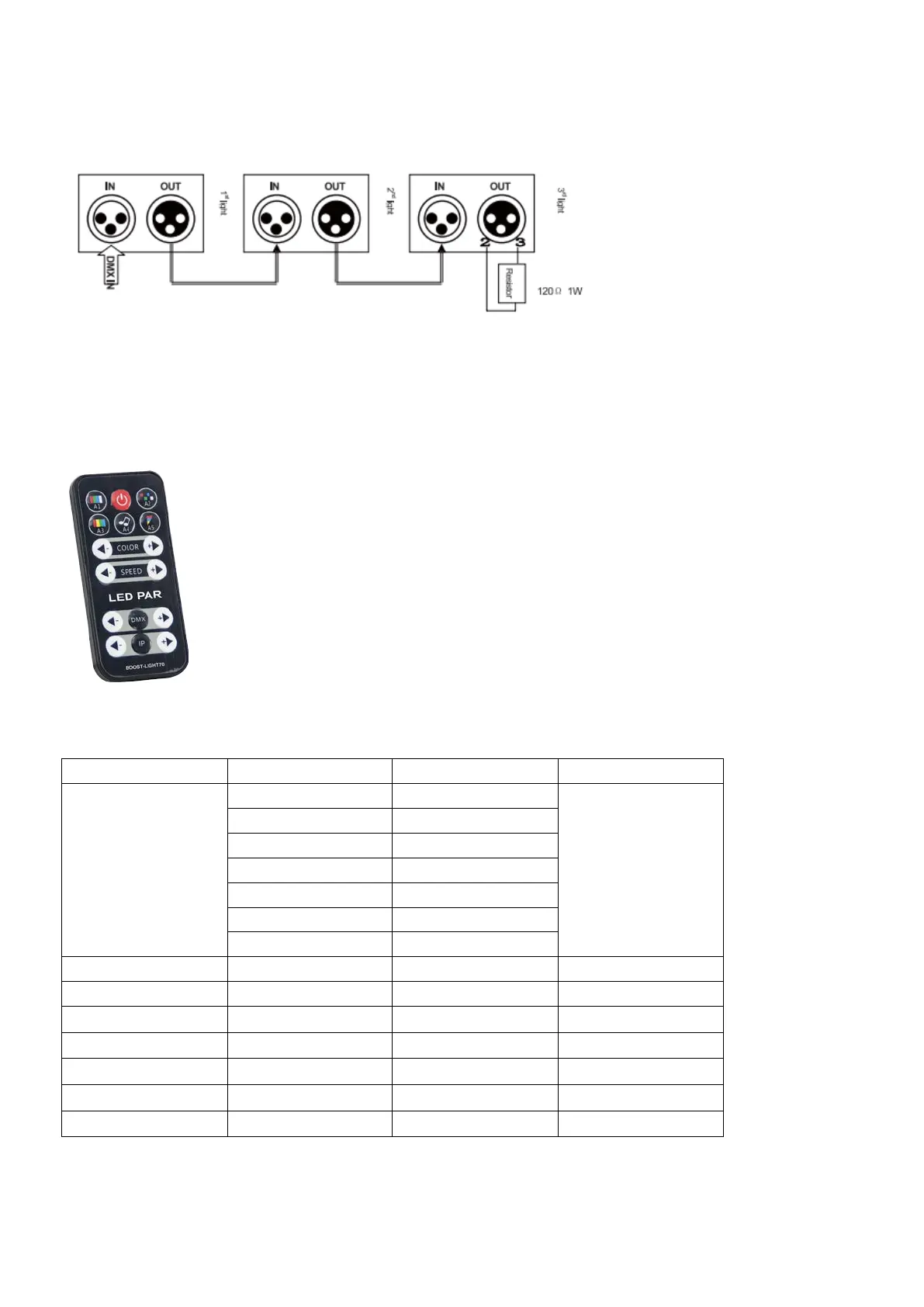

Connection of Signal Cable
You can use the 3-pin XLR cable to connect the OUT socket of the first light and the IN socket of the following
light. Connect all the lights as shown:
A DMX signal terminator is recommended on the last unit of the chain. DMX terminator is a XLR connector with
a 120Ω resistor between the pin 2 and pin 3 of the XLR connector
Remote Control:
A1: Effect 1 All bright
A2: Effect 2 Jump change
A3: Effect 3 Gradual change
A4: Sound activated
A5: Strobe
Color: Color adjustment
Speed: Speed adjustment
DMX: Selection of DMX channel
IP: Running effect
DMX Channels:
Channel
Value
Description
Reminder
CH 1
0-10
No function
Macro function
11-50
Macro A1
51-100
Macro A2
101-150
Macro A3
151-200
Macro A4
201-255
Macro A5
210-255
Red+Green+Blue
CH2
0-255
Macro color
CH3
0-255
Speed adjustable
CH4
0-255
Master dimming
CH5
0-255
Red dimming
CH6
0-255
Green dimming
CH7
0-255
Blue dimming
CH8
0-255
White dimming
