10
ENBoretti Carbone / User guide - Installation advice

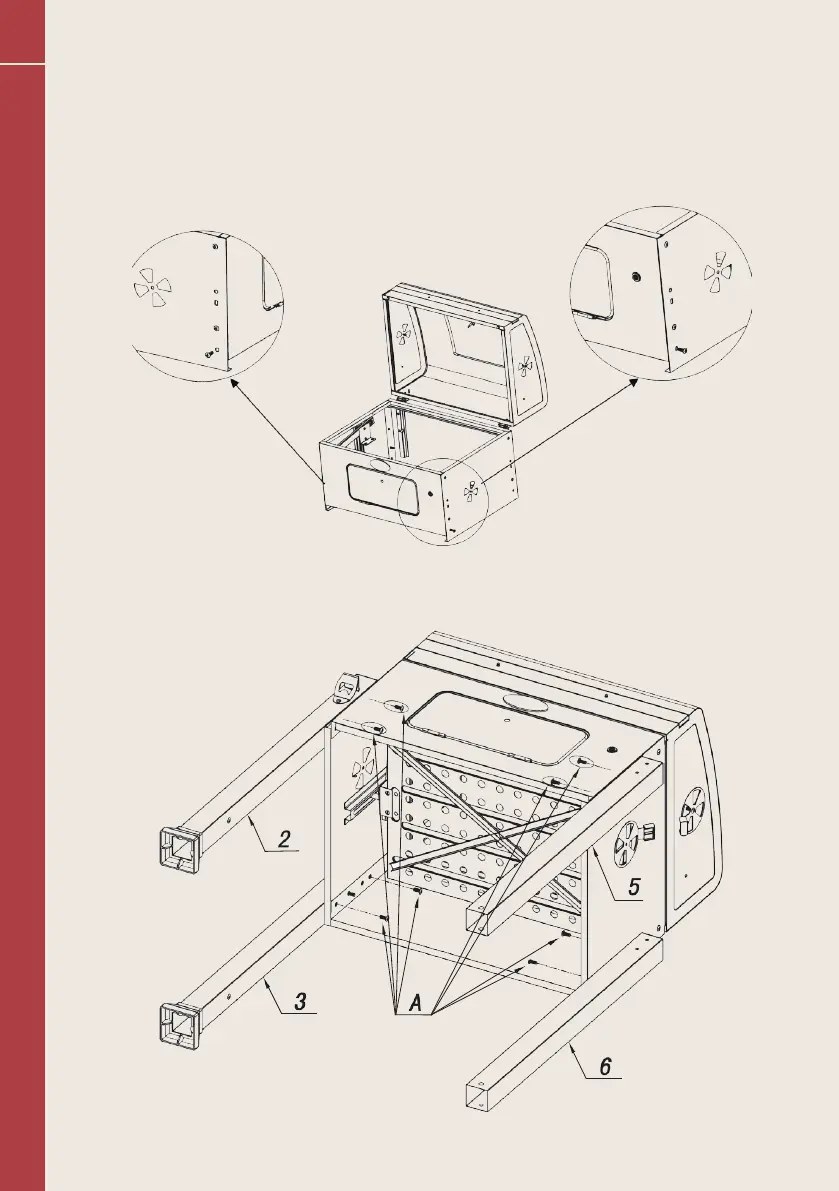

3. Assembly drawings
Step 1
Loosen the screws as shown in the drawing
Step 2
Use 8 times screw A and to fasten the legs to the body.
