BORNIAK BBDST-70 - Page 13

Page 13
WsunąćWsunąć
WsunąćWsunąć
WsunąćWsunąć
WsunąćWsunąć
Nałożyć i Nałożyć i
zaczepićzaczepić
WsunąćWsunąć

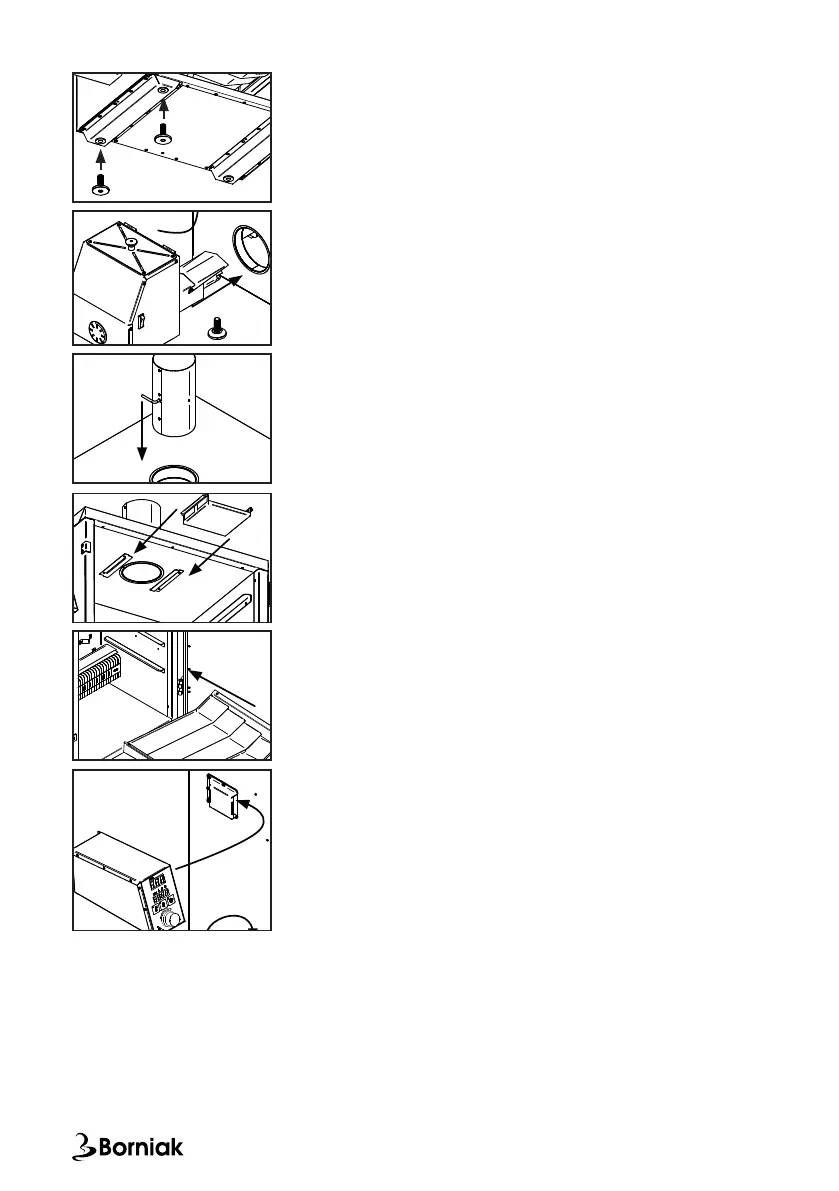

4. Place the device in a suitable place, slightly tilting the smoking
unit, insert the legs into the slots on the bottom and adjust
them so that the device reaches the level.
5. Insert the protruding heating element of the smoke generator
into the side hole on the left side of the smoker. Tilt the
generator slightly to put it on the latches.
6. Insert the chimney into the hole at the top of the smoker. Pay
attention to the correct position of the throttle valve.
7. Insert the condenser under the chimney.
8. Insert the drip tray onto the bottom rack.
9. Mount the electronic control panel - see the description p. 14.
WsunąćWsunąć
WsunąćWsunąć
WkręcićWkręcić
Nałożyć i Nałożyć i
zaczepićzaczepić
WsunąćWsunąć
WkręcićWkręcić
Wsunąć i Wsunąć i
dokręcićdokręcić
WsunąćWsunąć
WsunąćWsunąć
When smoking very fatty foods on the grates, please use an additional drip tray or metal
bowl over the separating plate to catch melting fat to prevent a fat re. Position the tray in
the second slot from the bottom. With the size of the bowl, make sure there is sucient air
circulation on all sides. Alternatively, smoke the food directly in a bowl. Make sure the two
bowls under the divider are emptied when needed. There should always be some water in the
bowl for the ashes.
PLEASE NOTE THE FOLLOWING SAFETY INFORMATION
