-7-
2
1
0
IN
50
40
30
20
10
0
M
M

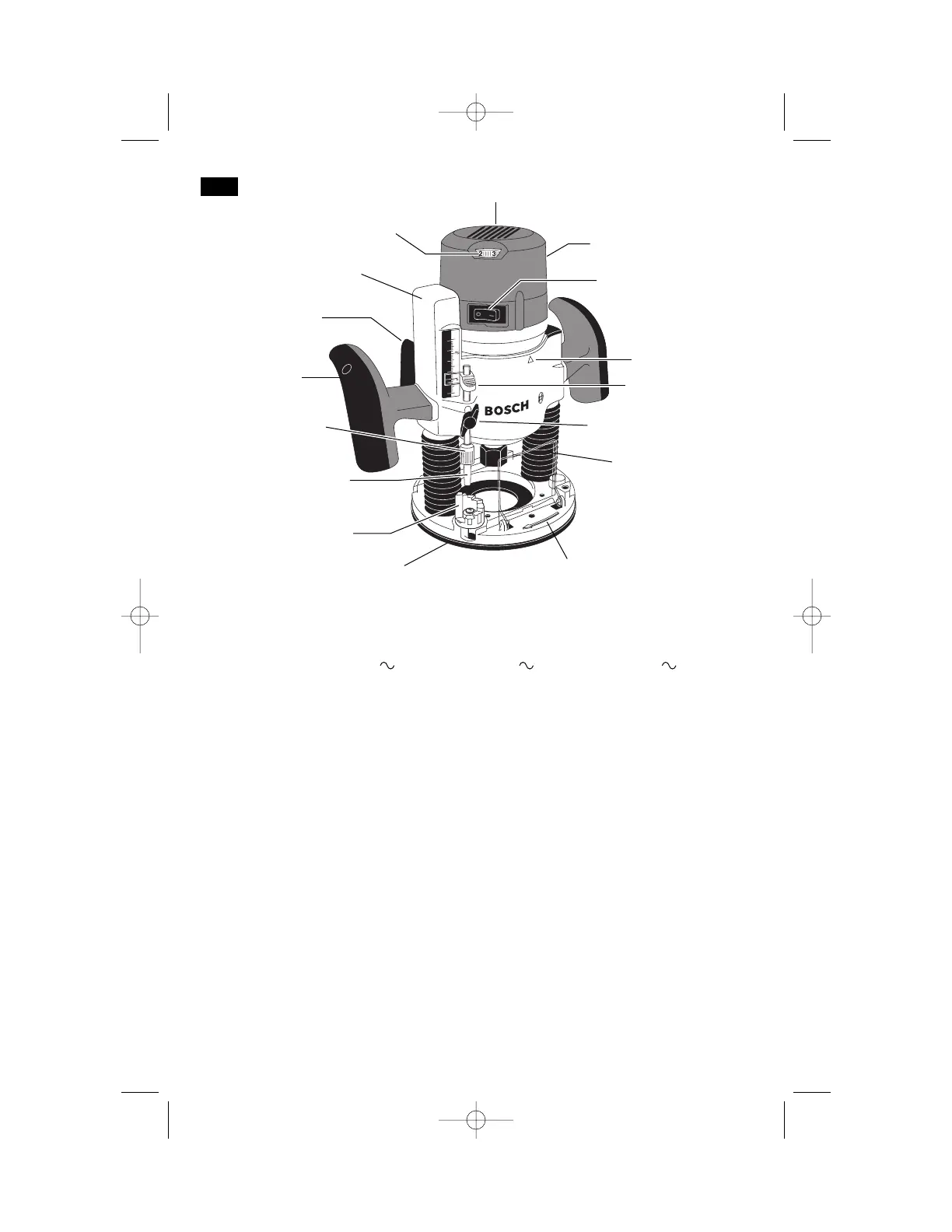

FIG. 3
SPEED CONTROL DIAL
Model 1617EVSP only
SUB-BASE
PLUNGE HANDLE
CHIP DEFLECTOR
MOTOR HOUSING
ROCKER ON\OFF SWITCH
MOTOR ALIGNMENT
ARROW
AIR VENTS
BIT ROTATION ARROW
BASE TYPE P
Model number 1617 & 1618 1617EVS & 1618EVS 0 601 617 061
Voltage rating 120V 50 - 60Hz 120V 50 - 60Hz 220V 50 - 60Hz
Amperage rating 11A 12A 6A
No load speed n
0
25,000/min n
0
8,000-25,000/min n
0
25,000/min
Collet capacities 1/4", 3/8", 1/2", 8mm 1/4”, 3/8”, 1/2”, 8mm 1/4”, 3/8”, 1/2”, 8mm
RA1160 fixed-base shop router base marked type "S" is designed for use with these router motors:
1617 router motor (16171)
1617EVS router motor (16176)
0 601 617 061 router motor (0 601 617 161)
1618 router motor (16181)
1618EVS router motor (16186)
RA1162 D-handle router base marked type "D" is designed only for use with these router motors:
1618 router motor (16181)
1618EVS router motor (16186)
RA1166 plunge router base marked type "P" is designed for use with these router motors:
1617 router motor (16171)
1617EVS router motor (16176)
0 601 617 061 router motor (0 601 617 161)
1618 router motor (16181)
1618EVS router motor (16186)
PLUNGE LOCK LEVER
DEPTH ROD
DEPTH ROD KNOB
DEPTH STOP TURRET
DEPTH INDICATOR
DEPTH ROD FINE
ADJUSMENT KNOB
BM 2610908996 5/03 5/20/03 9:06 AM Page 7

Bosch 1617EVS Specifications

General

Variable Speed	Yes
Speed Range	8, 000 - 25, 000 RPM
Voltage	120V
Type	Router
Amperage	12 Amps
Warranty	1 Year
Motor Power	2.25 HP
Collet Capacity	1/4 In., 1/2 In.
Base Type	Fixed, Plunge
