Router Table Assembly
ASSEMBLING THE FENCE

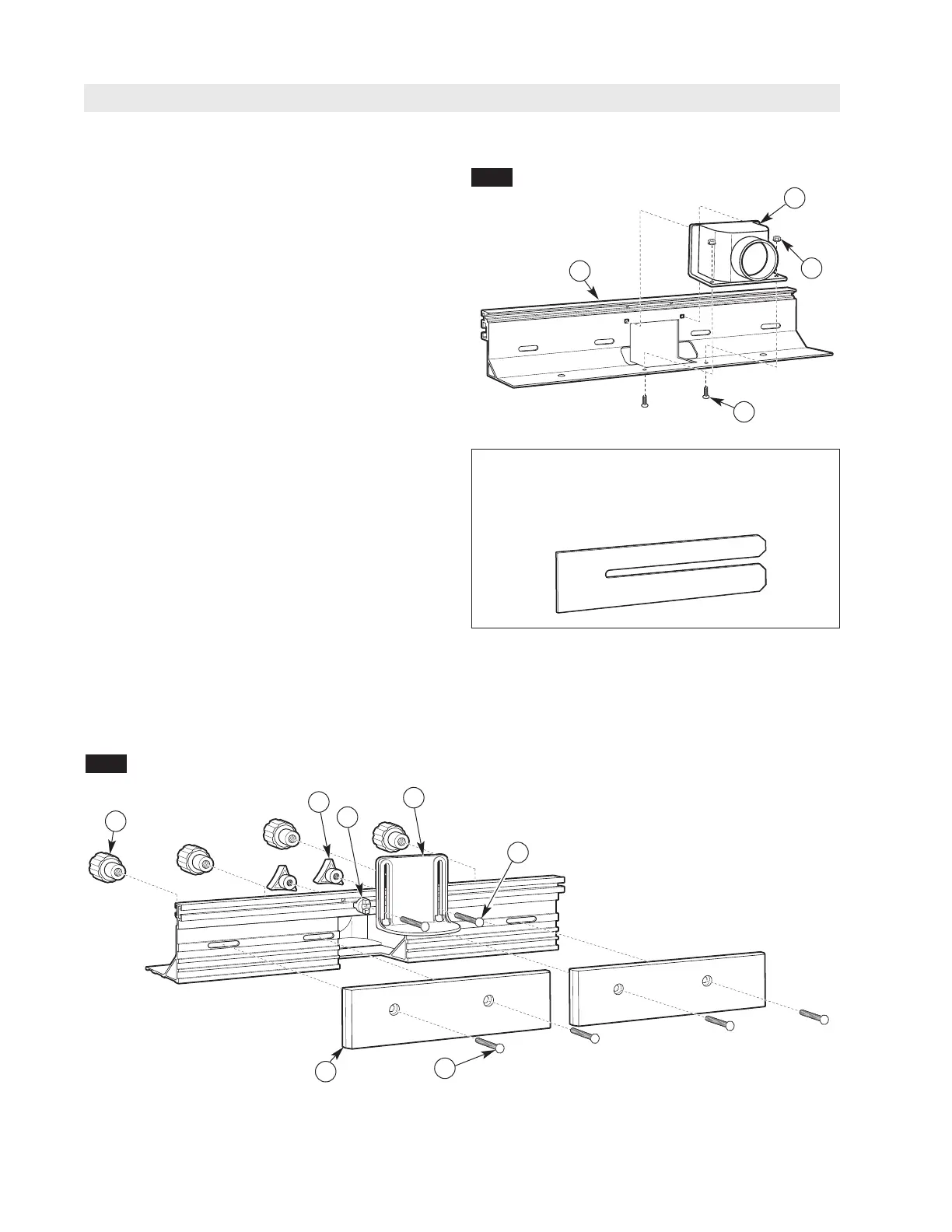

ASSEMBLING THE FENCE (Figs. 8 and 9)
1. Insert the pins molded into the top of the vacuum
port (18) into the holes on the rear of the aluminum
fence (16), as shown in Fig. 8.
2. From the underside of the fence, insert two
#10-32 x 5/8
″ countersunk machine screws (37)
up through the holes in the bottom of the fence and
vacuum port. Secure in place with two #10-32 KEPS
nuts (29) (Fig. 8).
3. Place the fence right-side up on a flat surface and
align the counterbored holes in the fence facings
(17) with the slotted holes in the fence. The counter-
bored side of the facings should face OUT (Fig. 9).
4. Attach both fence facings (17) to the front of the fence,
using two 1/4-20 x 1
″ carriage bolts (39) and two large
clamping knobs (19) for each fence facing (Fig. 9).
5. From the front of the overhead guard (20), insert two
1/4-20 x 1
1
⁄2″ carriage bolts (40) through the holes in
the guard. Slide a spacer (21) on each bolt so that the
tabs on the spacers fit into the slots on the guard
(Fig. 9).
6. From the front of the fence, insert the carriage bolts
through the holes in the top center of the fence. The
tabs on the spacers will fit into the top channel on the
fence. Secure in place with a small clamping knob (22)
on each bolt (Fig. 9).
NOTE: To simplify installation of the router adapter plate
and router, do not install the fence onto the router table
at this time.
37
29
18
16
19
21
17
NOTE: Two plastic jointing shims (23) are included
to provide the proper fence offset when jointing.
For more about jointing operations and shim
placement, see page 28.
FIG. 8
FIG. 9
22
39
40
20
