Bosch 1617EVS User Manual

25
Router Table Operation
ASSEMBLING THE FEATHERBOARDS
(Figs. 18–20)
NOTE: The top/front side of each featherboard is
marked to indicate proper feed direction.
Fence Featherboard (Figs. 18 and 19)
1. Insert two 1/4-20 x 1
1
⁄2″ carriage bolts (40)
through the slotted holes in the featherboard (24).
See Fig. 18.
2. Slide a large washer (31) onto each carriage bolt
and thread a small clamping knob (22) three or four
turns onto each carriage bolt.
3. To install on the fence, slide a spacer (21) over the
head of each carriage bolt, aligning the tabs on the
spacer with the slot in the featherboard (Fig. 19).
Then slide the carriage bolt heads into the T-slot
on the top of the fence.
4. Secure the featherboard assembly by tightening the
knobs, making sure that the tabs on the spacer are
in the slot on the fence.
Tabletop Featherboard (Fig. 20)
NOTE: The featherboard slide plate assembly is
T-shaped for use in the miter channel and has round
indentations on the bottom for the carriage bolt heads.
1. Insert two 1/4-20 x 1
1
⁄2″ carriage bolts (40) through
the holes in both the lower (25A) and upper (25B)
featherboard slide plate and the slotted holes in the
featherboard (24) as shown in Fig. 20.
2. Slide a large washer (31) onto each carriage bolt
and thread a small clamping knob (22) three or four
turns onto each carriage bolt.
3. To install the featherboard in the miter channel,
insert the featherboard slide plate into the miter
channel. Then slide the featherboard to the desired
location on the miter channel and tighten the
clamping knobs.

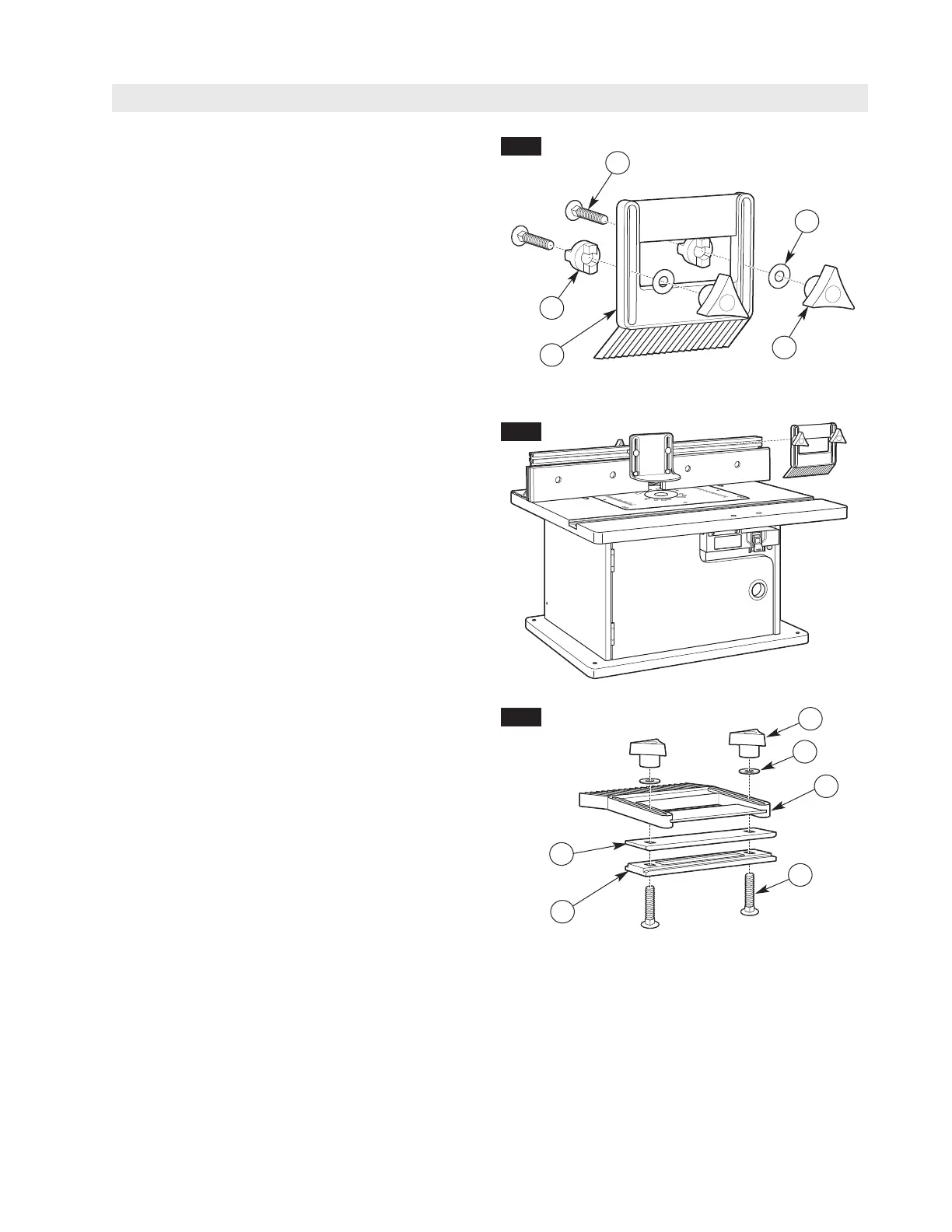

FIG. 18
FIG. 19
FIG. 20
40
21
24
22
22
40
24
25A
31
31
25B

Bosch 1617EVS Specifications

General

Variable Speed	Yes
Speed Range	8, 000 - 25, 000 RPM
Voltage	120V
Type	Router
Amperage	12 Amps
Warranty	1 Year
Motor Power	2.25 HP
Collet Capacity	1/4 In., 1/2 In.
Base Type	Fixed, Plunge
