Router Table Operation
EDGE CUTTING WITH NONPILOTED
ROUTER BITS (Figs. 26 and 27)
Disconnect the router from the
power supply before making
adjustments or changing accessories. Such
precautionary safety measures reduce the risk
of unintentional tool operation.
NOTE: If the jointing shim is installed, remove it before
proceeding.
When using nonpiloted router bits, the fence is used to
set the depth of cut. For deep cuts, do not try to cut the
total depth all in one pass. Repeat the cut, taking
multiple smaller cuts.
1. Install the desired bit in the router.
2. Follow the instructions on page 27 to set the desired
depth of cut and height of cut (Fig. 26). Make sure
that the fence and router are SECURELY in place.
3. Position both fence facings so that they clear the bit
by 1/4
″.
4. Tighten the four clamping knobs holding the fence
facings in place.
5. Position the featherboards, if desired. See
ROUTING USING FEATHERBOARDS on page 26.
6. Remove the board from the table and lower the
overhead guard to the operating position. Tighten
the guard clamping knobs SECURELY.
NOTE: When making adjustments, use a piece of
scrap wood to make trial cuts before making the cut
with the actual workpiece.
7. Make sure that both the router and switch box are
OFF; then plug the router into the switch box.
8. While firmly holding a piece of scrap wood against
the fence and down against the router table, feed a
piece of scrap wood toward the bit in the direction
shown by the arrow in Fig. 27.
9. Using the switch box, turn the router OFF. If any
adjustments are needed, unplug the power cord
and repeat steps 2–8 until all adjustments are
correct. Once you are satisfied with all settings,
make the cut with the actual workpiece.
WORKPIECE
FENCE
FACING
ROUTER BIT
DEPTH OF CUT
HEIGHT
OF CUT
Guard not shown for clarity

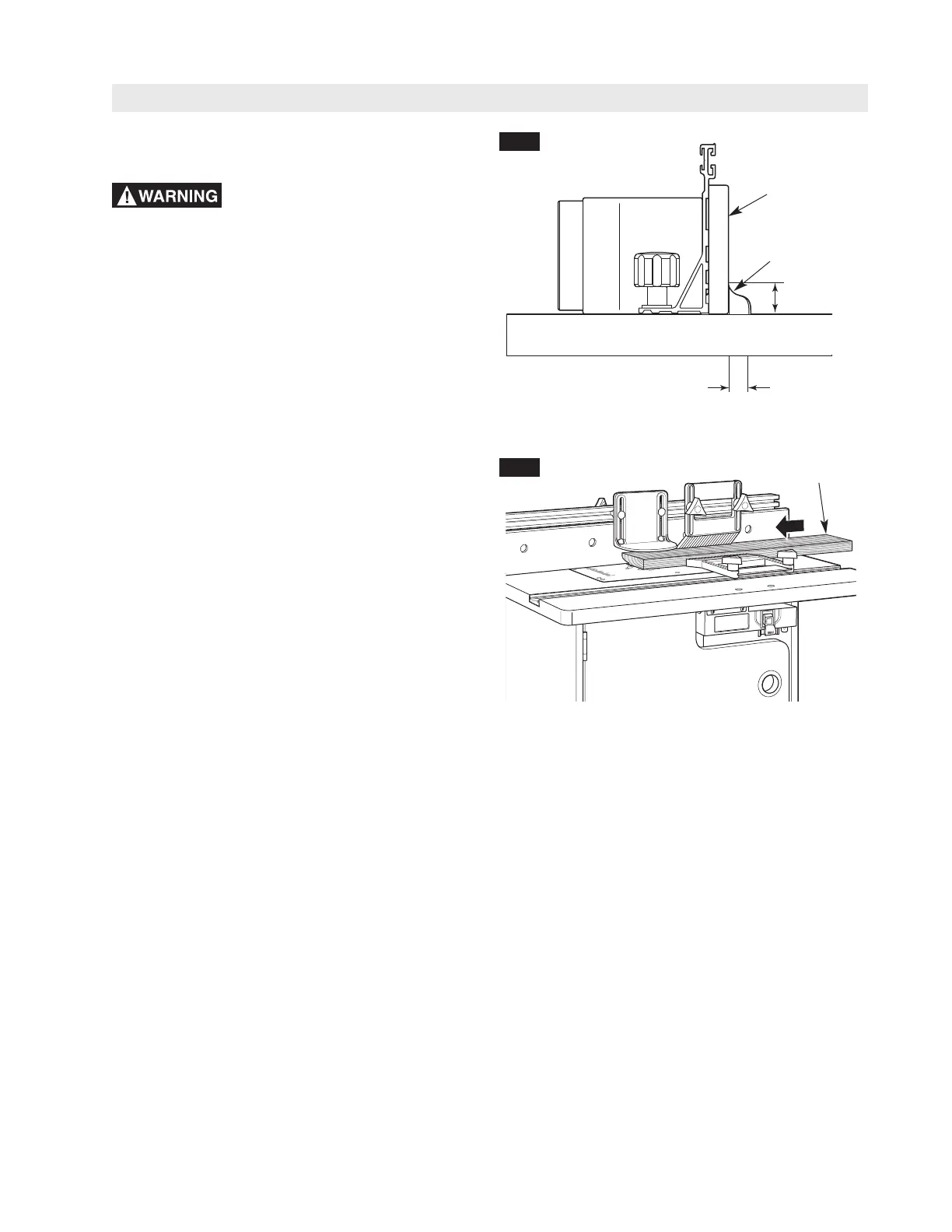

FIG. 26
FIG. 27
