5
An extension cord with adequate
size conductors that is capable of
carrying the current for your tool must be used.
This will prevent excessive voltage drop, loss of power,
or overheating. Grounded tools must use 3-wire
extension cords that have 3-prong plugs and
receptacles.
NOTE: The smaller the gauge number, the heav i er
the cord.
RECOMMENDED SIZES OF EXTENSION CORDS
120-VOLT ALTERNATING CURRENT TOOLS
Tool’s
Ampere
Rating
Cord Size in A.W.G.
Wire Sizes in mm
2
3-6
6-8
8-10
10-12
12-16
18 16 16 14 .75 .75 1.5 2.5
18 16 14 12 .75 1.0 2.5 4.0
18 16 14 12 .75 1.0 2.5 4.0
16 16 14 12 1.0 2.5 4.0 —
14 12 — — — — — —
25 50 100 150 15 30 60 120
Cord Length in Feet Cord Length in Meters
Capacidad
nominal en
amperes de la
herramienta
Tamaño del cordón en A.W.G.
Tamaños del cable en mm
2
3-6
6-8
8-10
10-12
12-16
18 16 16 14 0,75 0,75 1,5 2,5
18 16 14 12 0,75 1,0 2,5 4,0
18 16 14 12 0,75 1,0 2,5 4,0
16 16 14 12 1,0 2,5 4,0 —
14 12 — — — — — —
25 50 100 150 15 30 60 120
Longitud del cordón en pies Longitud del cordón en metros
Intensité
nominale
de l’outil
Longueur en pieds
Longueur en mètres
3-6
6-8
8-10
10-12
12-16
18 16 16 14 0,75 0,75 1,5 2,5
18 16 14 12 0,75 1,0 2,5 4,0
18 16 14 12 0,75 1,0 2,5 4,0
16 16 14 12 1,0 2,5 4,0 —
14 12 — — — — — —
25 50 100 150 15 30 60 120
Calibre A.W.G.
Calibre en mm
2
Important Information About Extension Cords

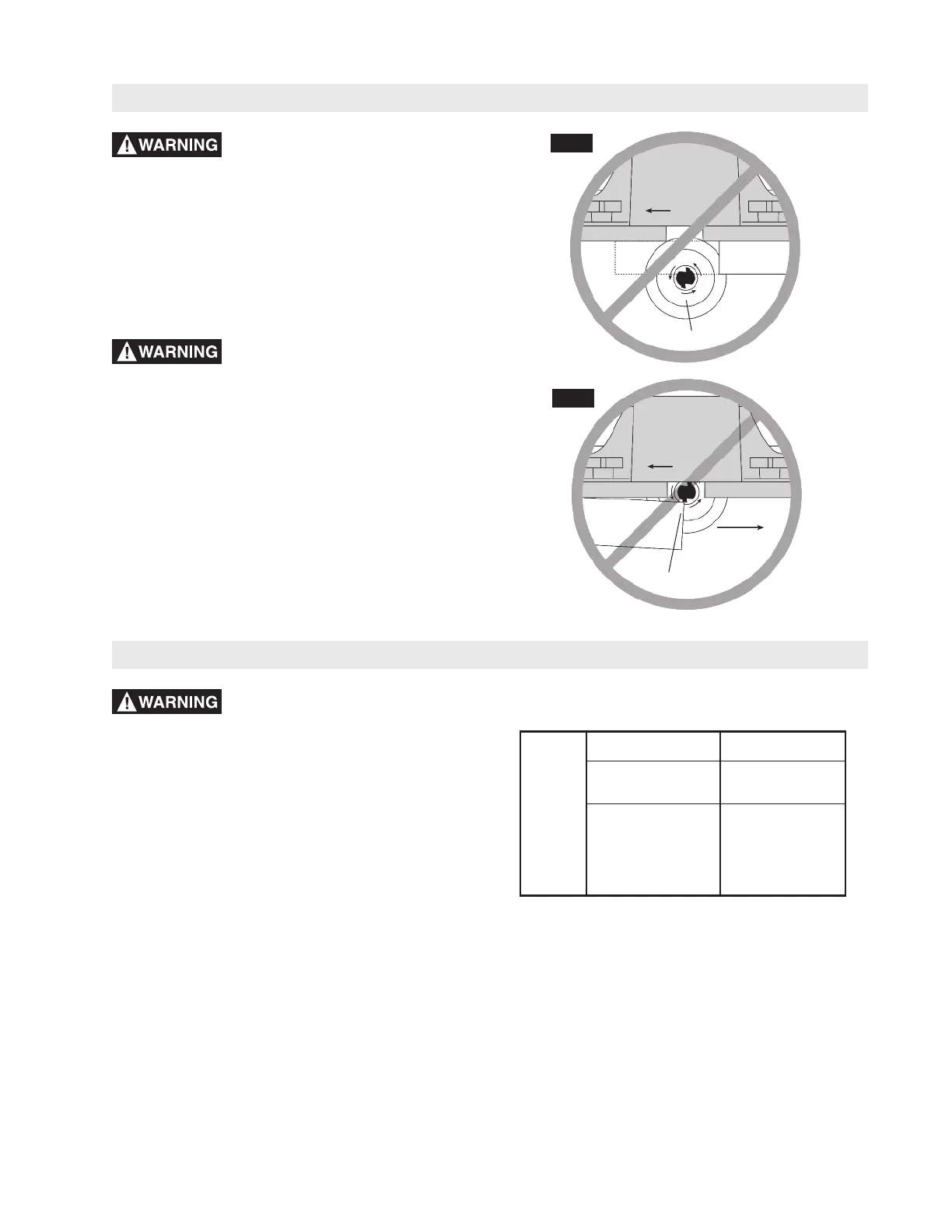

Improper Fence Location and Workpiece Feed
Do not feed the workpiece where
the majority of the workpiece is
between the fence and the bit. This creates a “fence
trap” which is dangerous for two reasons:
• The front of the bit is exposed during the cutting
operation (Fig. A).
• The bit can “Climb-cut,” where the bit enters the
w
orkpiece in the same direction as the feed direction.
This is likely to cause the workpiece to “climb” away
from the tabletop and may lead to loss of control dur-
ing operation (Fig. A).
Feed the workpiece only against
the rotation of the bit. Do not
“back feed” the work into the bit. The bit rotates
counterclockwise as viewed from the top of the table.
“Back feeding” the work is dangerous for two reasons:
• It will cause climb-cutting where the workpiece can
“climb” off the tabletop in the direction of the bit
rotation, pulling the workpiece and possibly your
hands into the rotating bit (Fig. B).
• It is difficult to keep the workpiece against the fence
face as the bit rotation will push the workpiece away
from the fence.
FIG. A
FIG. B
WORKPIECE
EXPOSED BIT
WORKPIECE
CLIMB-CUTTING
DIRECTION
OF FEED
CORRECT
DIRECTION
OF FEED
INCORRECT
DIRECTION
