9

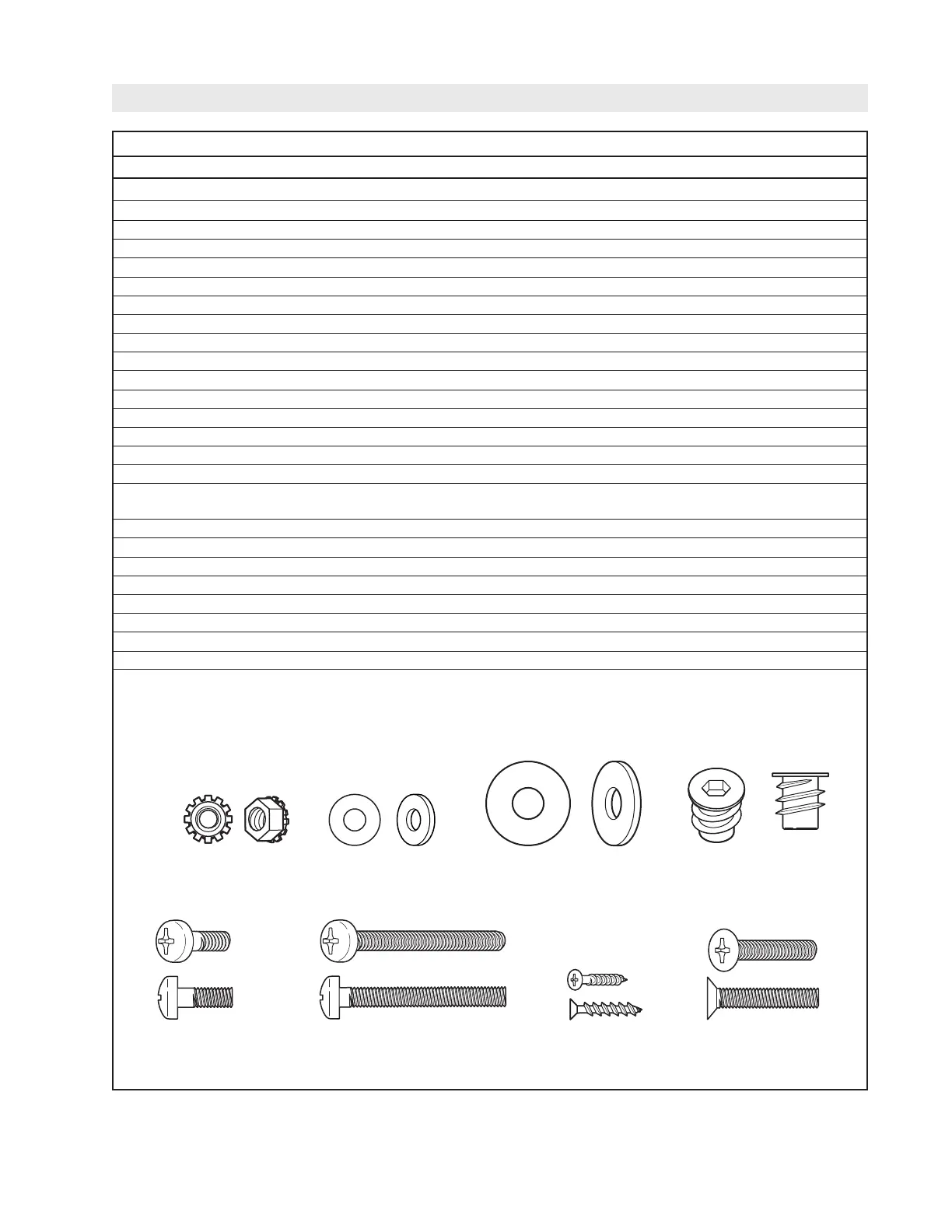

Parts List
Key No. Description Quantity
FASTENERS (FOR TABLE AND FENCE ASSEMBLY)
29 #10-32 KEPS Nut 9
30 Small Washer 5
31 Large Washer 6
32 #10-32 Threaded Insert (may be preinstalled in tabletop) 8
33 #10-32 x 1/2″ Pan-Head Phillips Machine Screw 5
34 #10-32 x 1
1
⁄2″ Pan-Head Phillips Machine Screw 2
35 5/8″ lg. Flat-Head Phillips Wood Screws † 15
36 #10-32 x 1″ Countersunk Phillips Machine Screw 3
37 #10-32 x 5/8″ Countersunk Phillips Machine Screw 2
38 Allen-Head Connector Screw 13
39 1/4-20 x 1″ Carriage Bolt 4
40 1/4-20 x 1
1
⁄2″ Carriage Bolt 6
41 1/4-20 x 1
3
⁄4″ Carriage Bolt 2
42 4mm Hex Key (Allen Wrench) 1
43 #10-32 x 1″ Pan-Head Phillips Machine Screw 4
44 #10-32 x 3/4″ Countersunk Phillips Machine Screw 4
FASTENERS (FOR MOUNTING ROUTERS)
31 Large Washer 4
45 #10-32 x 1/2″ Pan-Head Phillips Machine Screw 3
46 1/4-20 x 1
1
⁄2″ Pan-Head Phillips Machine Screw 4
47 #10-24 x 1/2″ Pan-Head Phillips Machine Screw 4
48 #8-32 x 1/2″ Pan-Head Phillips Machine Screw 3
49 1/4-20 KEPS Nut 4
50 5/16-18 x 1/2″ Pan-Head Phillips Machine Screw 3
51 M4 x 20 Pan-Head Phillips Machine Screw 3
NOTE: The hardware bag contains fasteners for several models. Some fasteners may not be used in the
assembly of this model. Refer to the parts list above for the correct sizes and quantities used with this table.
(32) #10-32 Leveling Insert
(30) Small Washer
(29) #10-32
KEPS Nut
(31) Large Washer
(36) #10-32 x 1″
Countersunk Phillips
Machine Screw
(35) 5/8″ Flat-Head
Phillips Wood Screw
(34) #10-32 x 1
1
⁄2″
Pan-Head Phillips
Machine Screw
(33) #10-32 x 1/2
″
Pan-Head Phillips
Machine Screw
†4 may be preinstalled on the hinges.
