15
Router Table Assembly
DETERMINE THE MOUNTING METHOD TO
BE USED (see chart on page 16)
If your router model is listed in the chart on page
16, proceed to step 1 below. If it is NOT listed, you
must purchase a BOSCH RA1186 Router Adapter
Plate, available separately.
If your router model is listed:
1. Determine the hole pattern that matches the
mounting hole pattern for your router.
2. Determine which fasteners you will need to attach
the router to the router adapter plate.
3. Determine which mount type (1 or 2) is used for your
router model.
SELECTING THE ROUTER HOLE PATTERN

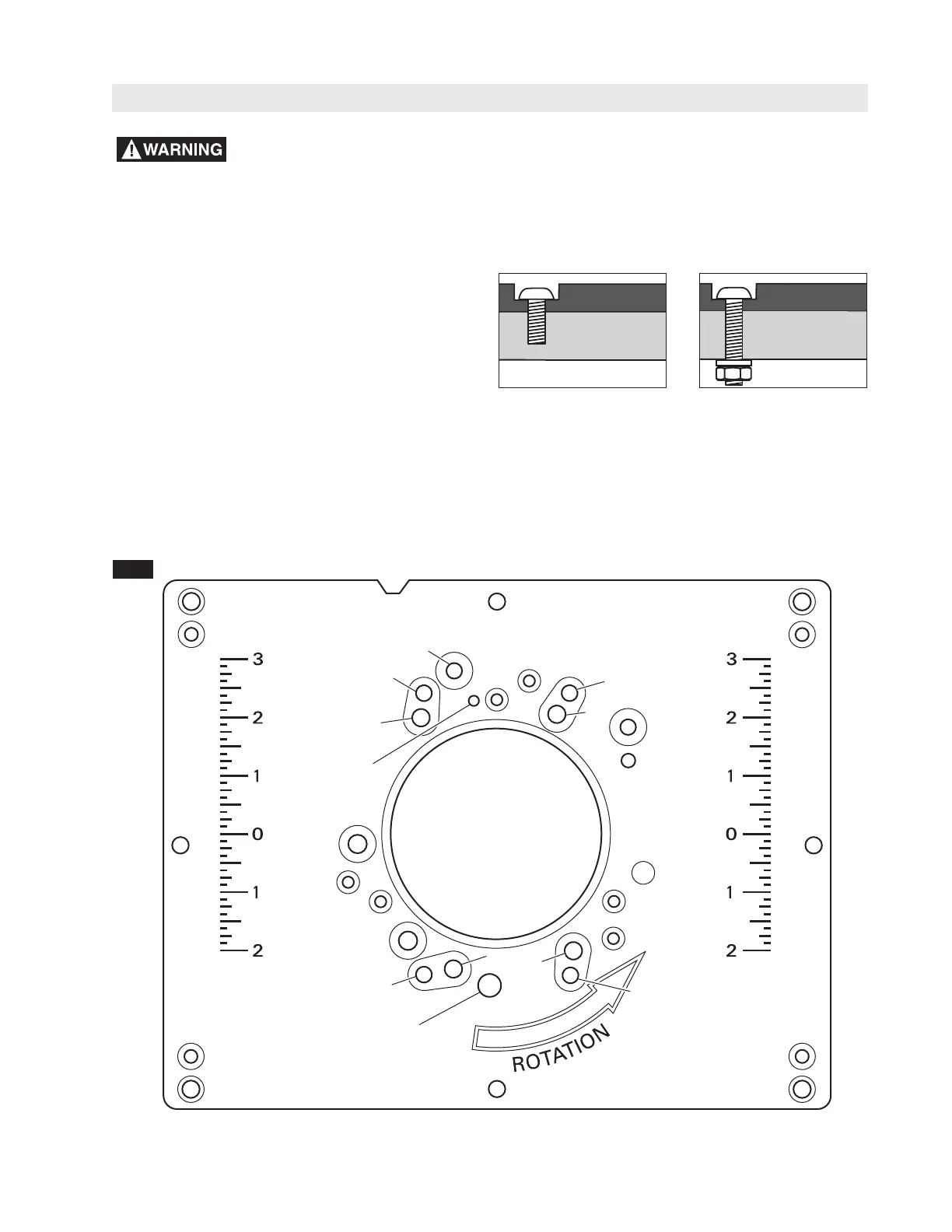

FIG. 10
MOUNTING PLATE GUIDE FOR COMPATIBLE ROUTERS (Fig. 10)
D
C
A
B
1/4-28 THREADED
HOLE FOR
STARTER PIN
E
E
B
B
D
D
C
A
C
C
10-32 THREADED
HOLE FOR STARTER
PIN GUARD
OVER-TABLE
ADJUSTMENT HOLE
MOUNT TYPE 1
MOUNT TYPE 2
MOUNTING PLATE
ROUTER BASE
MOUNTING PLATE
ROUTER BASE
Before using the router table, verify that the router is securely clamped to the router table
base. While working, periodically check the router base fasteners clamping tightness.
Router motor vibration can loosen fasteners during use, causing the router to fall from the table.
E
F
TOP FRONT OF PLATE
F
A
