,/5@>?809?>:=.3,92492 ,..0>>:=40>. Such preventive safety measures
reduce the risk of starting the tool accidentally.
!
WARNING
:=/70>>8;,.?(=09.30>

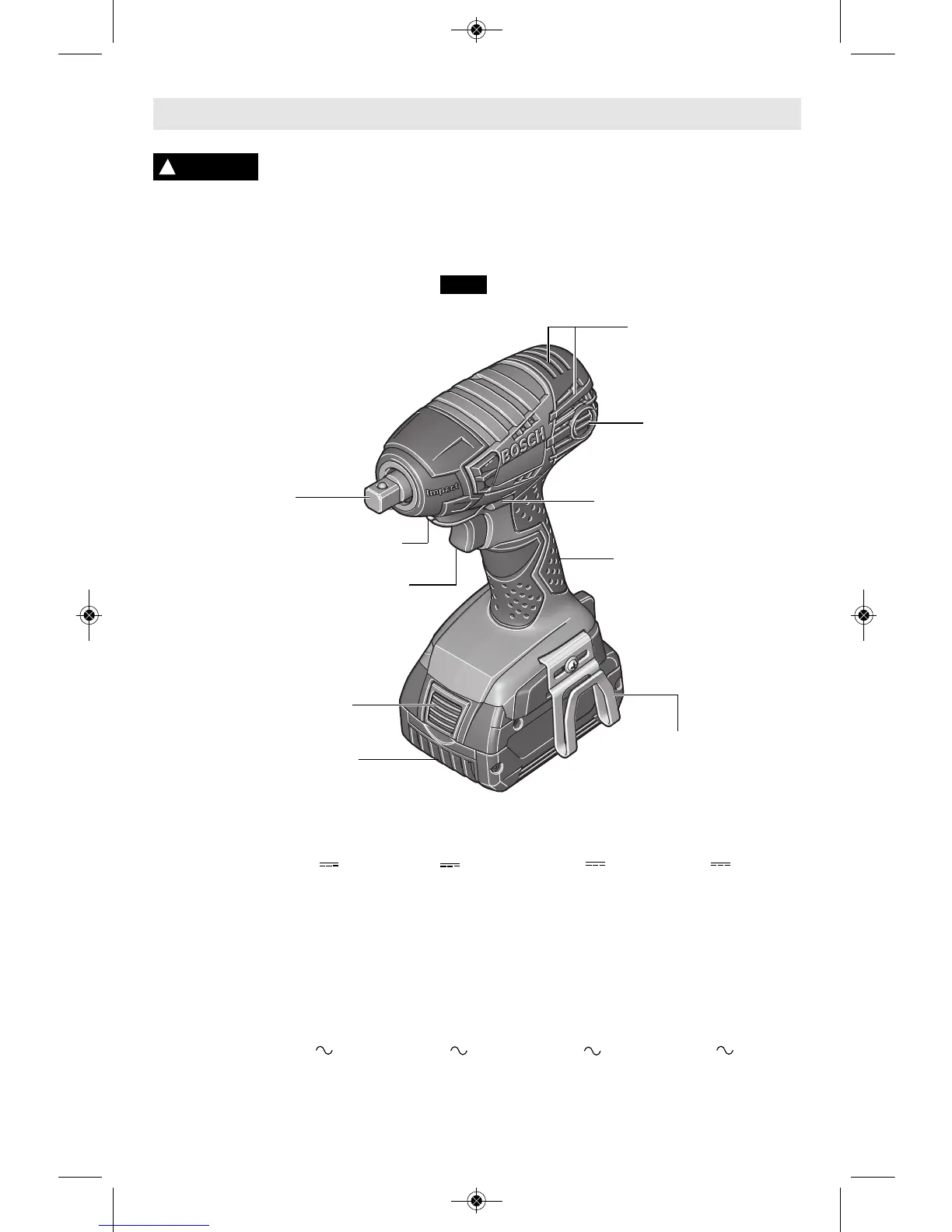

FIG. 1a
VENTILATION
OPENINGS
BRUSH COVER
FORWARD/REVERSING
LEVER & TRIGGER LOCK
VARIABLE SPEED
TRIGGER SWITCH
BATTERY PACK
RELEASE BUTTON
BATTERY PACK
BELT CLIP
(Optional Accessory)
RUBBERIZED GRIP
BUILT IN WORK LIGHT
OUTPUT DRIVE
NOTE: For tool specifications refer to the nameplate on your tool.
Model number 24614 24618 IWH141 IWH181
Voltage rating 14.4 V 18 V 14.4V 18 V
No load speed n
0
0-2,800/min n
0
0-2,800/min n
0
0-2,800/min n
0
0-2,800/min
Impact rate 0-3,200 0-3,200 0-3,200 0-3,200
Maximum torque 1,400 in-lbs 1,600 in-lbs 1,400 in-lbs 1,500 in-lbs
Maximum Capacities
Output drive 1/2" Square drive 1/2" Square drive 3/8" Square drive 3/8" Square drive
Battery pack BAT607 & BAT614 BAT609 & BAT618 BAT607 & BAT614 BAT609 & BAT618
BAT607G & BAT614G BAT609G & BAT618G BAT607G & BAT614G BAT609G & BAT618G
Charger BC630 & BC660 BC630 & BC660 BC630 & BC660 BC630 & BC660
Voltage rating 120 V 60 Hz 120 V 60 Hz 120 V 60 Hz 120 V 60 Hz
