Bosch 24614 - Functional Description and Specifications

-8-
@9.?4:9,70>.=4;?4:9,9/$;0.414.,?4:9>
4>.:990.? -,??0=D ;,.6 1=:8 ?::7 -01:=0 8,6492 ,9D ,>>08-7D
,/5@>?809?>:=.3,92492 ,..0>>:=40>. Such preventive safety measures
reduce the risk of starting the tool accidentally.
!
WARNING
NOTE: For tool specifications refer to the nameplate on your tool.
:=/70>>8;,.?=4A0=>
Model number 25614 25618
Voltage rating 14.4V 18 V
No load speed n
0
0-2,800/min n
0
0-2,800/min
Impact rate 0-3,200 0-3,200
Maximum torque 1,400 in-lbs 1,500 in-lbs
Maximum Capacities
Chuck size 1/4" Hex-shank with power groove 1/4" Hex-shank with power groove
Battery pack BAT607 & BAT614 BAT609 & BAT618
BAT607G & BAT614G BAT609G & BAT618G
Charger BC630 & BC660 BC630 & BC660
Voltage rating 120 V 60 Hz 120 V 60 Hz

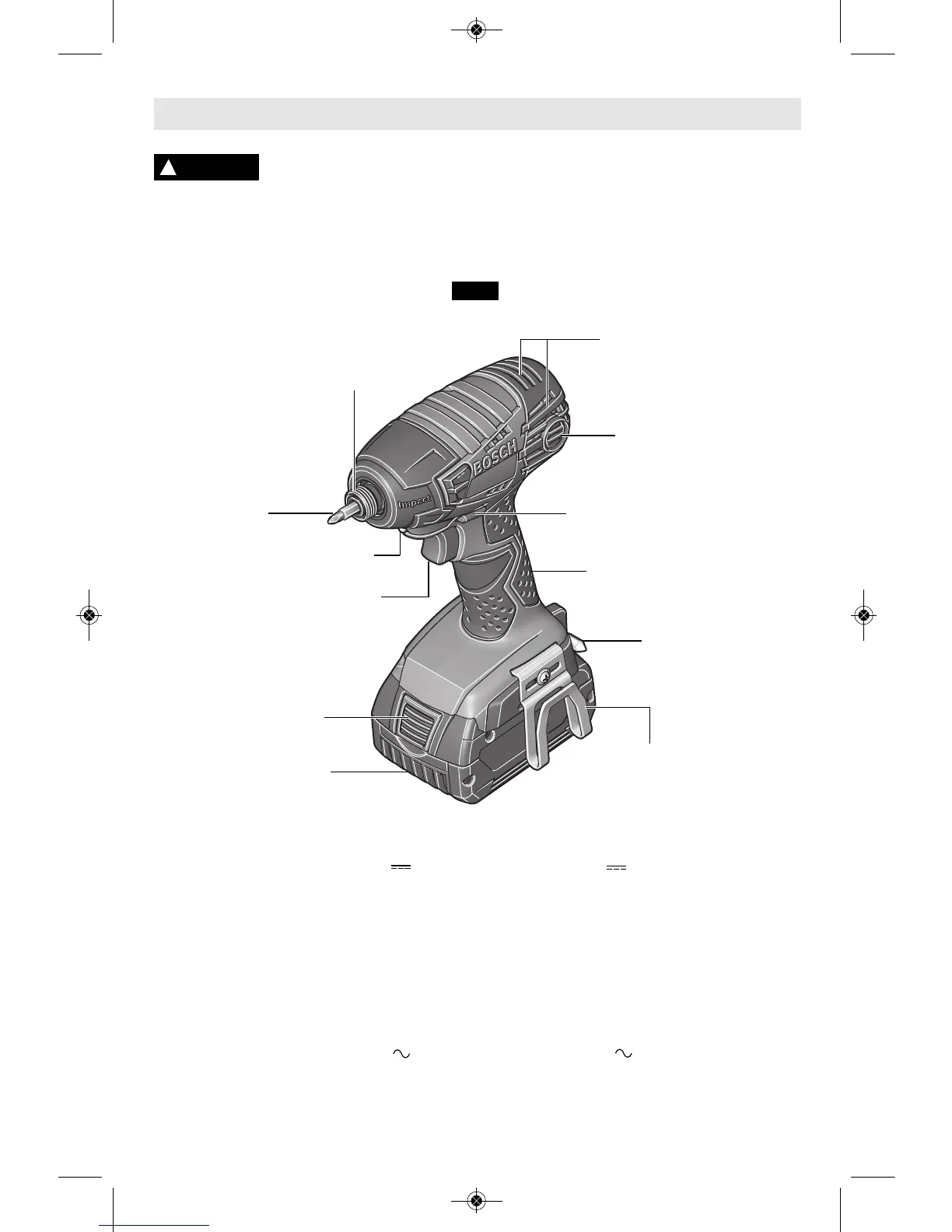

FIG. 1
LOCKING
SLEEVE
VENTILATION
OPENINGS
BRUSH COVER
FORWARD/REVERSING
LEVER & TRIGGER LOCK
VARIABLE SPEED
TRIGGER SWITCH
BATTERY PACK
RELEASE BUTTON
BATTERY PACK
BELT CLIP
(Optional Accessory)
BIT AND BIT
STORAGE AREA
(Models 25614 &
25618 only)
RUBBERIZED GRIP
BUILT IN WORK LIGHT
BIT
